Qpix T2

Qpix T2 - QATM (do roku 2019 QNESS) SOFTWARE

- Přístroj - specifický software
- Moderní a konzistentní softwarový design
- Velký 12" dotykový optimalizovaný uživatelský prostor
- Plně automatizované vyhodnocení obrazu

BROŽURY, VIDEA

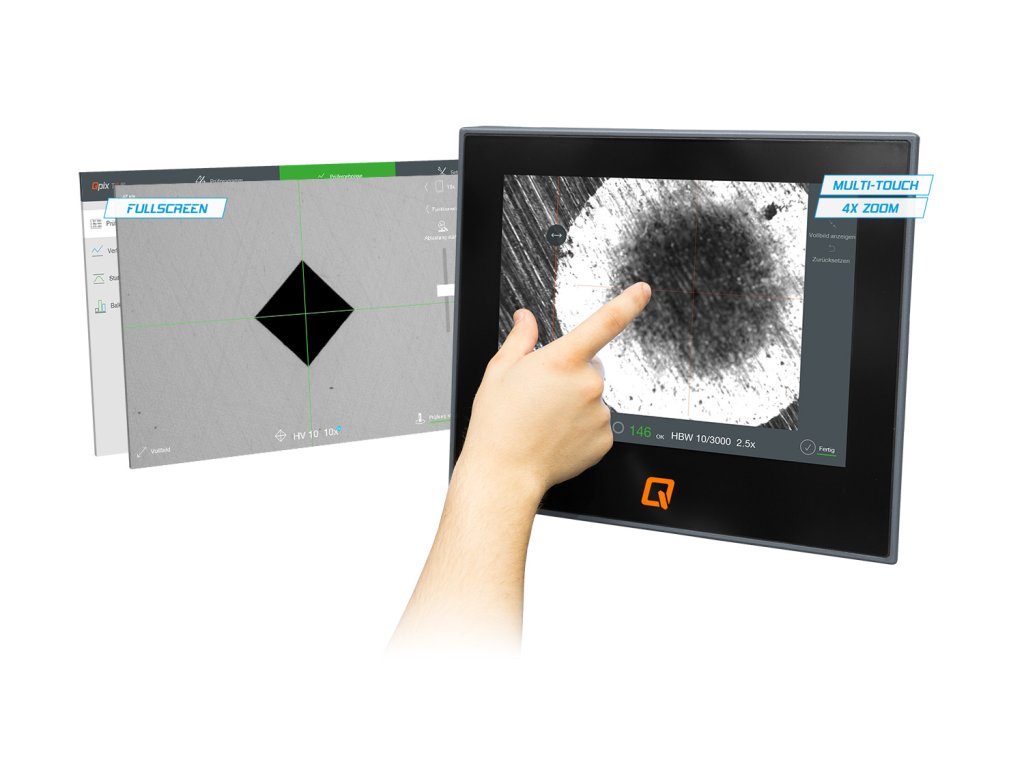

FULL SCREEN MODE

A clear overview of all the most important functions on one screen guarantees user-friendliness and, most importantly, ensures test results are clearly prioritized.

MULTI-TOCH CAPACITY FOR ULTRA-SIMPLE OPERATION

Modern multi-touch operation for simple zooming and easy menu navigation

suitable for: Q10/30/60 M, Q250/750/3000 C/CS, Q250/750/3000 M/MS/E, Q150 R (Qpix T2R)

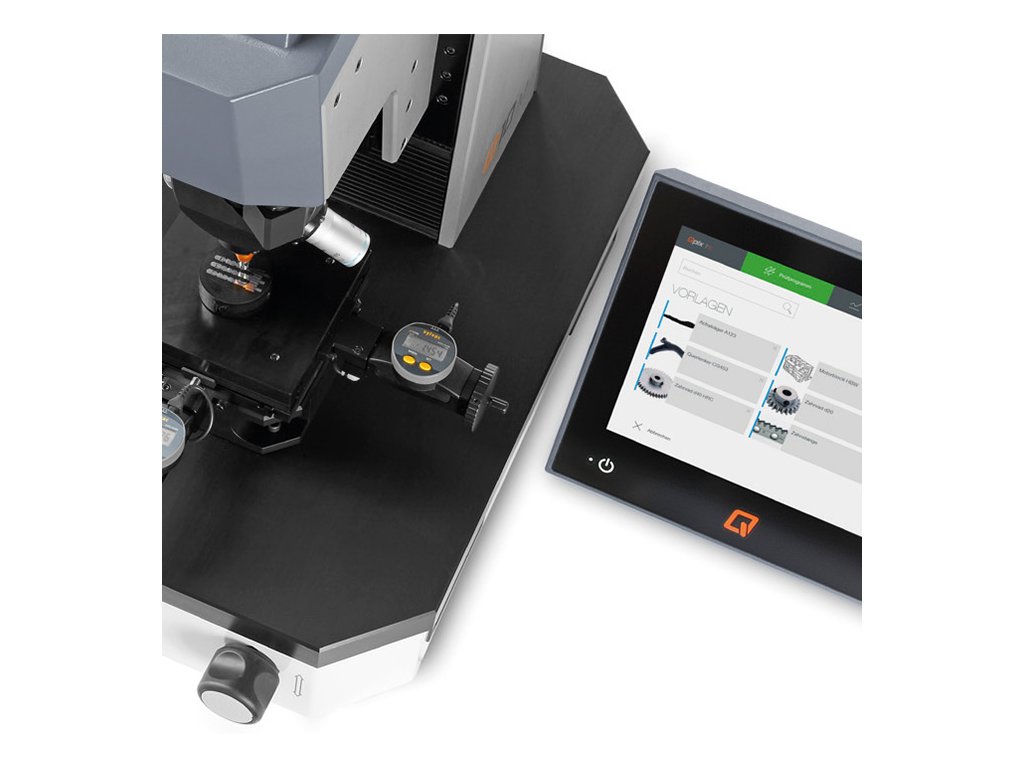

ROW TEST SEQUENCE

Predefinition of test programmes with a fixed number of test points. Can also be selected with manual slide, digital micrometre spindle and position-feedback

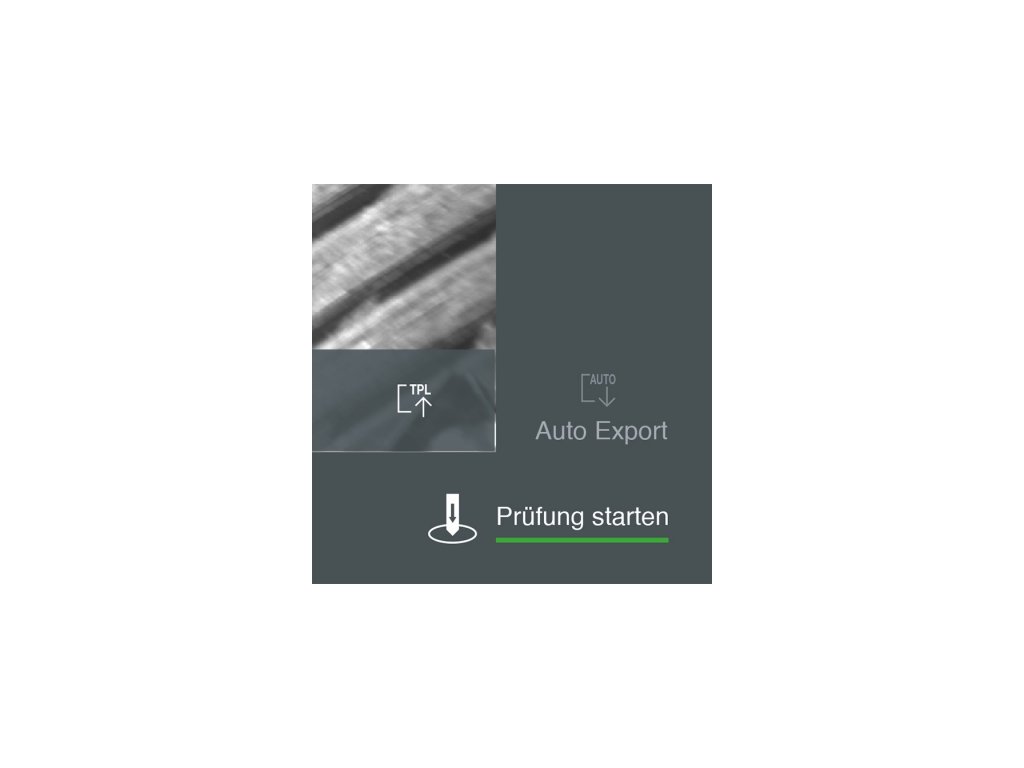

SAVE, DELETE & EXPORT FUNCTIONS

Save, create protocols and archive data at the click of one single button. Ideal for serial tests or in-line integration.

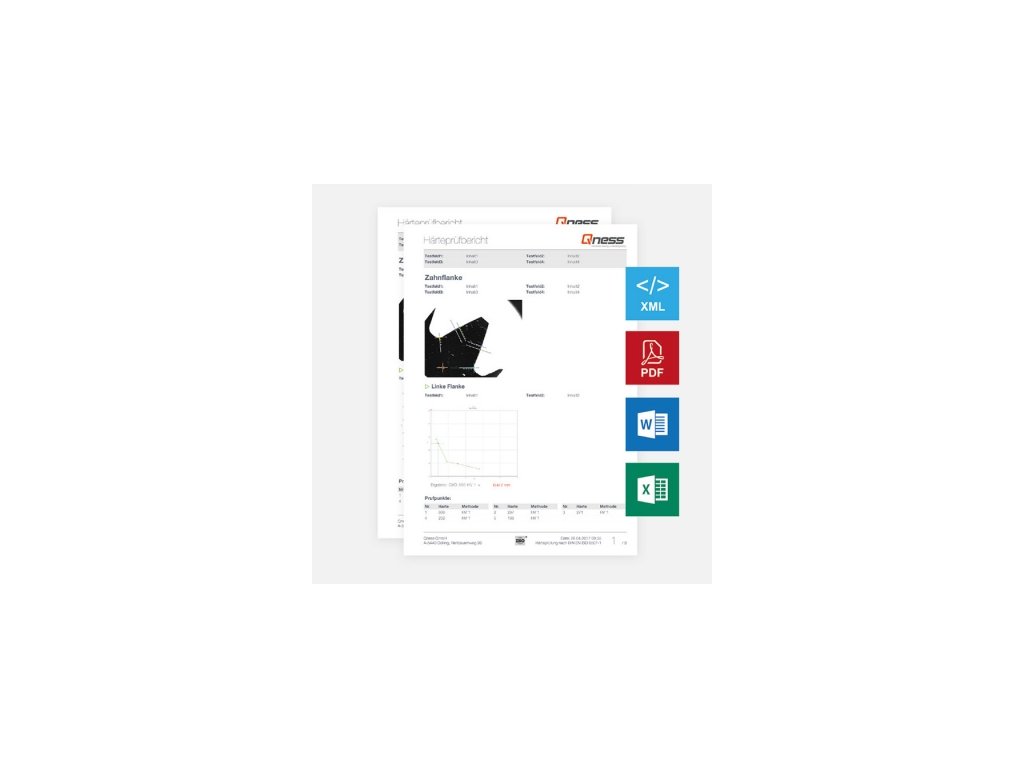

PROTOCOL AND DATA EXPORT

Export formats also in Qpix T2 PDF, XLSX, DOCX, XML or CSV, plus direct release of results via RS232 or Ethernet interface.

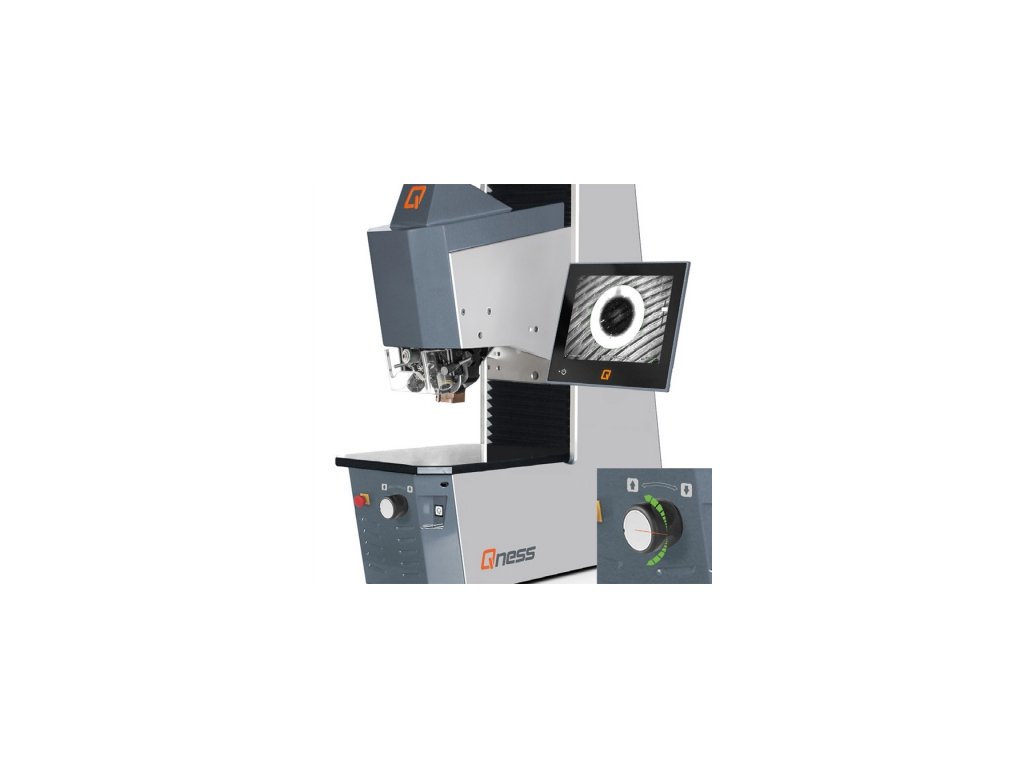

DYNAMIC HEIGHT ADJUSTMENT

Qpix T2 provides dynamic height adjustment, enabling quick and precise positioning with the Q250/750/3000E. Once clamping has been completed, the automatic test start and freely selectable release options increase ease of operation.
