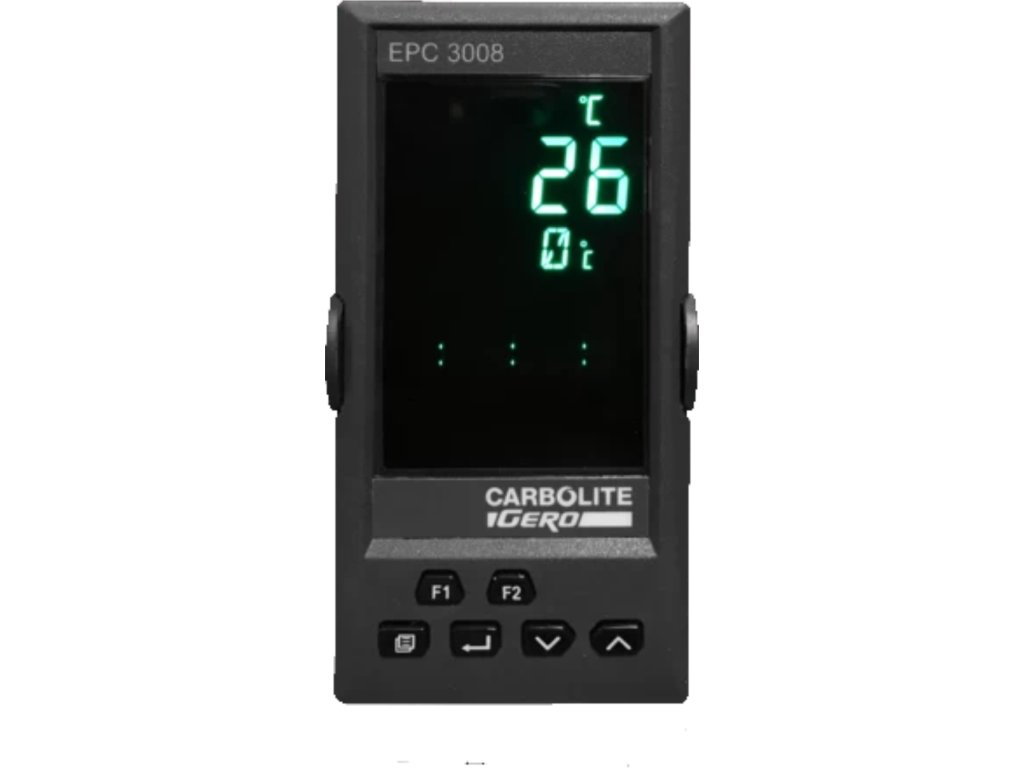

EPC3008P10 Teplotní regulátor



EPC3008P10 Teplotní regulátor

This controller offers programmable control in which 24 segments may be set as ramp, step or dwell and may also be configured to control relays. Ethernet communication is fitted as standard. The EPC3008P10 provides a comprehensive information display. If precise temperature control is required over a wide range of temperatures, the EPC3008P10 allows the use of multiple PID terms (gain scheduling). This feature is not enabled as standard, but can be activated on request. The EPC3008P10 can also store and retrieve 10 programs.

CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Cena dle konfigurace na dotaz
Kód produktu EPC3008P10
Značka Carbolite Gero
Kategorie Laboratorní a průmyslové pece


EPC3008P10 Teplotní regulátor

This controller offers programmable control in which 24 segments may be set as ramp, step or dwell and may also be configured to control relays. Ethernet communication is fitted as standard. The EPC3008P10 provides a comprehensive information display. If precise temperature control is required over a wide range of temperatures, the EPC3008P10 allows the use of multiple PID terms (gain scheduling). This feature is not enabled as standard, but can be activated on request. The EPC3008P10 can also store and retrieve 10 programs.


POPIS (STANDARDNÍ VÝBAVA)

  • 10 program with 24 segments
  • Ramp, dwell, step, call, end segments
  • 3 x relays
  • Ethernet communication fitted
  • certified for cybersecurity communications robustness

TECHNICKÉ ÚDAJE

FURNACE CONTROL
Number of programs 10
Number of segments per program 24
Relay operated options (eg. solenoid valve, cooling fan, door lock, etc.) max. 3
Kaskádová kontrola volitelné
Auto tune ano
USER INTERFACE
Screen Resolution 4.5 digits + 5 character, 16 segment text + 16 segment scrolling text
Screen size (inch) 2.5"
Rozhraní 4 Buttons
Start time configurable -
Real-time clock with calendar -
Data logging of process data with USB-flash drive -
Data logging to secure file -
Programming and data logging software volitelné
User levels ano
Program names displayed Program number
Choice of languages 5
Komunikační rozhraní
Ethernet communication connection ano
Certified for cybersecurity communication robustness ano
USB connection (for data export) -
