FRETTING TESTERY

FRETTING TESTERY - řada FFT


Zkoušky koroze třením

  • Koroze třením
  • Vysokofrekvenční korozní tření
  • Tření a opotřebení

FFT_rtec_Metalco_testing icon-temperature

Variety of Fretting Wear Testers For Nano, Micro and Macro Range Testing.

BROCHURE


Choose Your Fretting Tester Model



Difference in Voice Coil Power For Friction Force

All Rtec Fretting testers are constructed on flexure based designs. The motion is imparted using electromagnetic actuators with real time stroke and wave form correction controllers. The difference in model lies in the power the coil can impart during the test.



Fretting tester bench top from Rtec instruments model FFT-m Fretting tester from Rtec instruments model FFT-1 Fretting tester from Rtec instruments model FFT-2

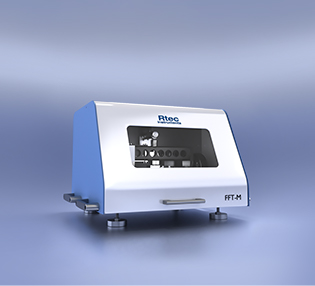

FFT-M Series

FFT-1

FFT-2

Up to 500 N Down Force (Bench Top, Single or Dual Medium Power Coil)

3000 N Down Force (Floor Standing, Single High Power Coil)

5000 N Down Force (Floor Standing, Dual High Power Coil)








Data and Analysis



FFT series fretting wear testing instruments are optimize for friction, wear, and fretting fatigue tests at small amplitude and high frequency.

fretting loops generated during test on fretting tester Fretting tester data showing real time friction Fretting test wear mark

Fretting Loops

Real Time Friction Curves at 300 Hz, 3000 N

Fretting Failure Marks

Rigid design with accurate real-time friction force allows the measure of fretting loops at different temperatures, and loads.

The graph shows real-time friction data at 300 Hz, 2300 N test on dry material fretting test.

Rtec 3D profilometer allows to create 3D images of surfaces with ease.
