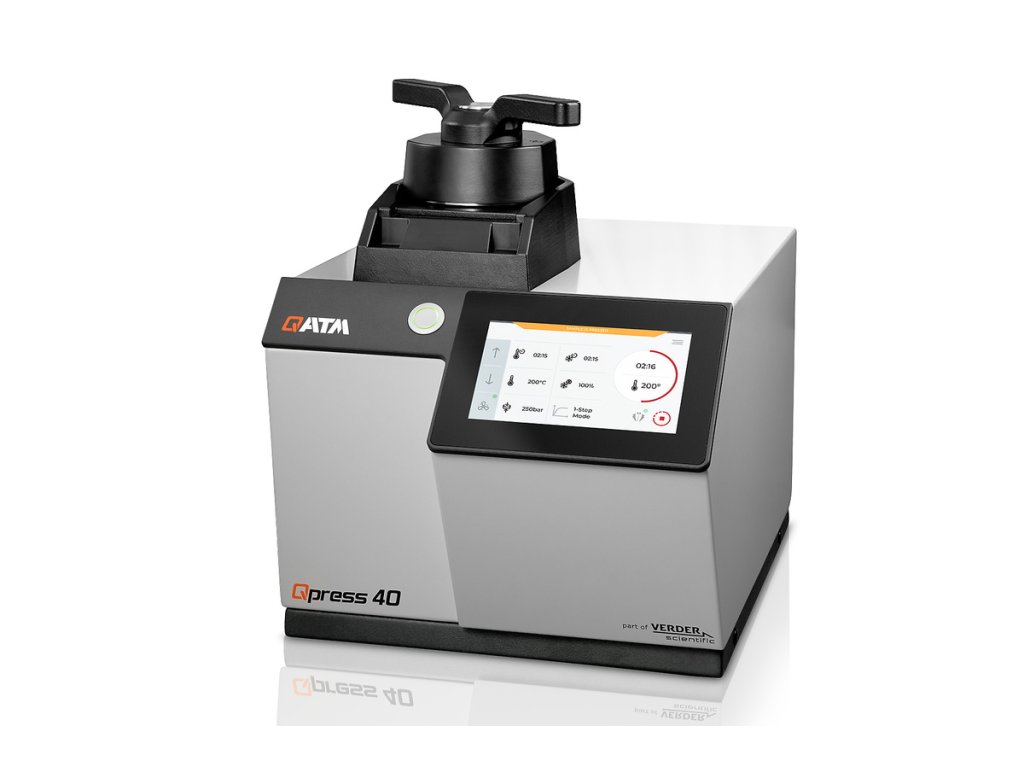

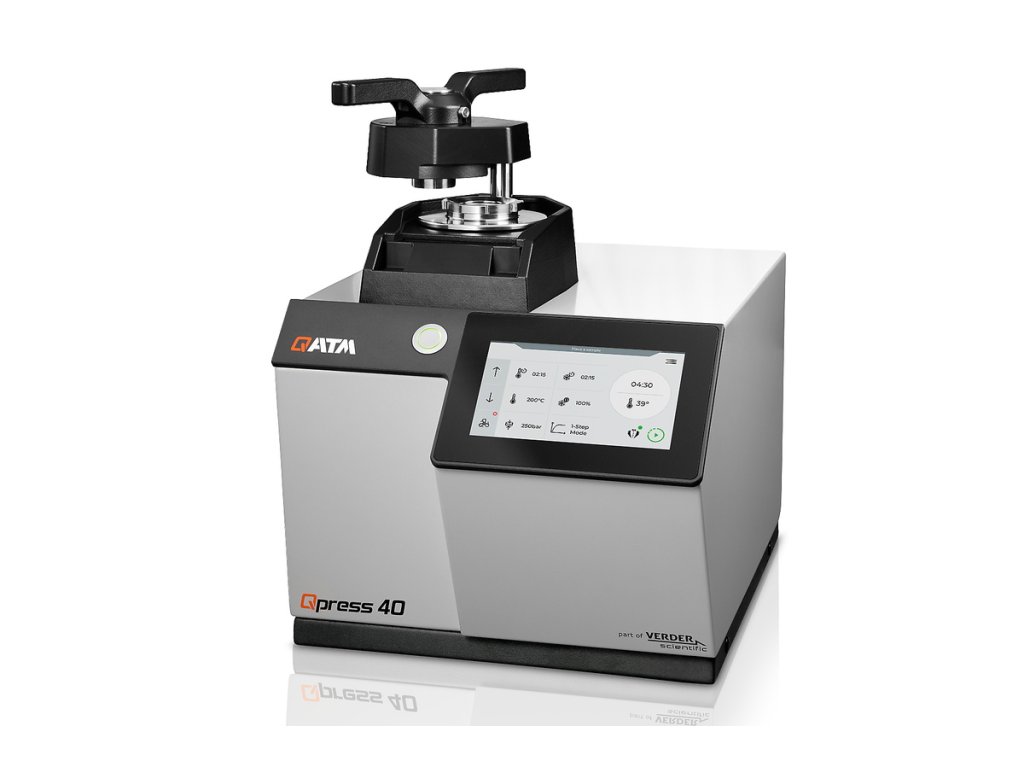

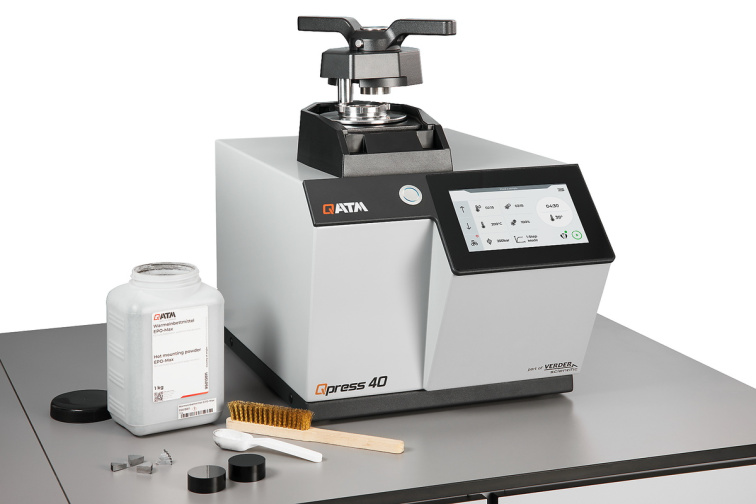

Qpress 40 - automatický metalografický lis



OPAL 410 - automatický metalografický lis - ∅ 25 - 40mm



Automatický metalografický lis Opal 410 kombinuje špičkové zpracování a spolehlivý elektro-hydraulický systém s robustní spolehlivostí, kterou QATM (do 2019 ATM) zdokonaluje již 30 let vyvíjením hydraulických lisů. Vyniká velmi snadným ovládáním, automatickým chlazením s funkcí pro úsporu vody.

Jednoduché ovládací rozhraní nabízí snadnou kontrolu nad  pěti lisovacími režimy. Silný bajonetový uzávěr z nerezové oceli je odolný proti zatuhnutí i při zpracovávání velkého množství vzorků



CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Dostupnost produktu na dotaz
Kód produktu QPRESS40
Značka QATM
Kategorie Metalografické lisy
Položka byla vyprodána...


Qpress 40 - automatický metalografický lis - ∅ 25 - 40mm

K DISPOZICI OD DUBNA 2025

RYCHLEJŠÍ NEŽ KDYKOLI PŘEDTÍM

Díky výkonné technologii ohřevu/chlazení a regulaci teploty s optimalizovanou rychlostí se výrazně zkracuje doba zalévání. Robustní bajonetový uzávěr, volitelné jednoduché ovládání jedním tlačítkem a přehledné zobrazení parametrů na 7" průmyslovém dotykovém displeji zajišťují pohodlné a intuitivní používání. Připojitelný patentovaný systém odsávání nastavuje nové standardy bezpečnosti práce pro uživatele.

VÝHODY PRODUKTU

  • Krátká doba vkládání (úspora času až 35 %).
  • Robustní bajonetový rychloupínací uzávěr.
  • 7" dotykový displej s inovativním ovládacím softwarem a volitelným ovládáním jedním tlačítkem.
  • Ochrana proti prachu: odsávání prachu z granulí během plnění (patentováno).
  • Kompaktní a vysoce kvalitní design s kovovým krytem s práškovou povrchovou úpravou.
  • Vysoká propustnost vzorků díky dvojitému vkládání.

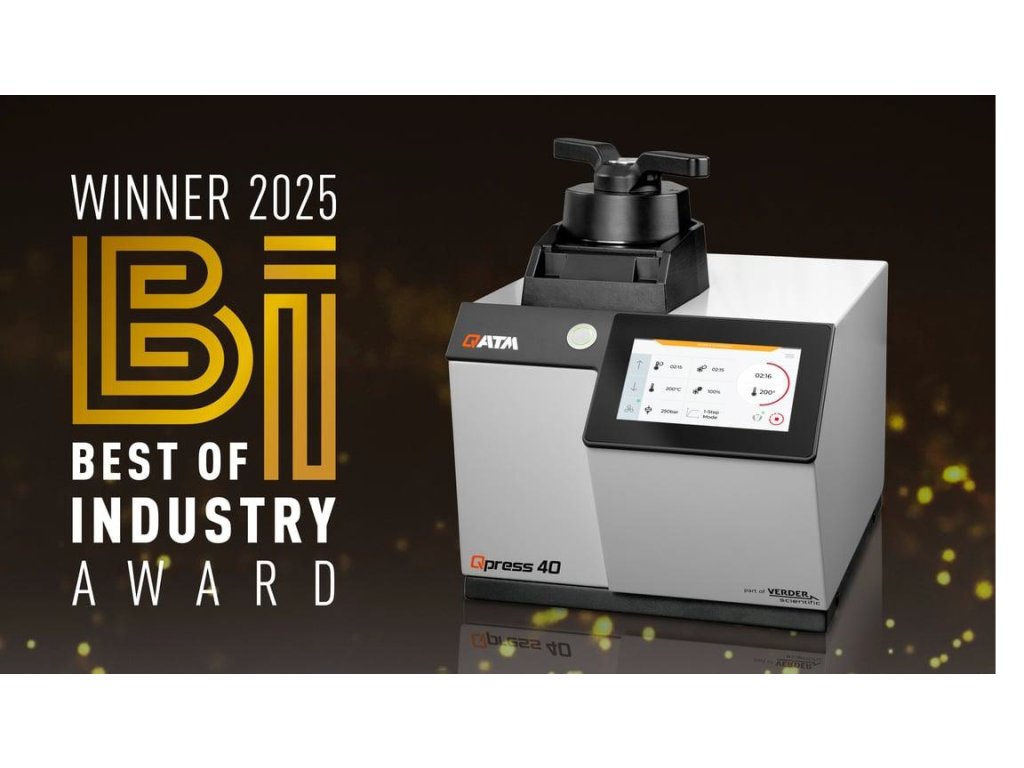

HOT MOUNTING PRESS QPRESS 40 EXPERIENCE THE 3D MODEL IN THE REAL WORLD!

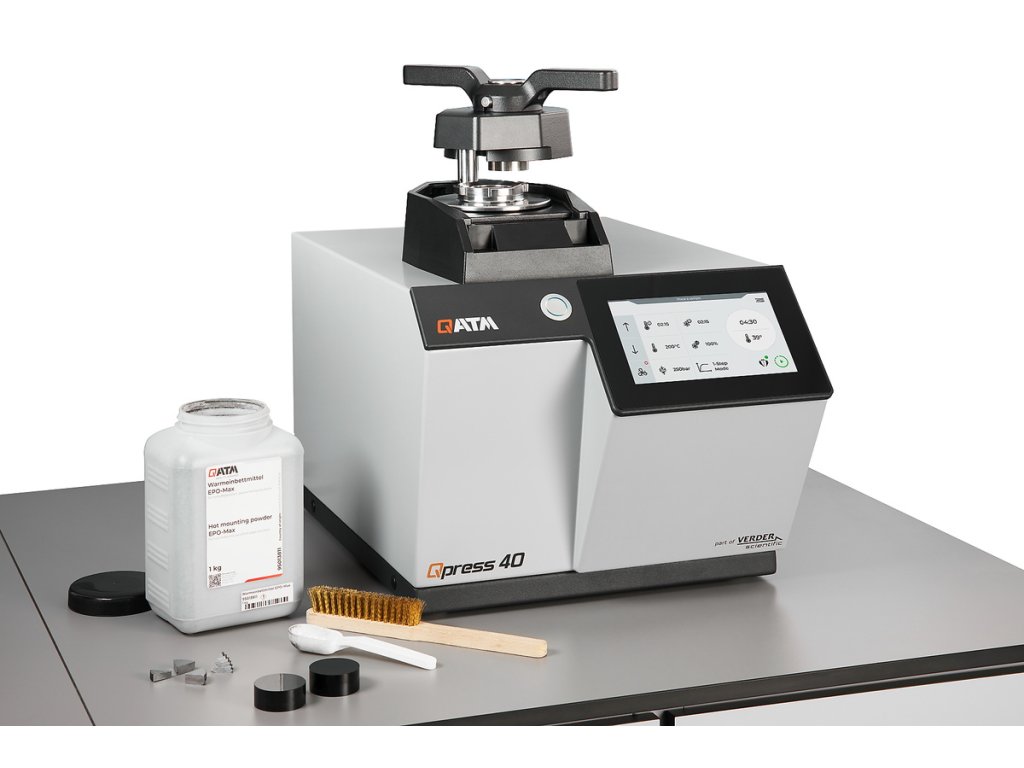

HOT MOUNTING PRESS QPRESS 40 FEATURES

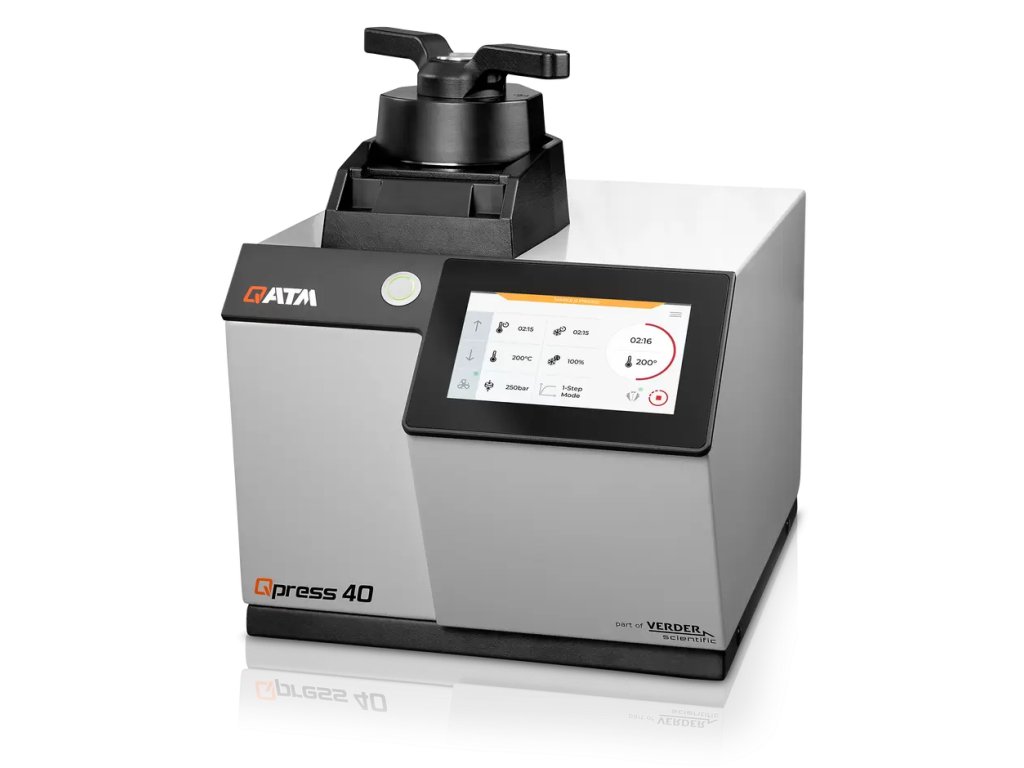

Qpress 40 - automatický metalografický lis

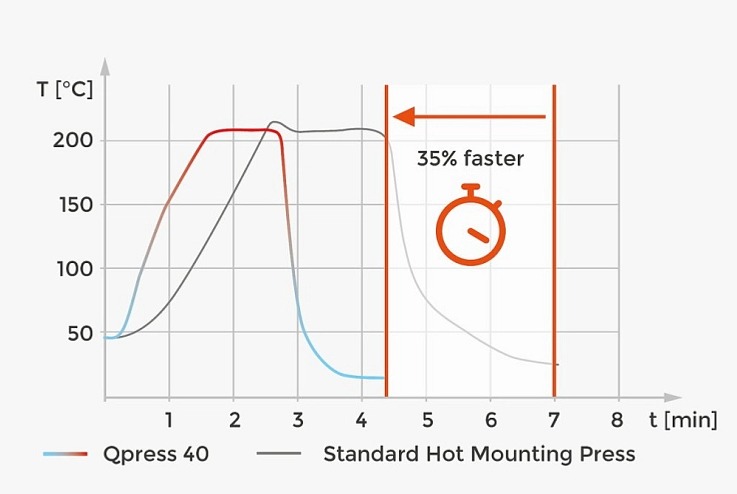

Speed-optimized heating and cooling technology

Shorter mounting times are achieved by:

  • Optimized heat transfer between heating elements and mould
  • Fast temperature control to precisely reach the target temperature
  • Preheating function to shorten the heat-up time

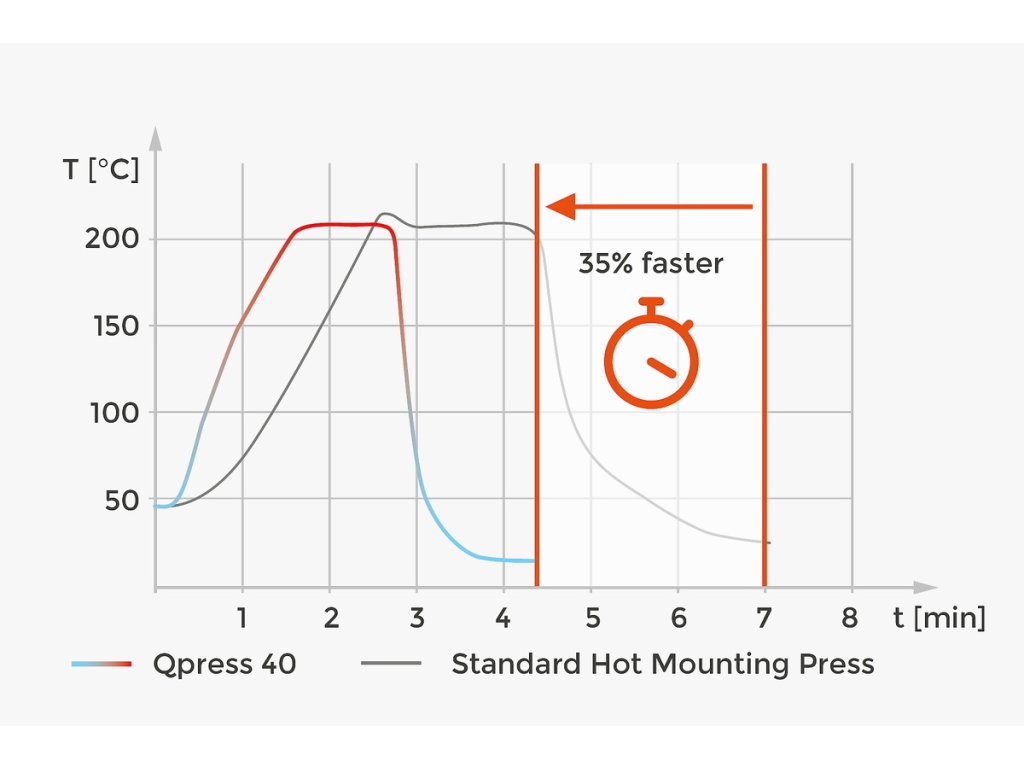

The new technology can reduce the mounting time by up to 35%.

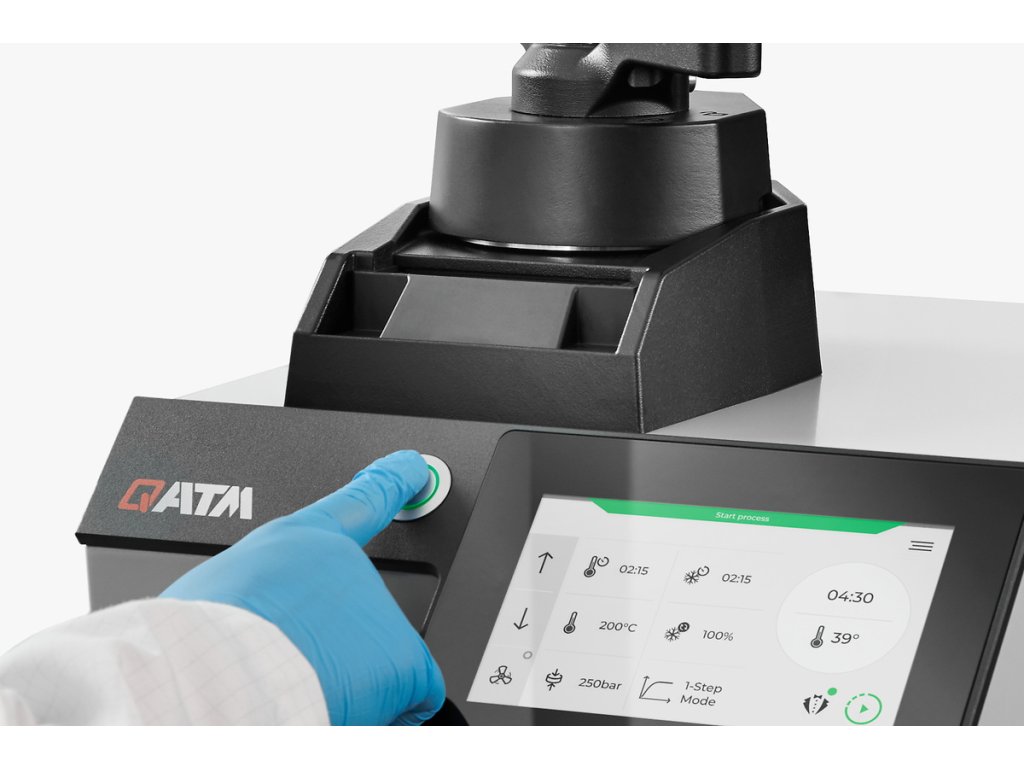

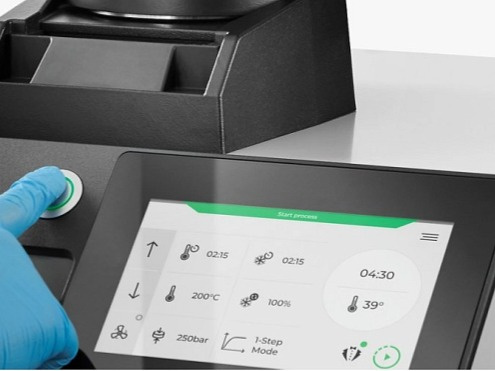

Simple one-button operation

The highest possible operating safety is achieved with the butler function. In just a few steps, the entire mounting process can be controlled by pressing the multifunction button. In addition, the PLUS software has a method database with pre-installed, consumable-specific mounting recipes and allows the storage of more than 200 user-defined mounting methods. This ensures the fastest possible operation with maximum process reliability.

Qpress 40 - automatický metalografický lis
Qpress 40 - automatický metalografický lis

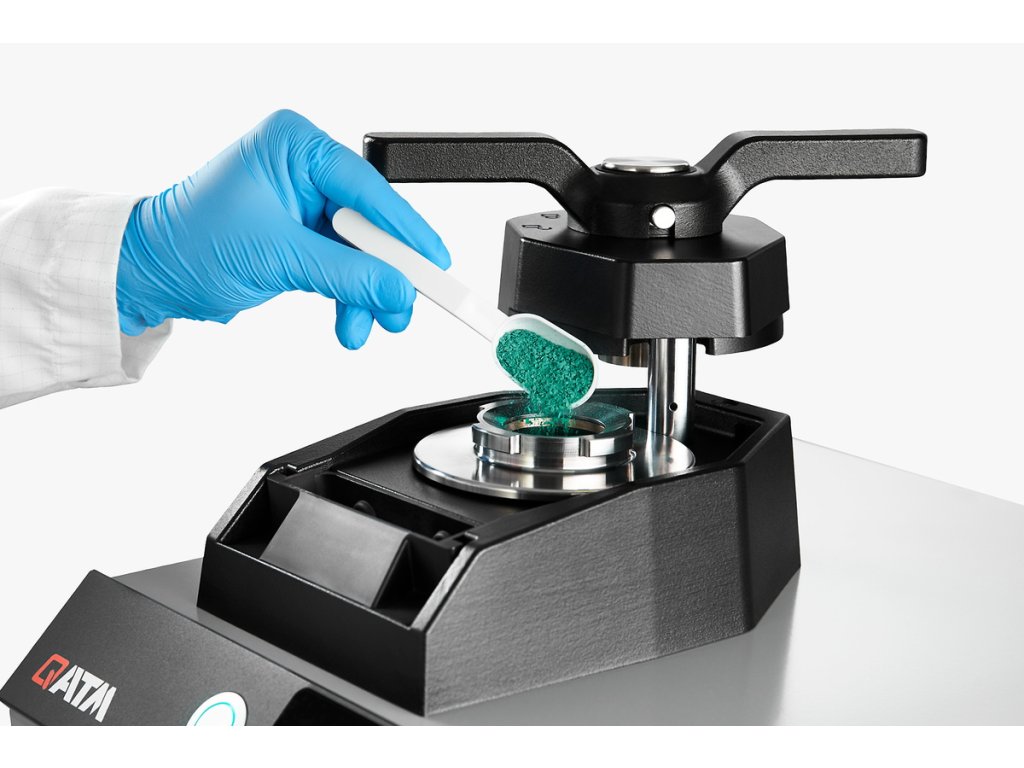

Extraction of fine dust

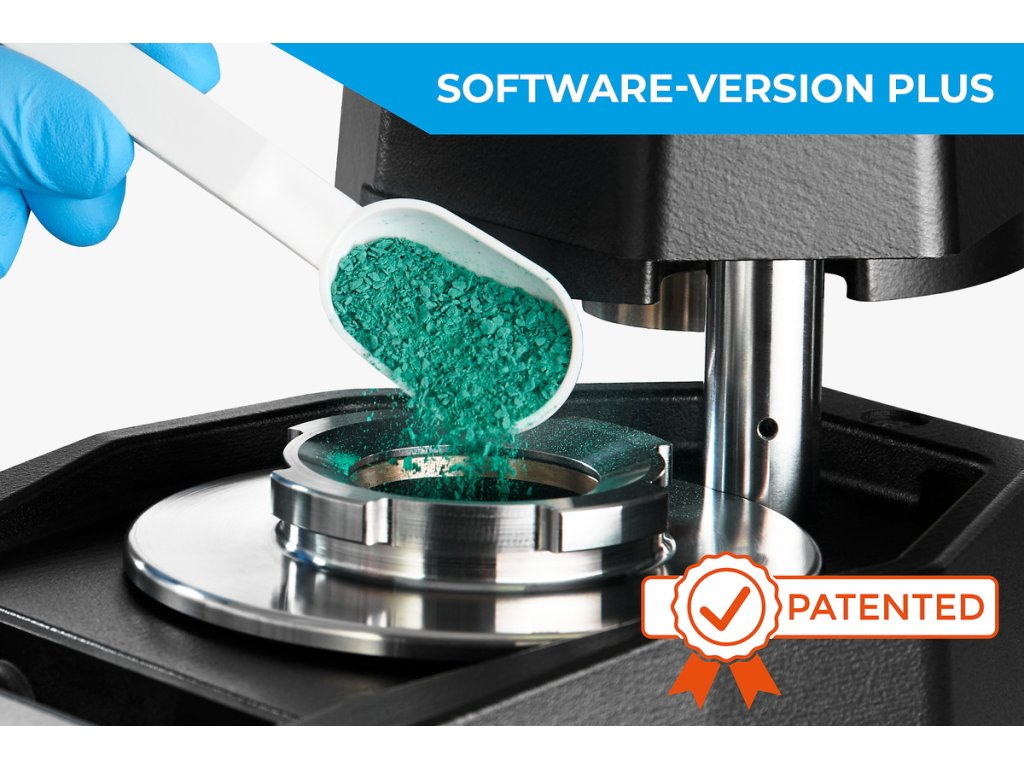

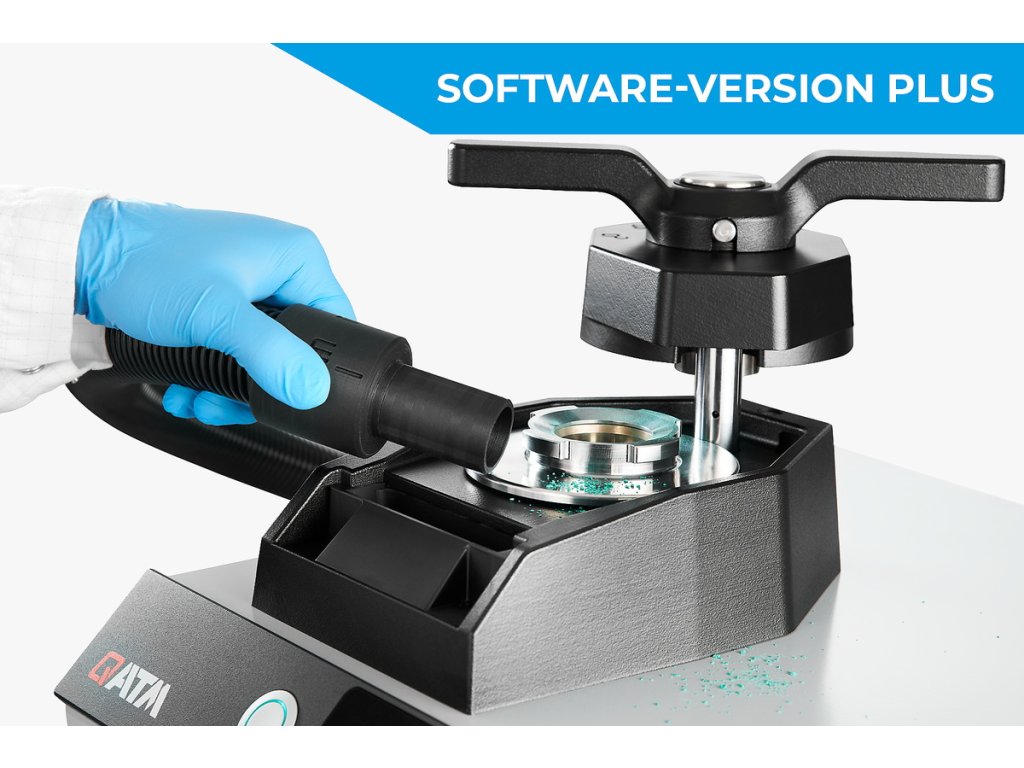

The patented and optional integrable suction device (Dust Guard) protects the user from inhaling dust that can escape when the mounting resin is filled into the mould. This significantly enhances health protection in the workplace. In the PLUS software version, the extraction system is automatically controlled by the software.

FUNCTIONAL PRINCIPLE

Functional Principle

The new design of the Qpress 40 ensures the shortest possible heating and cooling times. The heating elements quickly melt the mounting resin thanks to optimized heat transfer and temperature control in the mould. During this process, the granules are compressed to the preset mould pressure. Once the set temperature is reached, the press mould is cooled as quickly as possible after a short holding time, allowing the hardened sample to be removed for further preparation. This not only saves time but also reduces energy requirements.

Qpress 40 - automatický metalografický lis

Easy to clean

The suction nozzle attached to the back of the machine is removable, making cleaning very convenient. The mould and the two plungers can be removed for cleaning in just a few simple steps.

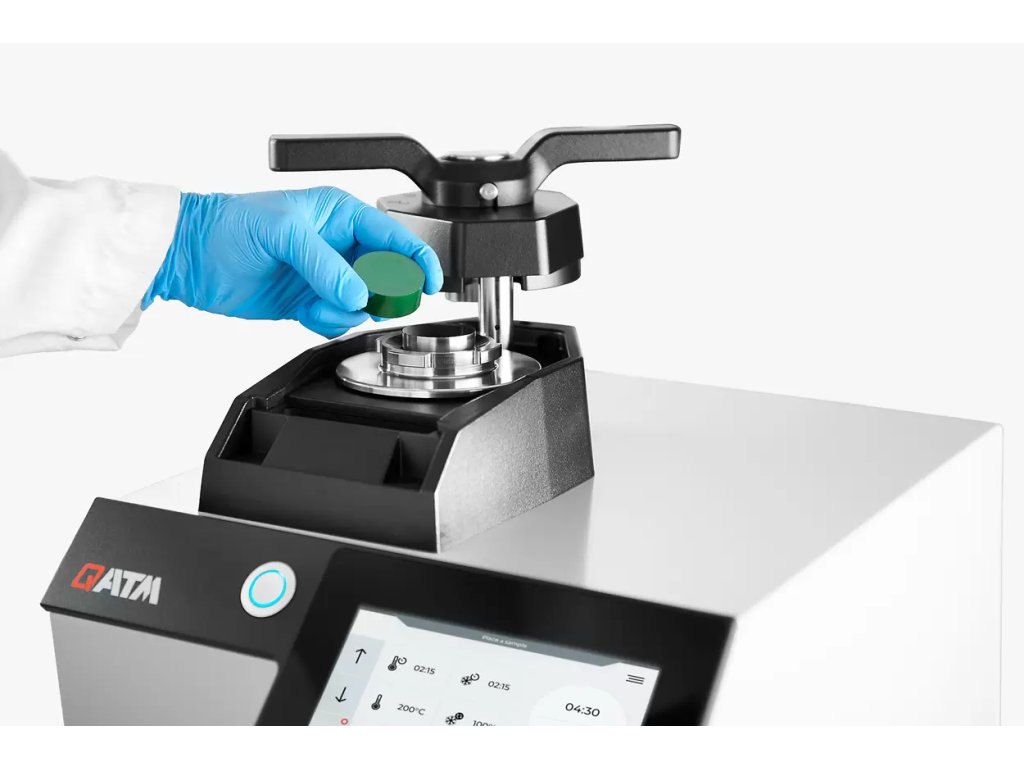

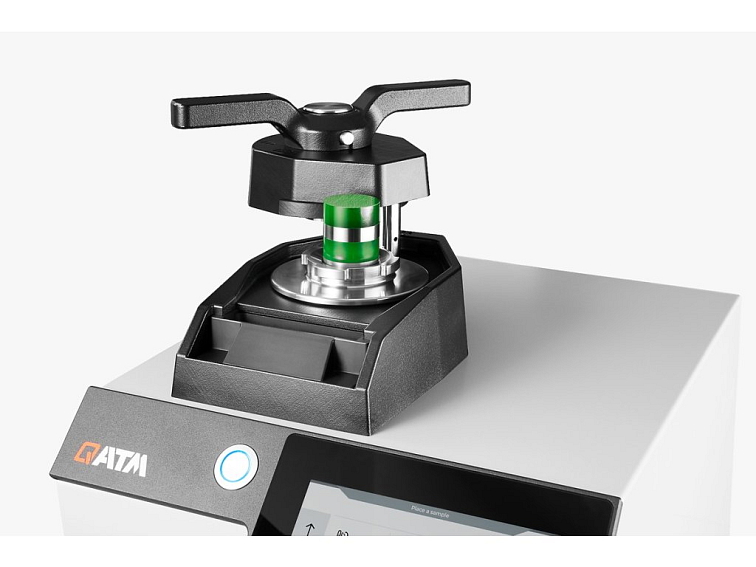

Tall press cylinder for double embedding

The tall press cylinder allows two samples to be mounted on top of each other simultaneously. This saves valuable mounting time and doubles sample throughput. Additionally, this mounting method is particularly time- and energy-efficient.

Qpress 40 - automatický metalografický lis
Qpress 40 - automatický metalografický lis

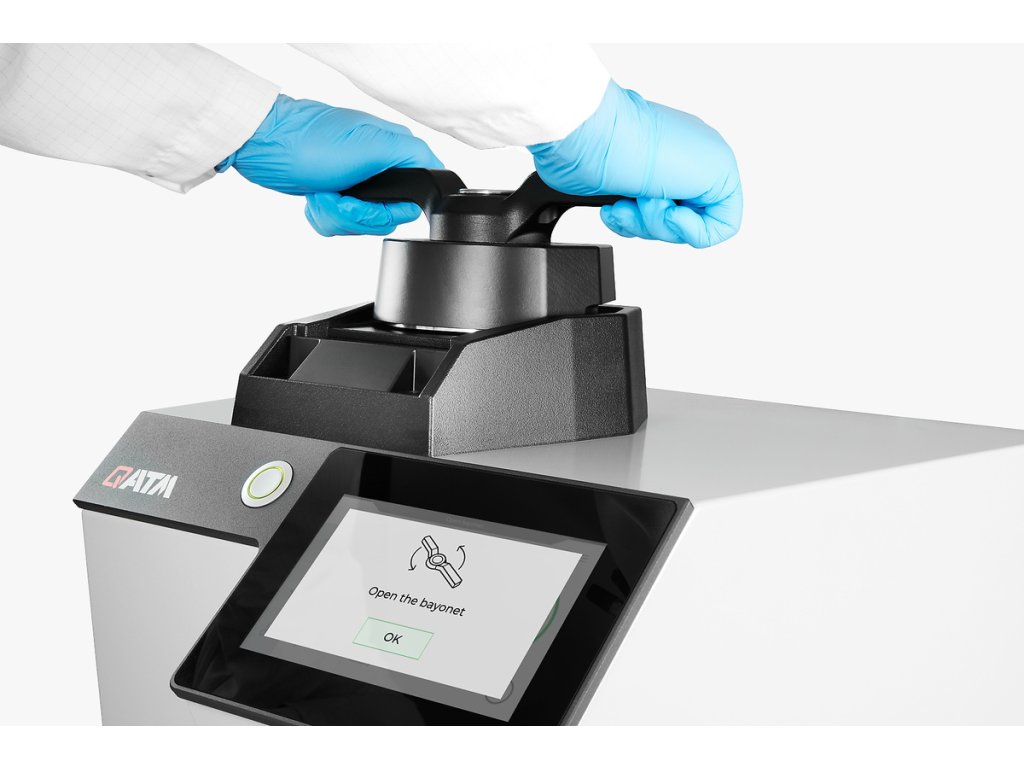

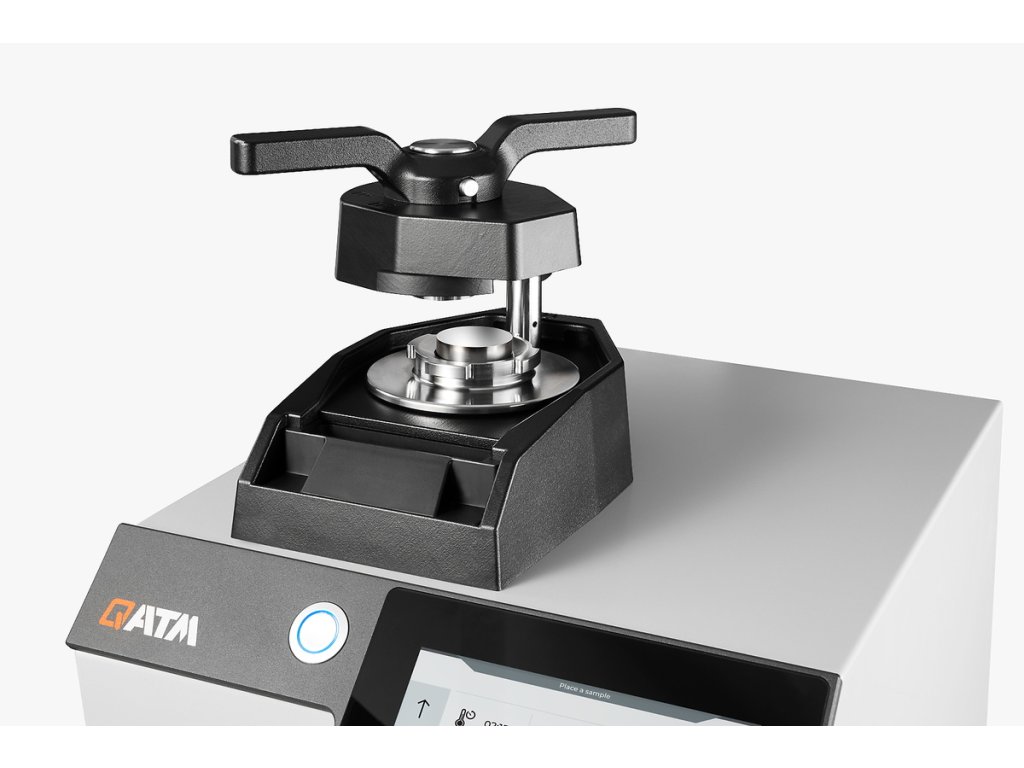

Robust bayonet closure

The robust and ergonomic bayonet closure fits comfortably in the hand and allows quick and easy opening and closing of the press cylinder.

Granulate compartment

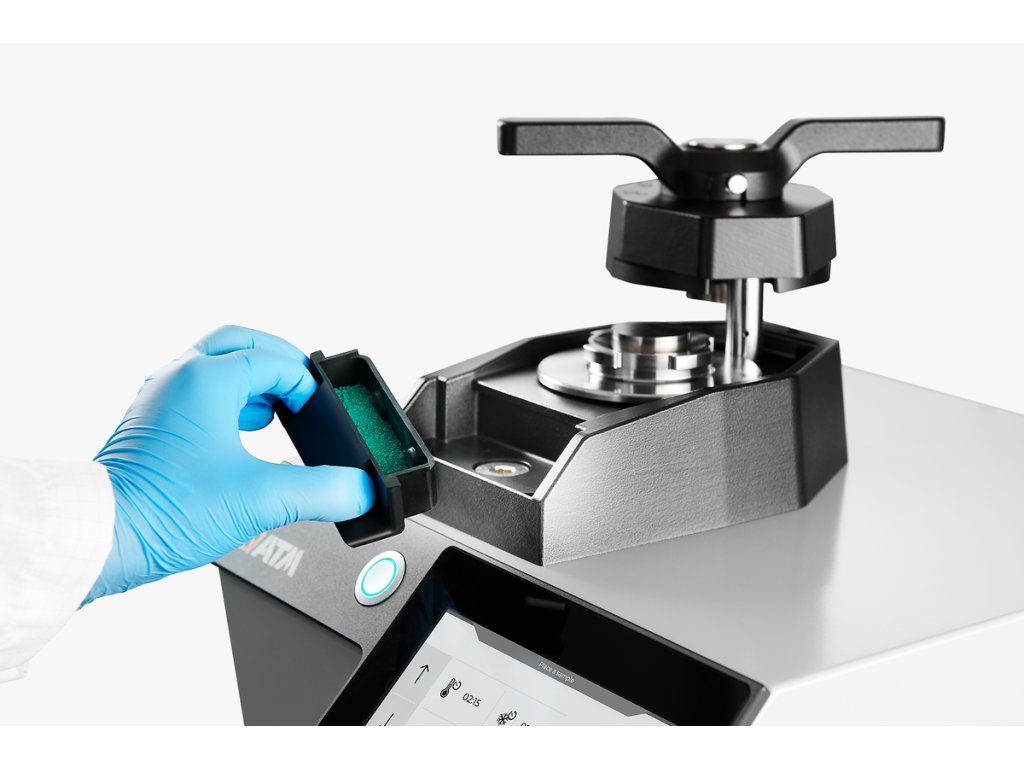

The machine includes a granule compartment for easy pick-up and disposal of excess mounting granules.

Qpress 40 - automatický metalografický lis

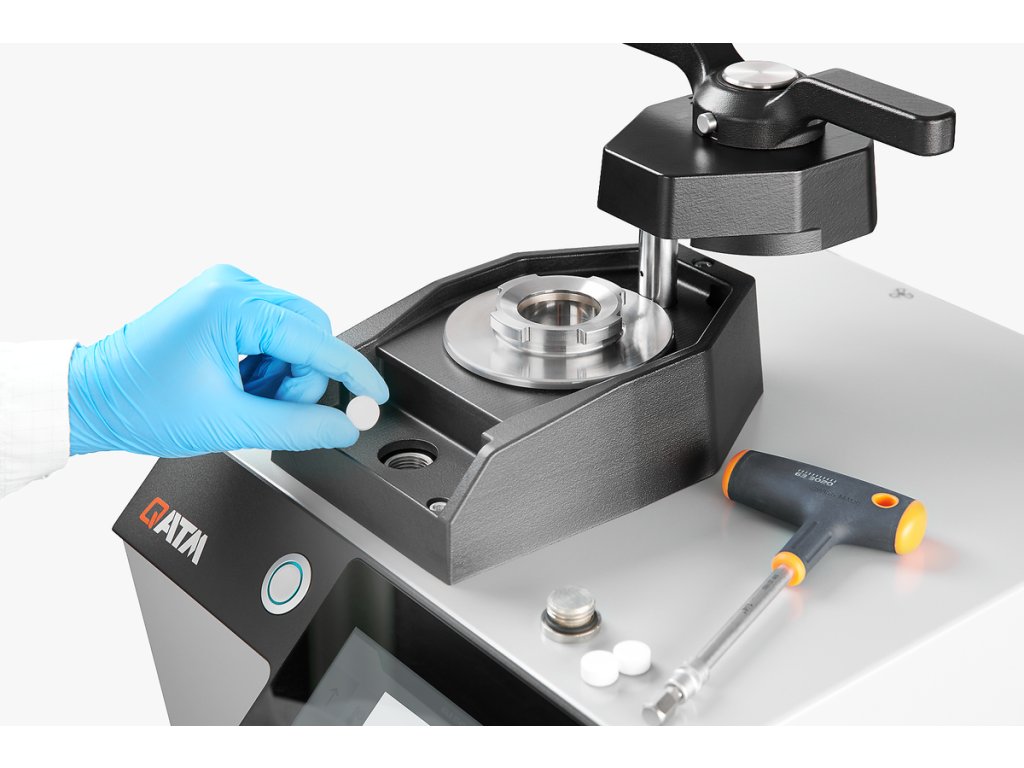

HOT MOUNTING PRESS QPRESS 40 MOUNTING IN A FEW STEPS

HOT MOUNTING PRESS QPRESS 40

Software

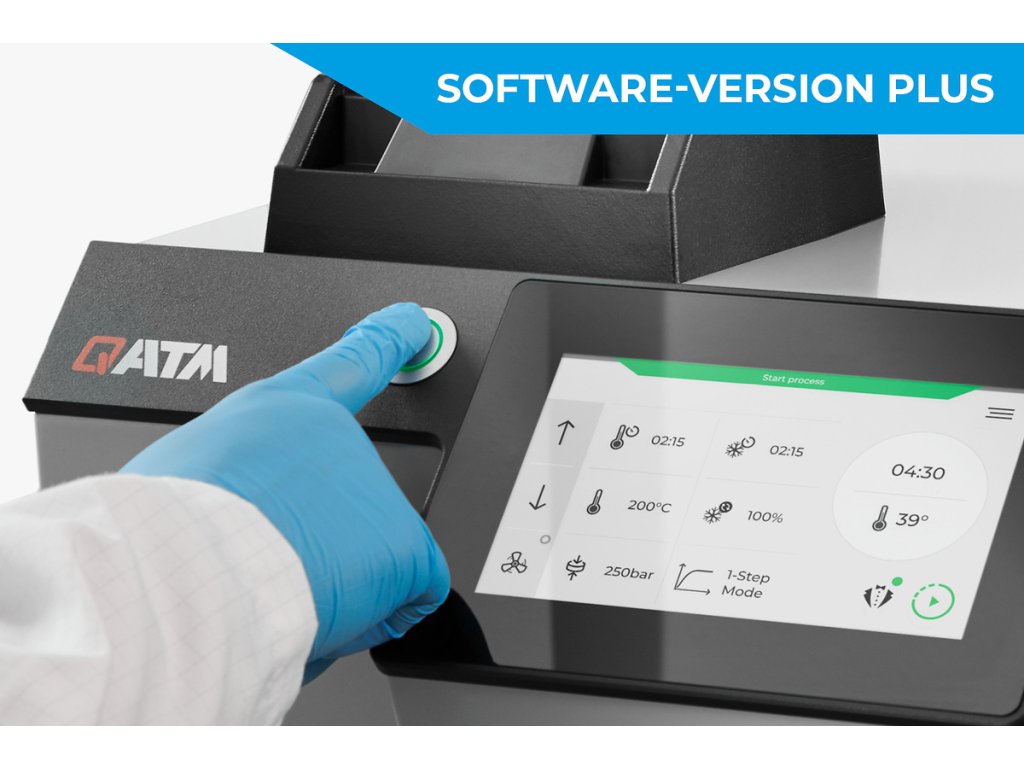

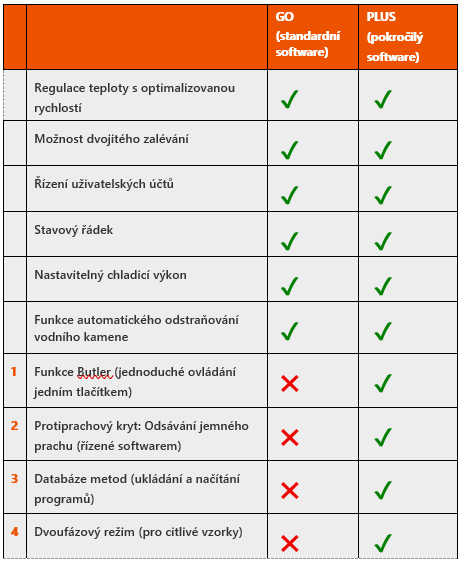

The Qpress 40 software is available in two variants. The standard Go software allows for quick setting of process parameters and starting of the mounting process.

The Plus software variant offers additional features such as a method database, butler function, and automatic control of extraction.The Plus software also includes the 2-step mode for sensitive samples. You can upgrade to Advanced Software Plus at any time.

Qpress 40 - automatický metalografický lis

Clear software

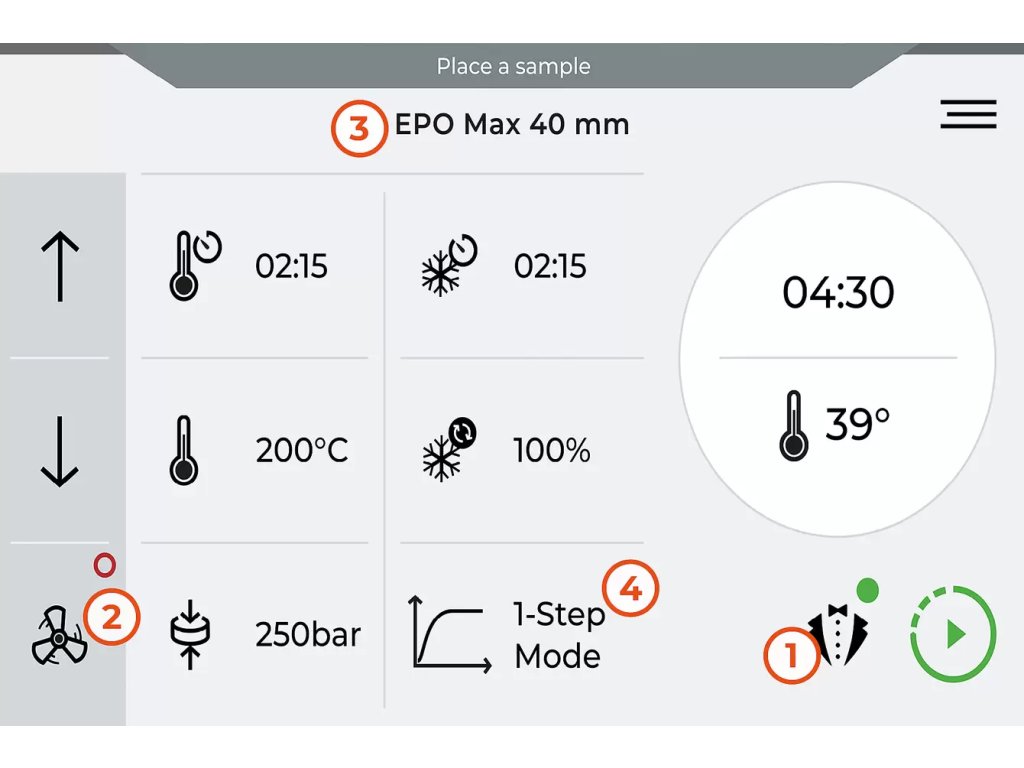

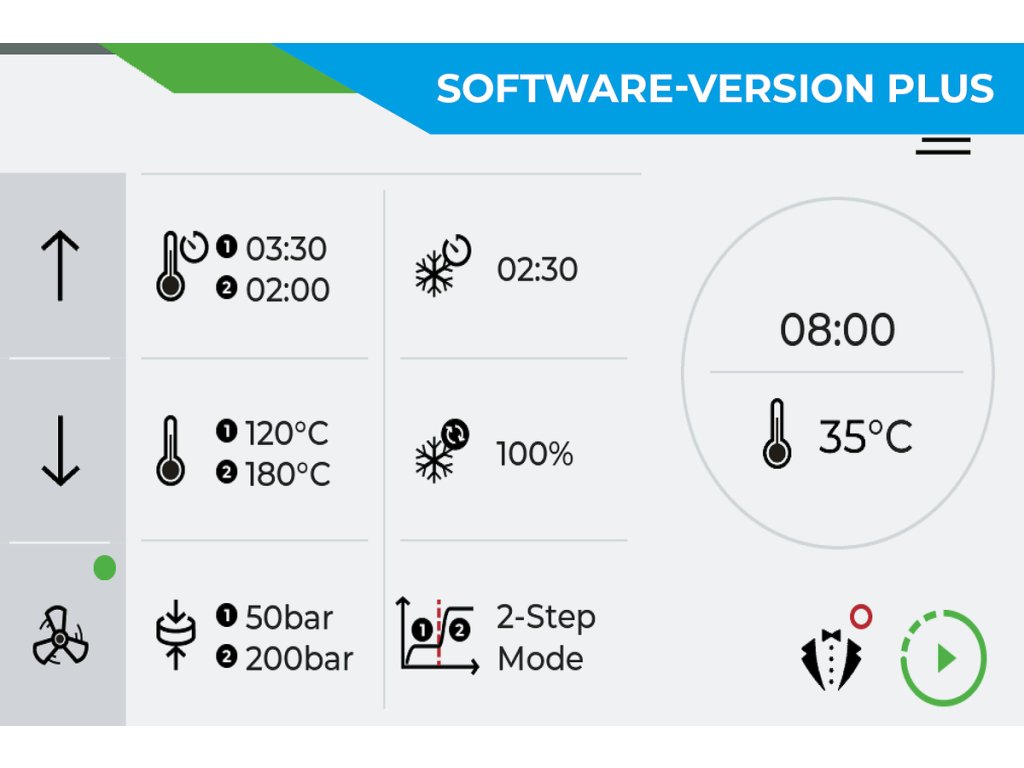

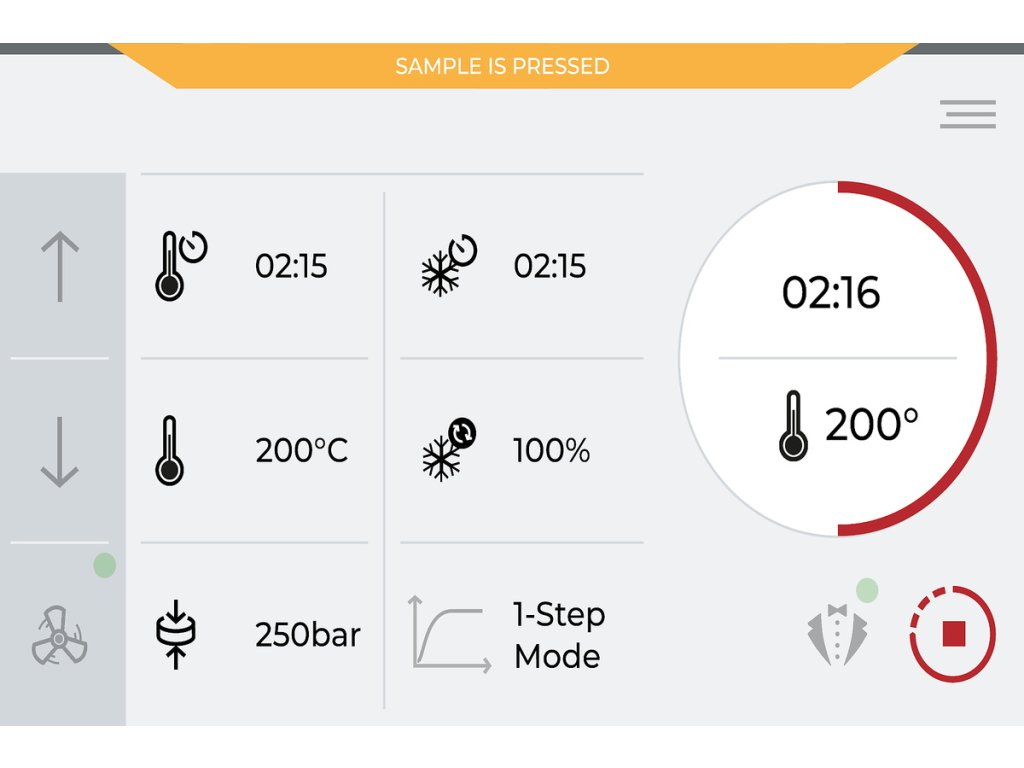

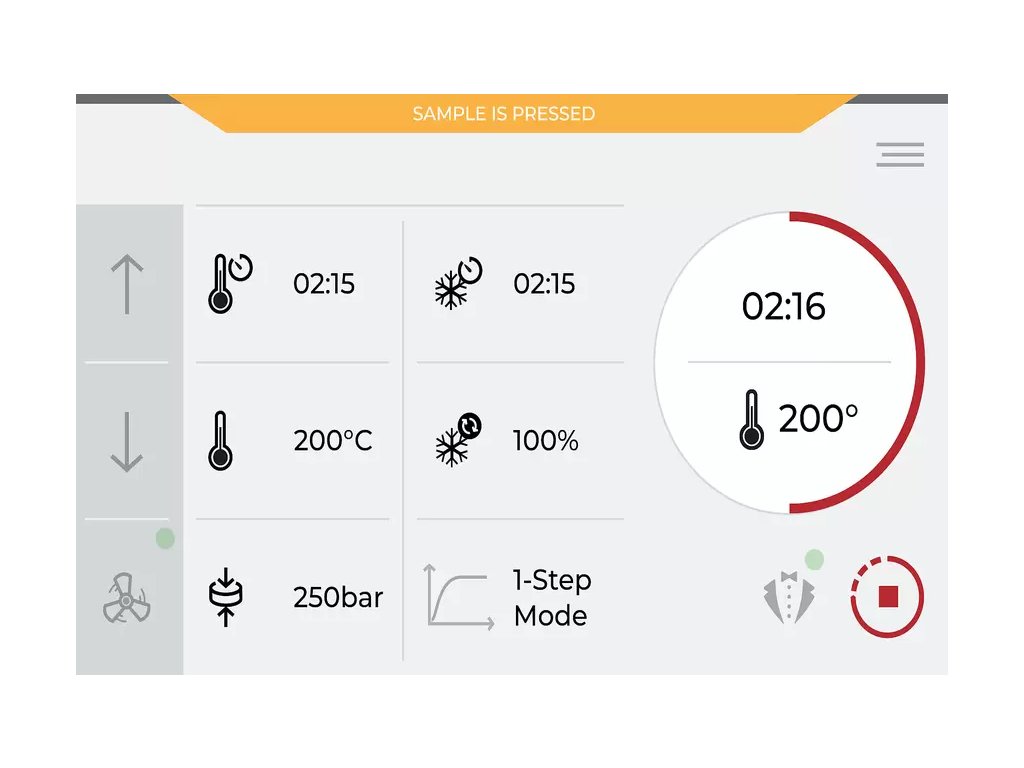

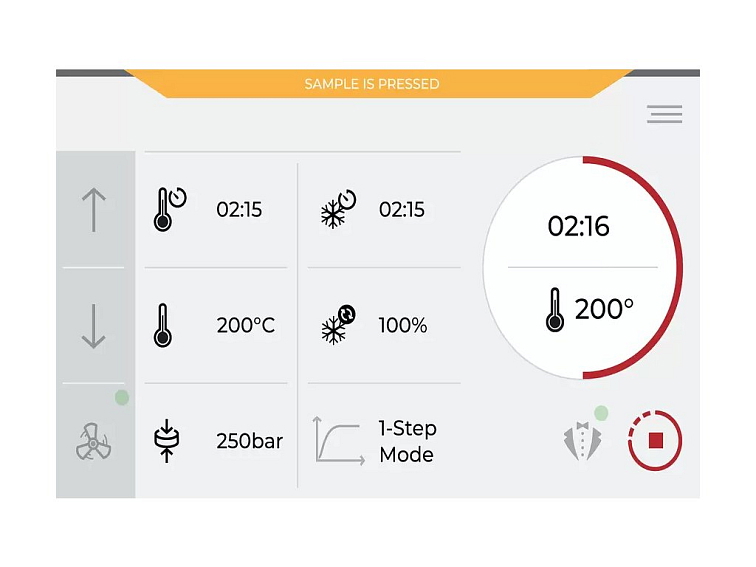

The intuitive software with a modern interface displays all important mounting parameters on the robust 7" industrial touch panel. Here, you can set the heating and cooling times, desired cooling capacity, temperature, and press mould pressure. Additionally, the software displays the current status of the hot mounting press. User Account Control allows settings to be write-protected.

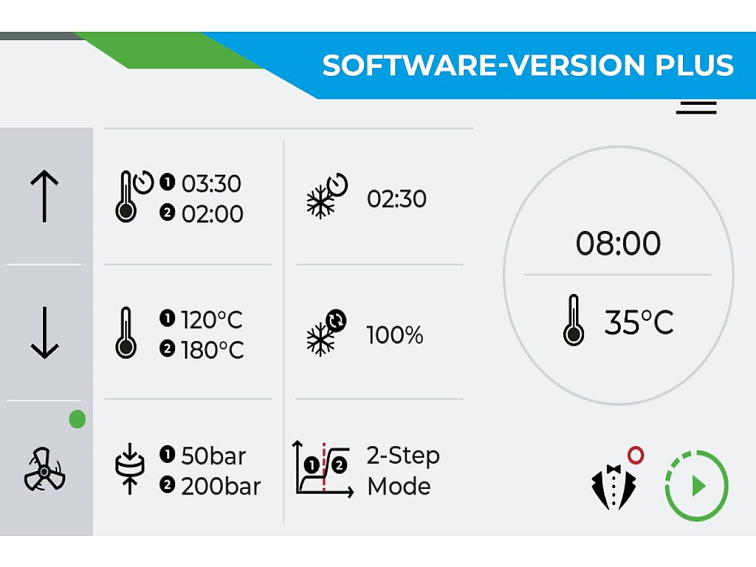

2-step print mode

For sensitive samples (sheets, thin-walled pipes, coated materials), a 2-step mode can be activated permitting independent control of temperature and pressure. For example, in the first stage, the mounting resin melts at low press chamber pressure. In the second stage, full pressure is applied for compaction, providing maximum protection for the sample.

Qpress 40 - automatický metalografický lis
Qpress 40 - automatický metalografický lis

Software-supported descaling function

The machine features an automatic descaling function. Simply insert a descaling tablet and select the software function to start the descaling process.

HOT MOUNTING PRESS QPRESS 40

Qpress 40 - automatický metalografický lis

Innovative Features - Perfect Results

The new Qpress 40 hot mounting press has been developed to meet the increasing demands for precision, efficiency and user-friendliness. The Qpress 40 is characterized by innovative features that not only optimize work processes, but also improve the quality of the results.

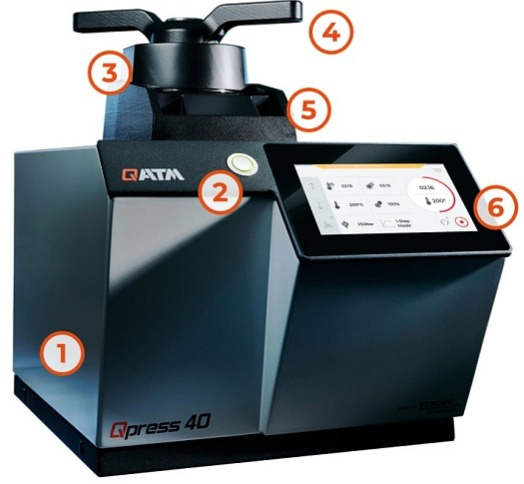

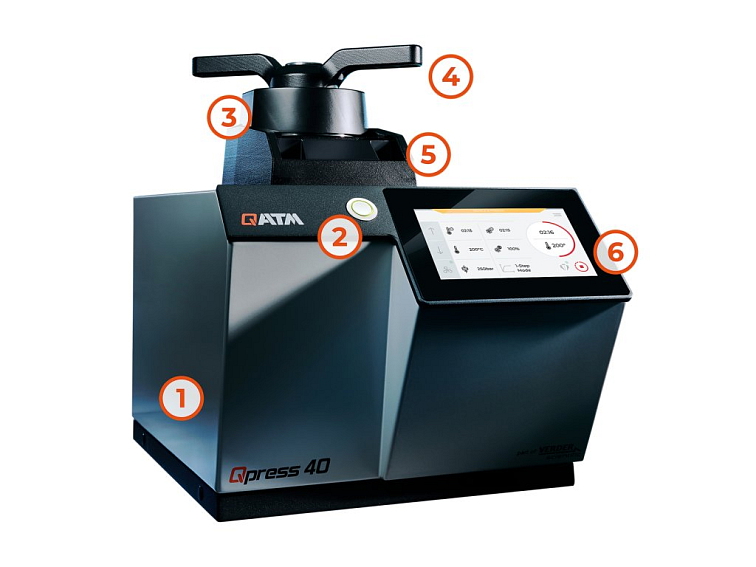

1. Speed-optimized heating / cooling technology

2. Intuitive one-button operation

3. Tall press cylinder for double mounting

4. Robust quick closure

5. Extraction of fine dust

6. Clear process control

HOT MOUNTING PRESS QPRESS 40 ACCESSORIES

Qpress 40 - automatický metalografický lis

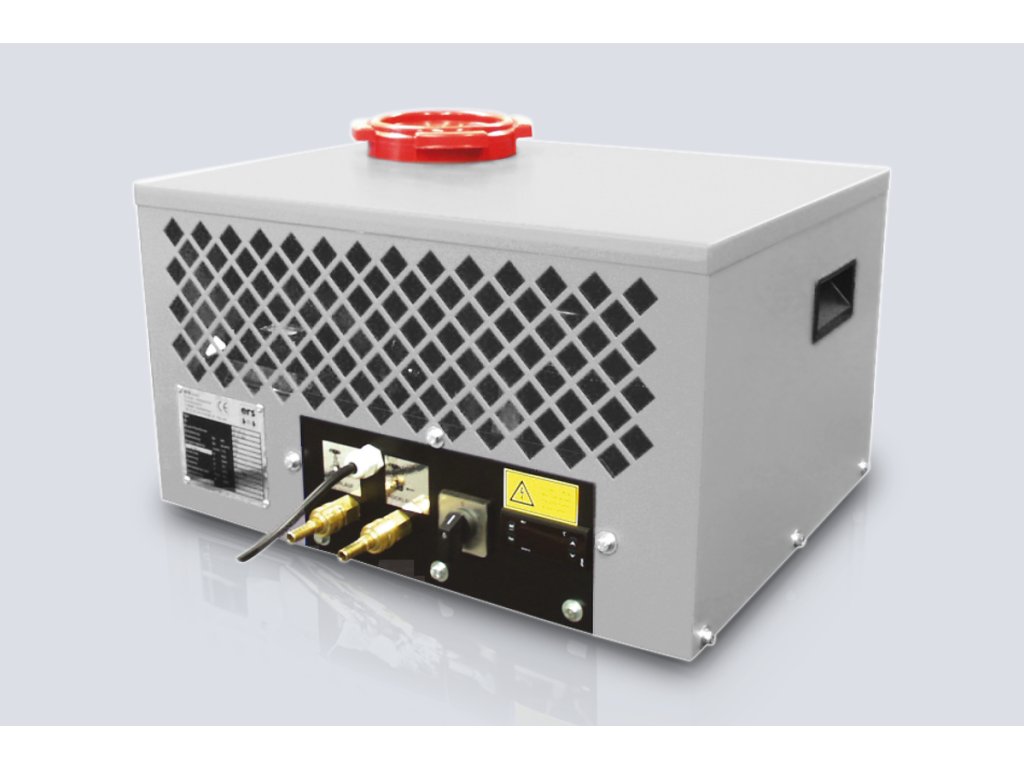

Circulating cooling

  • Powerful cooling
  • Resource-saving circulation system instead of fresh water
  • Low maintenance due to closed-circuit coolant circulation, reducing limescale deposits
  • Can connect up to two hot mounting presses

Moulds

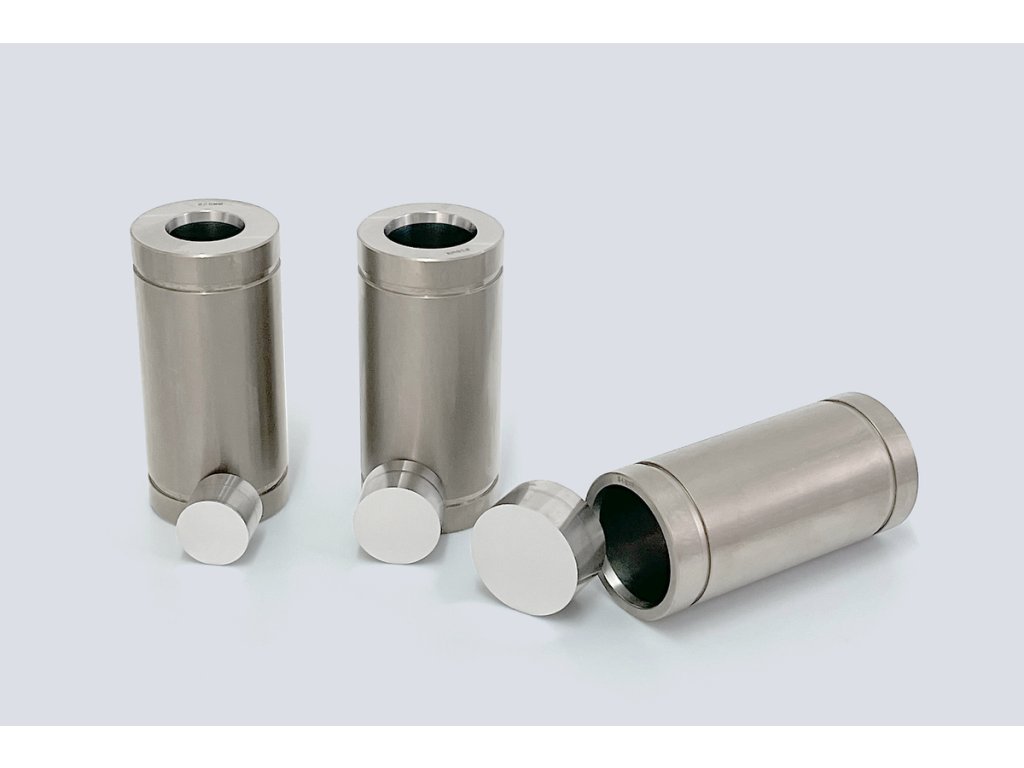

Easily interchangeable moulds are available with or without chamfer in these sizes: Ø 25 mm, Ø 30 mm, Ø 40 mm, Ø 1", Ø 11/4", Ø 11/2".

Qpress 40 - automatický metalografický lis
Qpress 40 - automatický metalografický lis

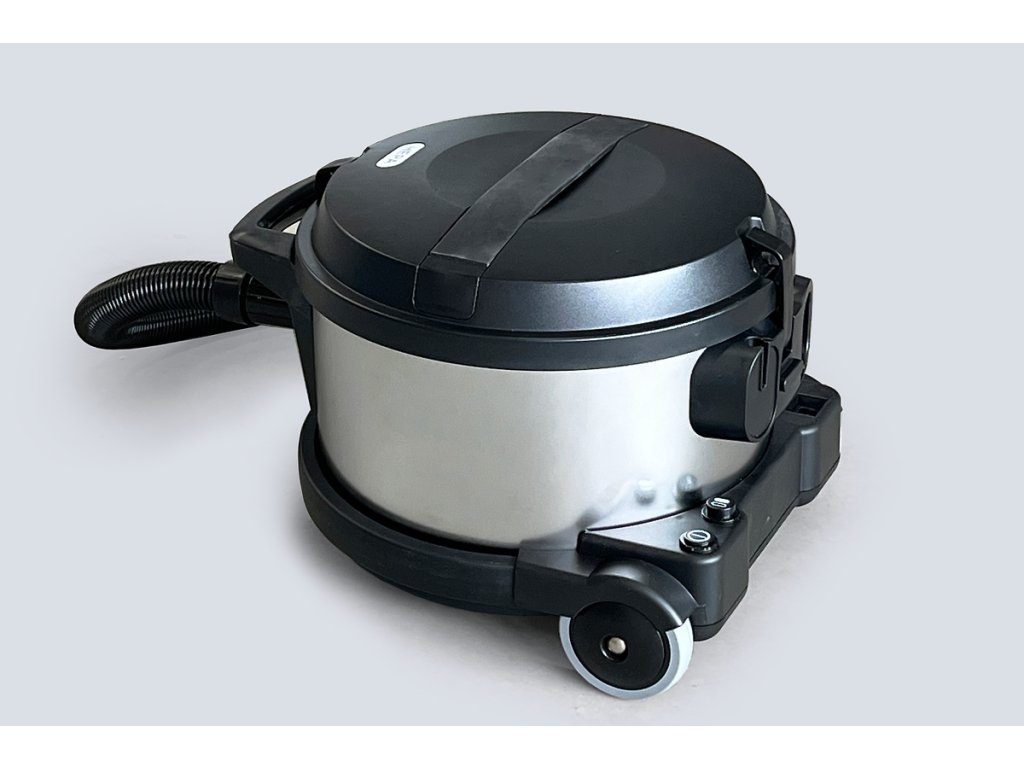

Suction

The optional extraction device allows for direct dust extraction when filling the mounting resin. It also enables easy cleaning of the machine with a removable suction hose. The extraction system can connect to up to two mounting machines and is controlled via the Qpress 40 software. It includes a replaceable vacuum cleaner bag and an additional fine dust filter.

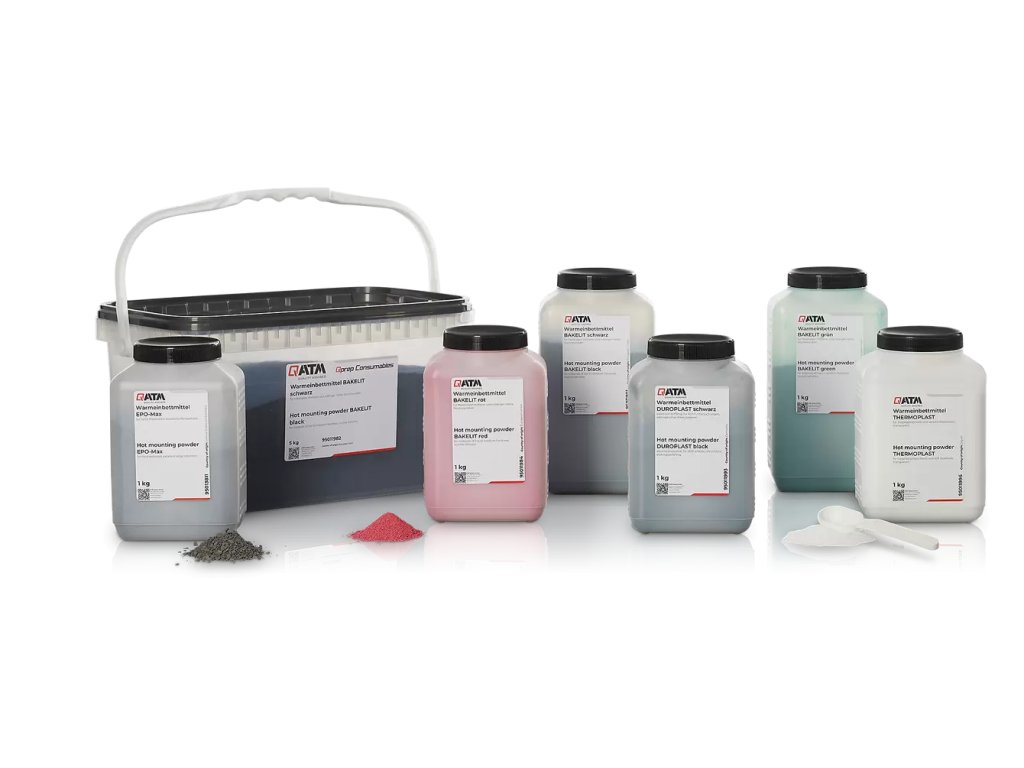

PERFECT MOUNTING – CONSUMABLES BY QPREP

Mounting is more reliable, safer and more efficient when performed with the right equipment: Knowledge, exercising care and the right choice of consumables and equipment are crucial.

HOT MOUNTING PRESS QPRESS 40 TECHNICAL DATA

Automatický metalografický lis Opal 410 - ∅ 25 - 40mm



BROŽURY, VIDEA



Automatický metalografický lis Opal 410 kombinuje špičkové zpracování a spolehlivý elektro-hydraulický systém s robustní spolehlivostí, kterou QATM (do 2019 ATM) zdokonaluje již 30 let vyvíjením hydraulických lisů. Vyniká velmi snadným ovládáním, automatickým chlazením s funkcí pro úsporu vody.

Jednoduché ovládací rozhraní nabízí snadnou kontrolu nad  pěti lisovacími režimy. Silný bajonetový uzávěr z nerezové oceli je odolný proti zatuhnutí i při zpracovávání velkého množství vzorků. Snadné vyměňování válců do velikosti 40 mm je samozřejmostí, jako prostřední pěchovadlo s možností lisování dvou vzorků najednou. Plně automatický metalografický lis Opal 410 je robustní zařízení s vestavěným chladicím systémem.


SPOLEHLIVOST

Metalografický lis Opal 410 je perfektní volbou pro vytížené laboratoře, které jsou závislé na každodenní rutinním zalévání a ocení úsporu času díky automatickým funkcím lisu.


VÝKON

V kombinaci se spotřebními materiály ATM získáte perfektní vzorky s vynikající odolností hran.


POPIS PŘÍSTROJE:

  • plně automatický metalografický lis
  • plně hydraulický proces s automatickým chlazením (s funkcí pro úsporu vody)
  • bajonetový princip zavírání
  • řízené počítačem
  • snadná a velmi rychlá výměna válců
  • hliníkové šasi, povlakováno práškovým plastem

JEDNODUCHÉ OVLÁDÁNÍ



 OPAL410 1

Bajonetové připojení umožňuje snadné uvolnění a odsunutí do strany. Externě přístupné součásti uzávěru jsou potaženy PTFE. Po stisknutí tlačítka start je proveden plně automatický program s předem zvolenými parametry. Parametry lze změnit a upravit během procesu zalisování.


SESTAVY FOREM



OPAL410 2

Náš rozsáhlý výběr sestav forem od Ø 25,2 - 40 mm umožňuje optimální zalisování vašeho vzorku. Za použití distanční podložky lze vyprodukovat dva vzorky současně.


ELEKTRONICKÉ OVLÁDÁNÍ



OPAL410 3

S jasným LCD ovládacím panelem můžete snadno ovládat lis pro horké zalisování vzorků.


PARAMETRY:

Velikost vzorkuØ 25.2 - 40 mm (6 different sizes)
Closure systembayonet
Double mounting possible
Rozsah termostatu20 až 200 °C
Doba ohřevu a chlazení0 až 30 min
Max. tlakaž 450 bar podle vzorku
depending on mould assembly's size
Výkon3.1 kVA
Systém ohřevu4 x 500 Watt
Rozměry350 x 400 x 450 mm
Hmotnost~ 40 kg




BROŽURY:

pdf Brožura k produktu - OPAL 410 metalografický lis (198.6 kB)
pdf Brožura ZALÉVÁNÍ VZORKU (1.2 MB)
pdf Brožura - Dávkovací systém pryskyřice (158.9 kB)



pdf OSTATNÍ BROŽURY KE STAŽENÍ...


VIDEA:





OSTATNÍ VIDEA KE SHLÉDNUTÍ...




SIMPLE OPERATION



 OPAL410 1

The bayonet connection enables easy loosening and swinging to the side. Externally accessible closure components are PTFE-coated. After pressing the start key, the fully automatic program is executed with the preselected parameters. The parameters can be changed and adjusted during the mounting process.


MOULD ASSEMBLIES



OPAL410 2

Our comprehensive selection of mould assemblies from Ø 25.2 - 40 mm enables optimum mounting of your sample. Two mounts can be produced simultaneously with the use of a spacer.


ELECTRONIC CONTROL



OPAL410 3

With its clear LCD operation panel you can easily control the hot mounting press.


Hmotnost 0.1 kg
Číslo celního sazebníku 84775910
Země původu DE
Velikost vzorku Ø 25.2 - 40 mm (6 different sizes)
Closure system bayonet
Double mounting possible
Rozsah termostatu 20 až 200 °C
Doba ohřevu a chlazení 0 až 30 min
Max. tlak až 450 bar podle vzorku
depending on mould assembly's size
Výkon 3.1 kVA
Systém ohřevu 4 x 500 Watt
Rozměry 350 x 400 x 450 mm
Hmotnost ~ 40 kg

OPAL 410 metalografický lis
