MULTIFUNKČNÍ TRIBOMETR MTF-5000

Všestranný modulární univerzální tribometr

BROŽURY, VIDEA

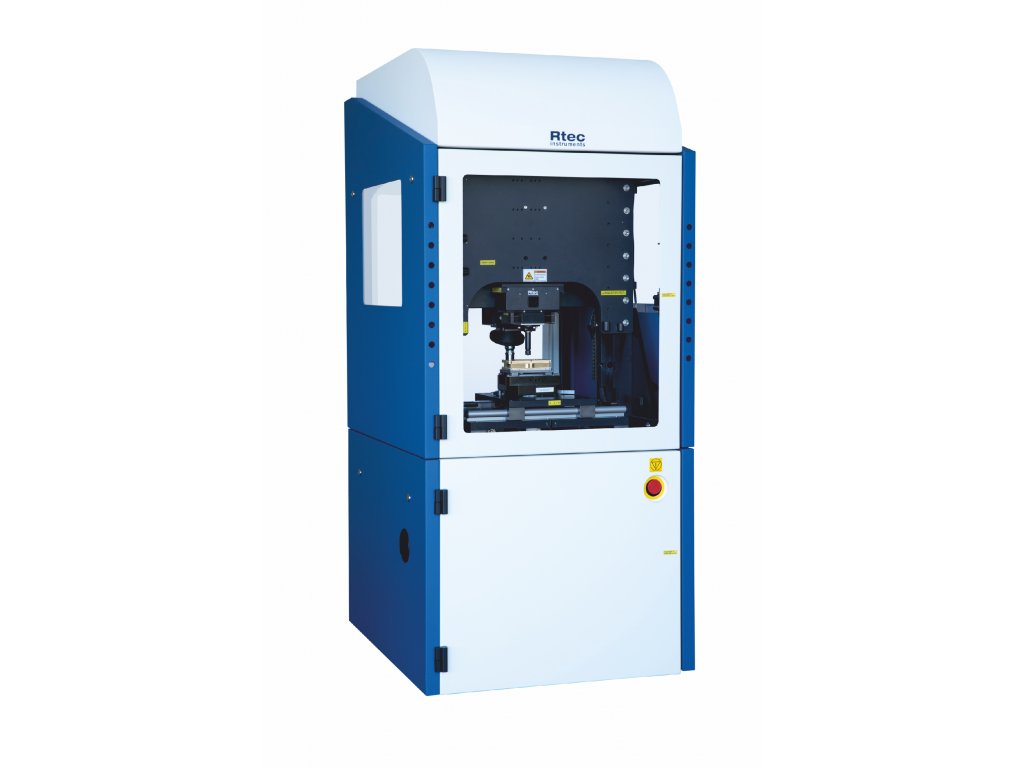

The MFT-5000 is a modular and versatile universal tribometer. Analyze friction, wear, and mechanical properties. Nano, micro, and macro range with an integrated 3D profilometer

POPIS PŘÍSTROJE:

Integrated 3D Profilometer
Load Range Nano, Micro, Macro
-120 °C to 1200 °C
Modular with Interchangeable Modules
Coatings, Lubricants, Materials Surface and Tribology Studies

Our Multi function tribometer is globally regarded as the most versatile and advanced. With patented force sensors, the MFT-5000 reaches super high speeds. As well as an extensive environmental control range, the MFT-5000 provides modularity. No other commercially existing tribometer performs our speeds and environments on one platform.

In addition, the tribometer contains a patented integrated 3D profilometer. This allows surface analysis of change vs. time. As a result, the MFT-5000 is perfect for comprehensive analysis of coefficient of friction, wear, hardness, adhesion, and more.

VERSATILE AND CUSTOMIZABLE FOR YOUR NEEDS

Upper Z structure

High precision multiple Z stages to move load cell, and profiler in Z-axis

Open Platform

Open platform architecture allows easy access and use. In addition, large available space provides current or future application modules to mount on one platform.

Lower Interchangeable Module

Interchangeable fast-exchange modules perform several tests on the same platform. These include rotary, block on ring, reciprocating, fretting, scratch, and more.

Environmental Control

Wide temperature (-120 to 1200°C), humidity (5 to 95% RH), pressure (up to 200 psi), vacuum (10^-7torr).

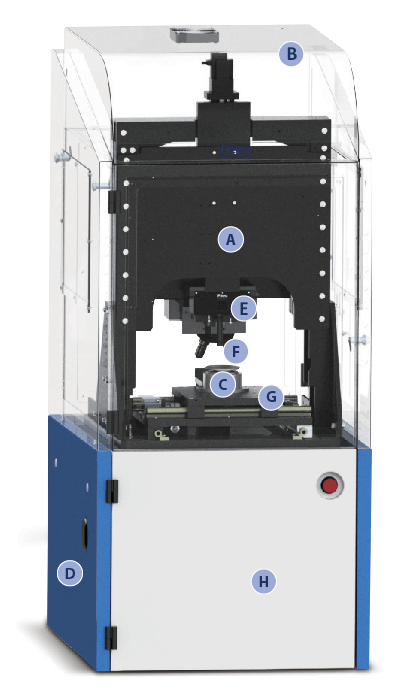

MTF5000_univerzalni_tribometr_rtec_a

Force Sensors

Interchangeable load cells across a wide range—nN to 10,000 N. Capacitive, piezo, and strain gauge technology.

Patented In-line 3D Profilometer

In-line Lambda 3D optical profilometer. Inspect any sample with nm resolution. Four imaging modes on the same profilometer–confocal, interferometer, dark field, and bright field.

XY Stage

Long-stroke, high precision, close loop XY stage. The stage moves modules between test and image positions to create custom motions. Also, slow speed reciprocating, scratch, and combined X-Y motions.

Data Acquisition, Motion Controller

Advanced high speed, low noise, fast feedback. Multiple channels, and highest data acquisition rate (200 kHz) controllers.

INTERCHANGEABLE MODULES

Multiple modules are available for the XY stage:

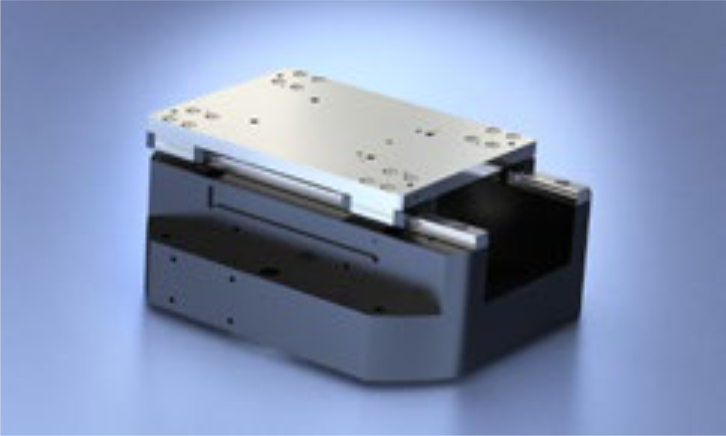

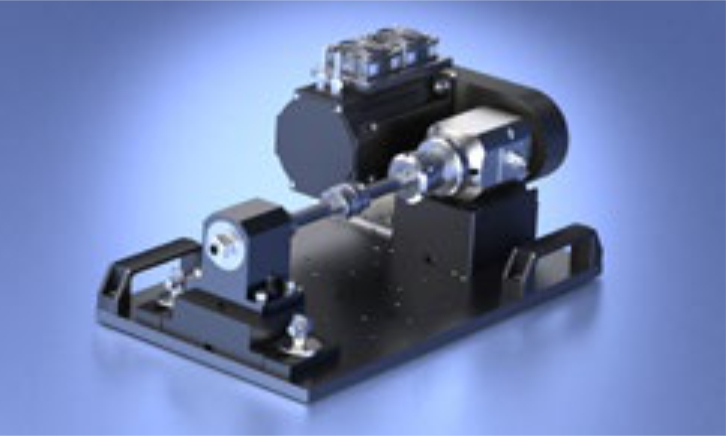

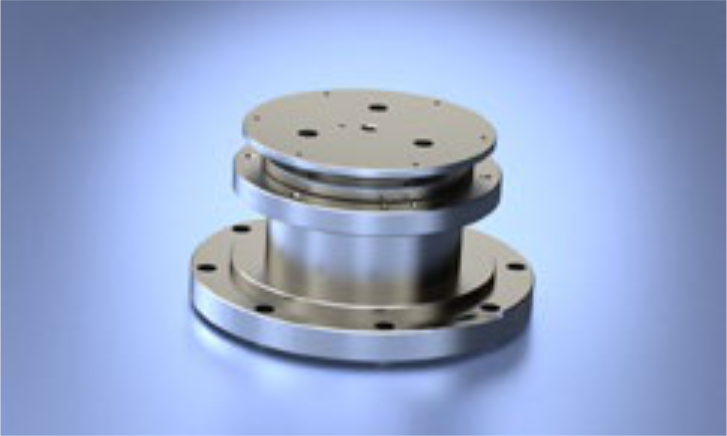

Rotary Drive	Reciprocating Drive	Block on Ring Drive

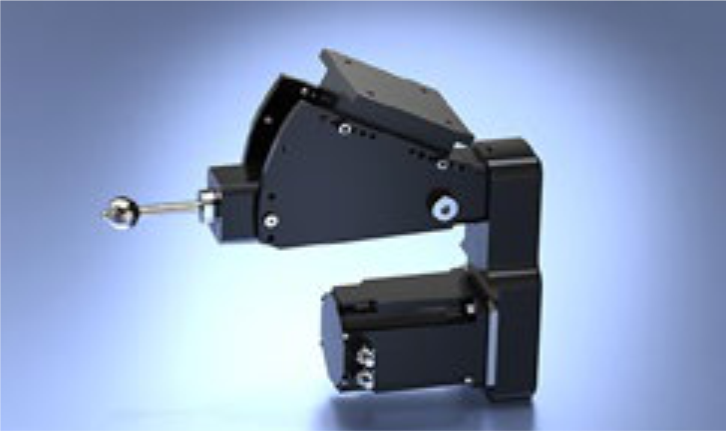

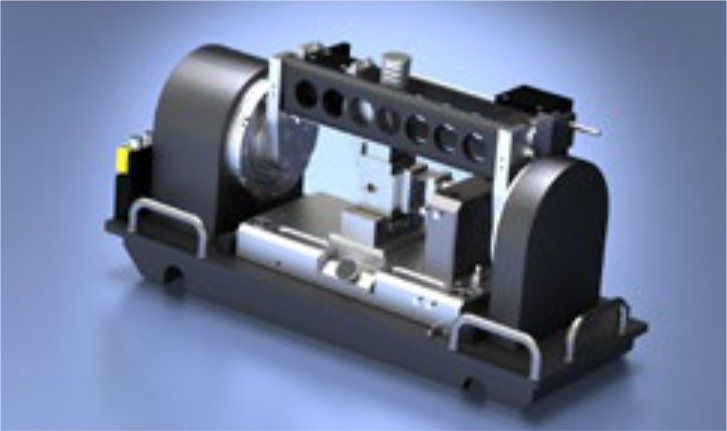

Fretting Drive	MTM, EHL Drive	Upper Rotary Drive

PATENTED INTEGRATED IN-LINE 3D PROFILOMETER

Lambda-universal-profilometer-rtec-instruments-1

The in-line integrated 3D profilometer provides 3D surface change plots with nm resolution. Thus, the profilometer easily correlates the tribology data with surface topography. This technology is specifically optimized for tribology-related tests.

Notably, the lambda head model combines four optical techniques on one head. These techniques include interferometer, confocal, dark field, and bright field imaging. Thus, it can measure any surface– transparent, rough, smooth, and steep slopes surface.

In addition, the XY stage on the tribometer allows for automatic stitching of volume wear and roughness calculations.

Two widely used optical head options are available for integration:

Sigma head – White light interferometry
Lambda Head – White light interferometry + Confocal microscopy + Dark Field + Bright Field Imaging

UNMATCHED LOAD CELL TECHNOLOGY

Capacitive, Piezo, And Stain Gauge

The universal mechanical tester has a wide range of patented load cells. This provides unparalleled stability and resolution. In fact, the wide load range extends from nN to 10,000 N with easily interchangeable load cells. In addition, the sensors come with various configurations: forces measured in 1, 2, or 6 axes.

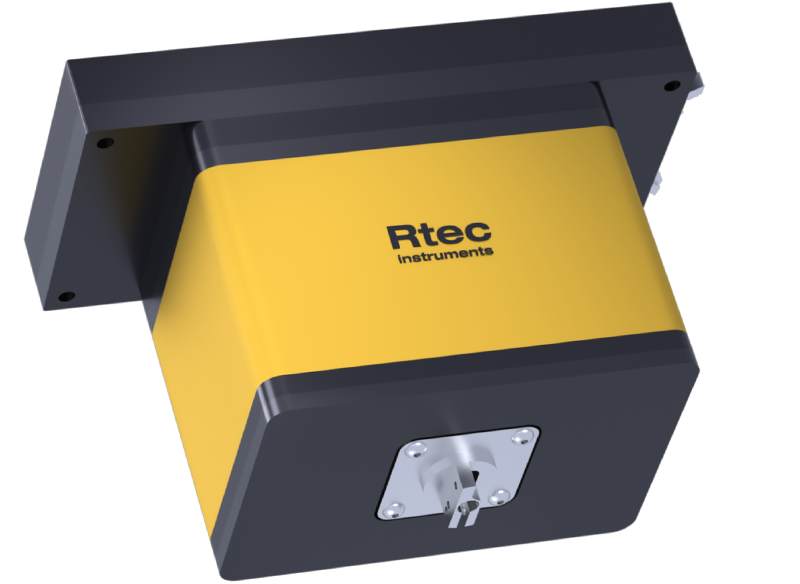

Capacitive Load
Cells

Highest resolution load cells with rigid design

Strain Gauge Load
Cells

Sensors with widest load range

Piezo Load
Cells

Highest resolution load cells with high frequency response

Dynamic Torque
Sensors

Sensors for measuring in-line torque during rotating motions

ENVIRONMENTAL CHAMBERS

Tribology testing highly depends on environmental conditions. Therefore, tests require conditions close to the real application. The MFT-5000 has a wide range of options. These include high temperature, corrosion, pressure, vacuum, cooling, inert gas on one tribometer.

High Heat and
Cryogenic

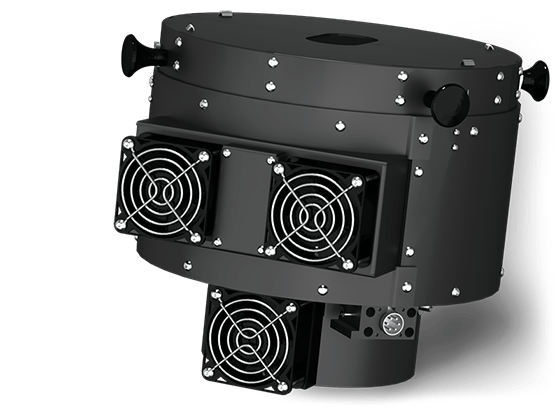

Cryogenic to high temperature close loop chambers: -120 °C to 1200 °C.

High Pressure and
Vacuum

Solution from 10-7 Torr up to 200 PSI gas pressure with temperature control.

MTF5000_univerzalni_tribometr_rtec_Metalco_testing Pressure-Icons

Controlled Humidity

Control humidity from 5 to 95% RH to simulate real-life scenarios.

Environment

Salt Spray, tribocorrosion, inert gas chambers for various applications.

AUTOMATIC SUB nm SURFACE CHANGE IMAGE VS TIME

3D-Wear-Mark-Progression

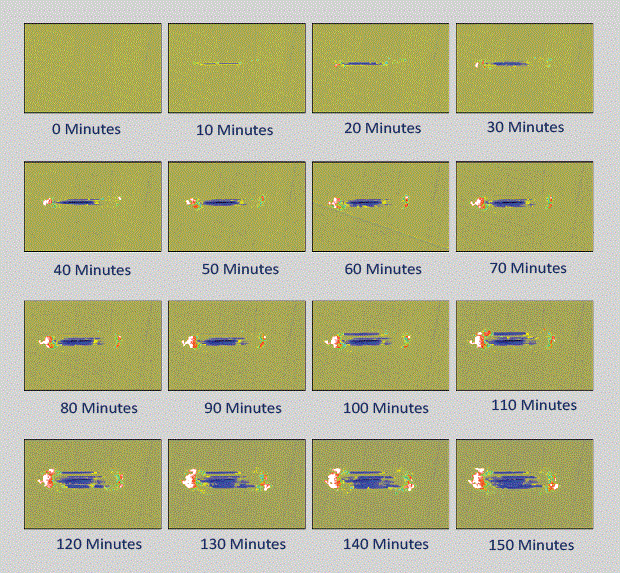

The data shows 3D wear mark progression during a linear reciprocating test. Calculate and study:

Volume wear progression
Roughness change
Crack initiation and propagation
Debris creation
Topography change
Effect of textures on tribology
Effect of surface roughness

APPLICATIONS

Application-specific solutions

Rtec Instruments’ Universal Tribometer provides versatility and modularity. It supplies several tribological and mechanical testing solutions for various industries. Today, the MFT-5000 is widely used to measure the friction coefficient for lubricants and grease. Testing applications also include bio, automobile, semiconductor, aerospace, ceramics, space industries, and more.

It is essential to conduct experiments in conditions close to the real application. This is required for valuable tribological data. Meaningful data is now easy with the Universal Tribometer. This is because it provides custom motions and a wide load range, as well as customized holders and drives.
