QPOL 300 M2

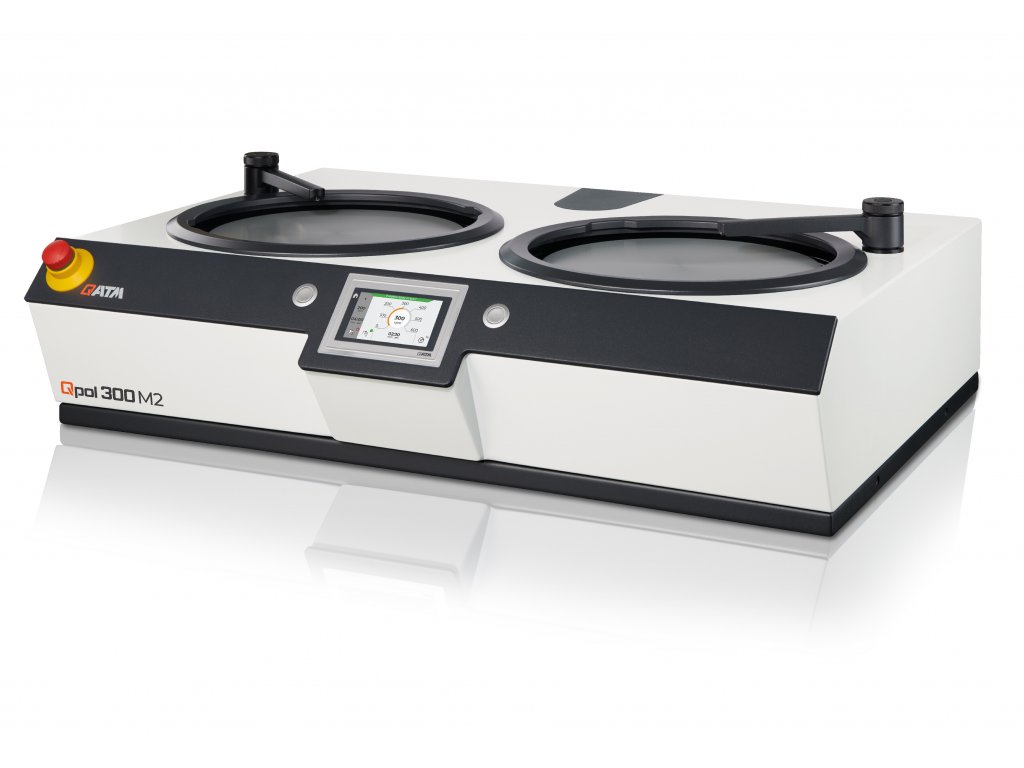

QPOL 300 M2 - manuální dvoukotoučová metalografická bruska / leštička

The Qpol 300 M2 is a manual, twin wheel grinding and polishing machine for separately controlled working wheels Ø 250/300 mm.

In the ergonomically integrated touch panel, all process parameters as well as convenient features for manual preparation are clearly displayed and can be easily changed at any time. All process parameters can be saved as a preparation method. The adjustable timer and the torque display for visualizing the current grinding pressure enable comfortable and reproducible manual preparation steps. The water valve is automatically switched on/off when the preparation starts or ends.

CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Cena dle konfigurace na dotaz
Kód produktu M5631070
Značka QATM
Kategorie Manuální brusky a leštičky


QPOL 300 M2 - manuální dvoukotoučová metalografická bruska / leštička



BROŽURY, VIDEA



The Qpol 300 M2 is a manual, twin wheel grinding and polishing machine for separately controlled working wheels Ø 250/300 mm.

In the ergonomically integrated touch panel, all process parameters as well as convenient features for manual preparation are clearly displayed and can be easily changed at any time. All process parameters can be saved as a preparation method. The adjustable timer and the torque display for visualizing the current grinding pressure enable comfortable and reproducible manual preparation steps. The water valve is automatically switched on/off when the preparation starts or ends.

A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds and then turns off the device. The particularly strong, speed-controlled drive makes this model suitable for all preparation steps and materials. In addition, the working disc can be operated in clockwise / counter-clockwise rotation.

The impact-resistant plastic bowl, the powder-coated aluminium housing and the high-quality components inside the device are the basis for smooth running and best preparation results. The robust device can be retrofitted with the Qpol Go automatic grinding and polishing head and combined with the TOPAS GO manual dosing system. It therefore offers a high degree of flexibility and comfort during sample preparation.


POPIS PŘÍSTROJE:

  • Double wheel grinder/polisher
  • Variable speed
  • Visualization of the current grinding force
  • Timer function
  • Automatic water valve
  • Aluminium case, powder coated
  • Clockwise and counter-clockwise rotation

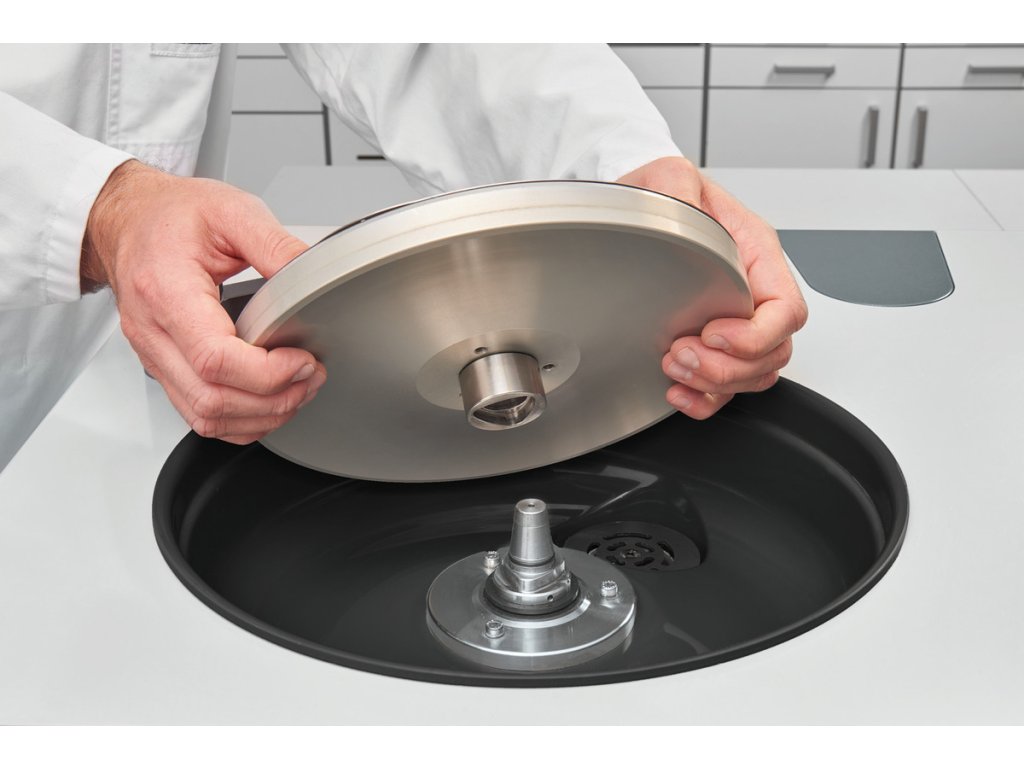

  • Easy cleaning/rinsing of bowl by lifting the working wheel (single-disc design)
  • Impact-proof plastic bowl
  • Retrofittable automatic grinding/polishing head Qpol GO

PARAMETRY:

Pracovní kotouč Ø 250 až 350 mm
Otáčky kotouče 30 až 600/min, continuously adjustable
Connection power 2,3 kVA
Drive power (main drive) 2X 0.75 kW S1
Water connection 1x fresh water connection R½" max. 6 bars
Rozměr (Š x V x H) zařízení 901 x 265 x 710 mm
Hmotnost základního stroje ~ 57 - 65 kg

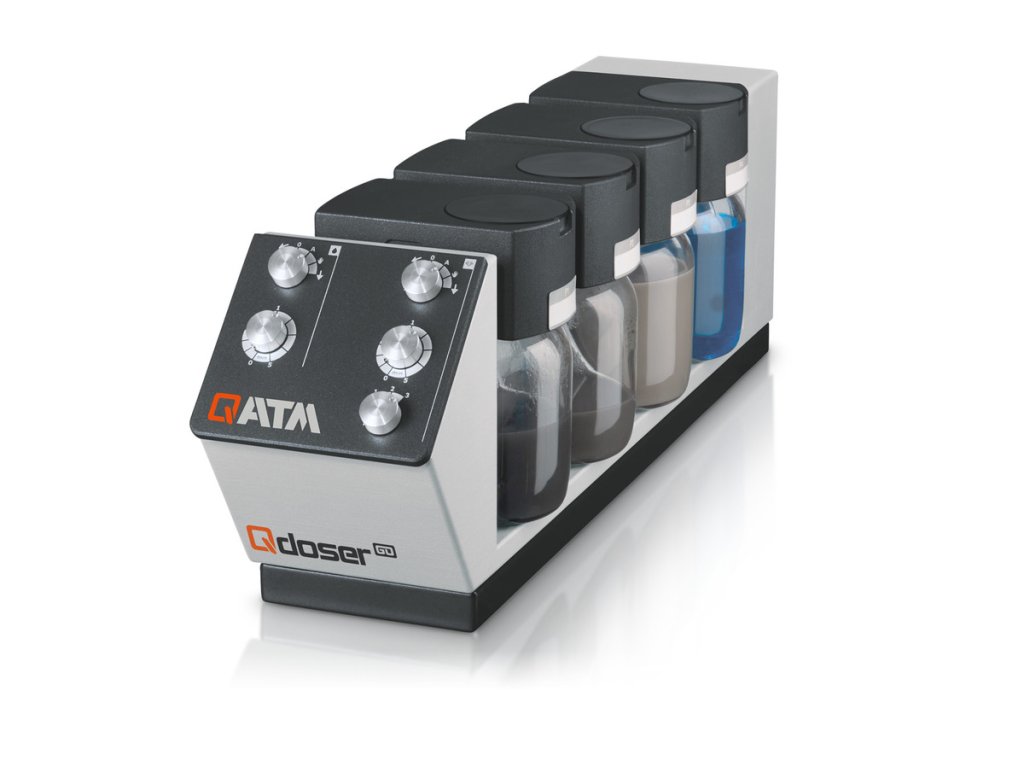

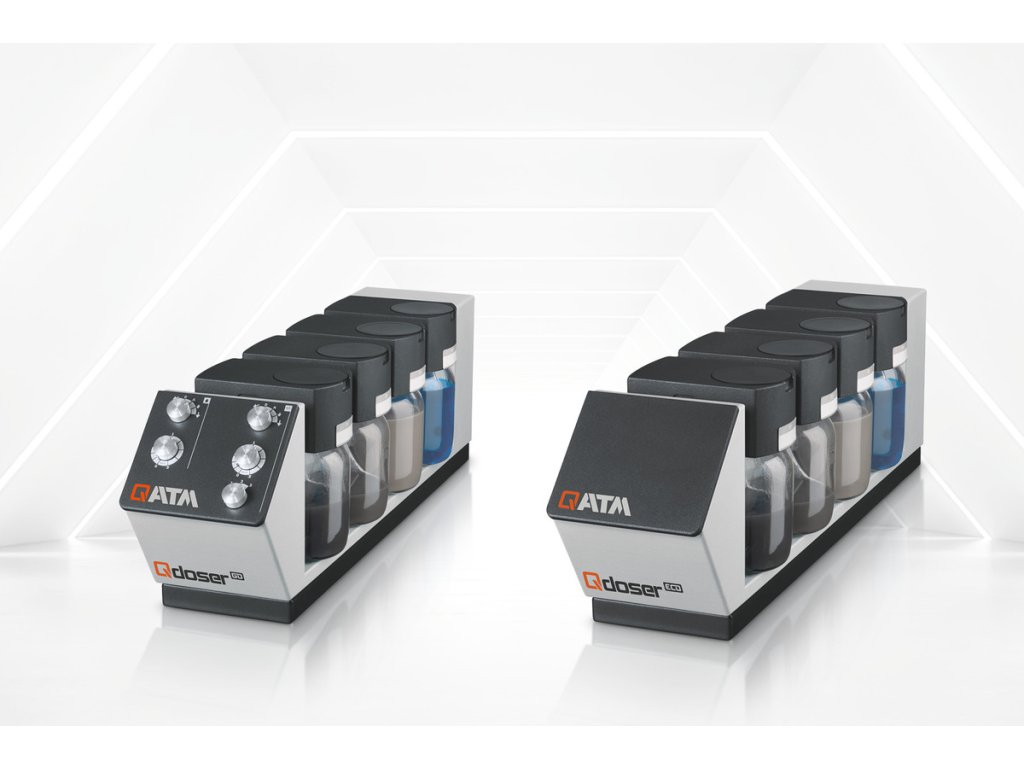

Dosing system (option) Qdoser GO
Polishing head (retrofittable option) Qpol GO




BROŽURY:

pdf Brožura k SAPHIR 250/300 M/A ECO SÉRIE (3 MB)

pdf OSTATNÍ BROŽURY KE STAŽENÍ...


VIDEA:



OSTATNÍ VIDEA KE SHLÉDNUTÍ.....



Hmotnost 28.8 kg
Země původu DE
Pracovní kotouč Ø 250 až 350 mm
Otáčky kotouče 30 až 600/min, continuously adjustable
Connection power 2,3 kVA
Drive power (main drive) 2X 0.75 kW S1
Water connection 1x fresh water connection R½" max. 6 bars
Rozměr (Š x V x H) zařízení 901 x 265 x 710 mm
Hmotnost základního stroje ~ 57 - 65 kg
Dosing system (option) Qdoser GO
Polishing head (retrofittable option) Qpol GO
