Popis
QPOL GO

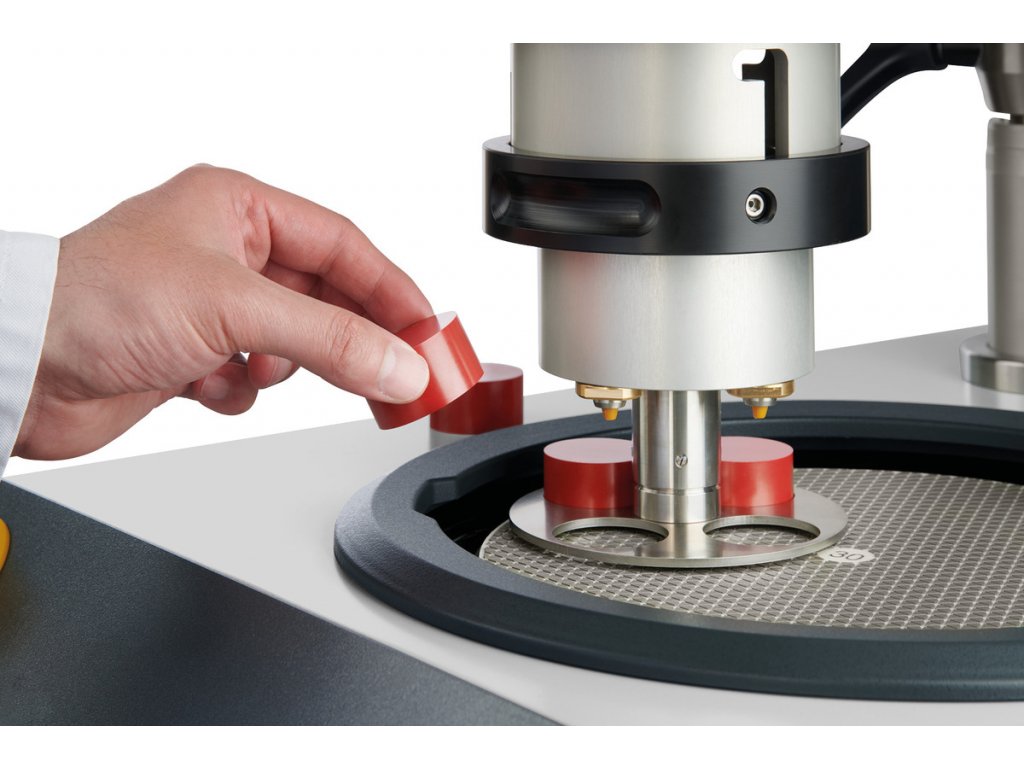

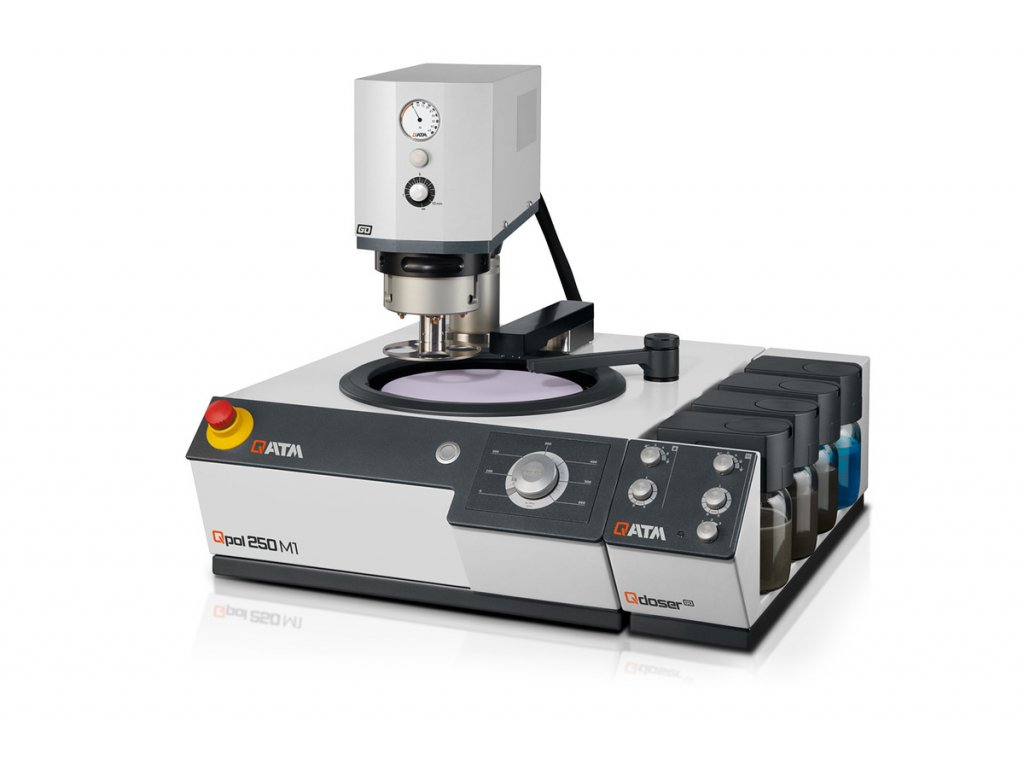

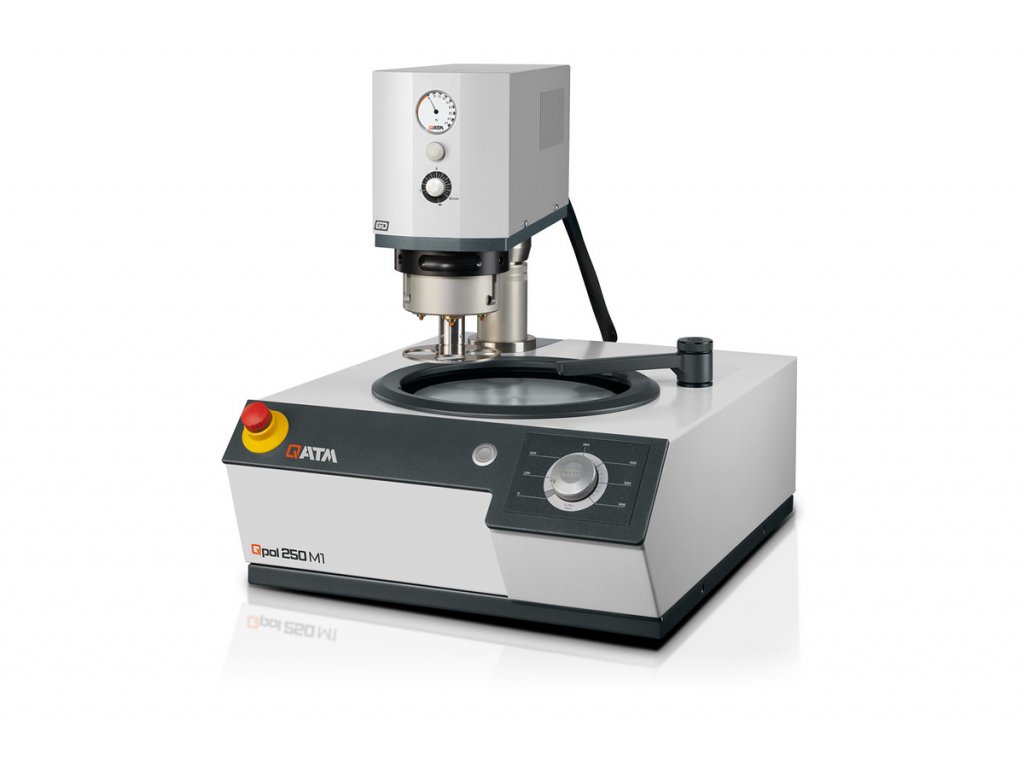

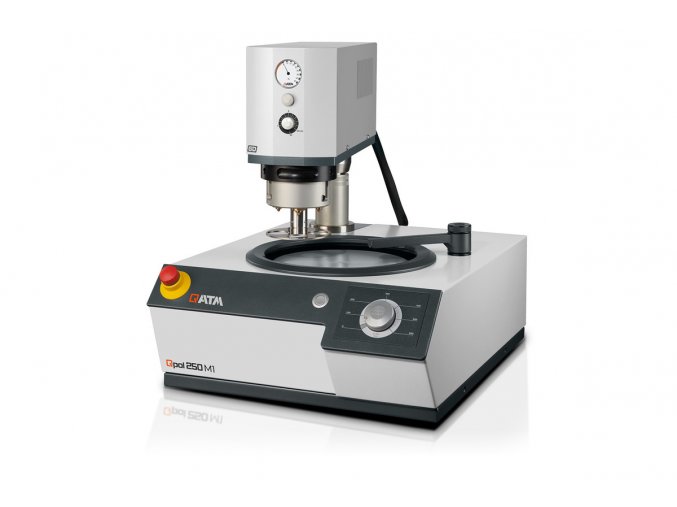

The Qpol GO grinding and polishing head enables the perfect introduction to automatic sample preparation and can be combined with the single and twin wheel grinding and polishing machines Qpol 250 M1 / 2 and Qpol 300 M1 / 2.
The established technology, simple construction and the intuitive operating concept allow simple and fast preparation steps. The grinding/polishing pressure (single pressure) and the preparation time can be continuously adjusted using the corresponding rotary control directly on the grinding and polishing head. The working area of the polishing head is easily accessible and visible thanks to LED illumination and the particularly slim design.
The robust device can be combined with a dosing dropper bottle that can be screwed onto the polishing head or the Qdoser ECO dosing system and offers maximum flexibility for sample preparation and operating convenience. With the appropriate preparation, Qpol GO can also be retrofitted on the manual grinding machines.
POPIS PŘÍSTROJE:
- Variable single pressure
- Adjustable timer for preparation time

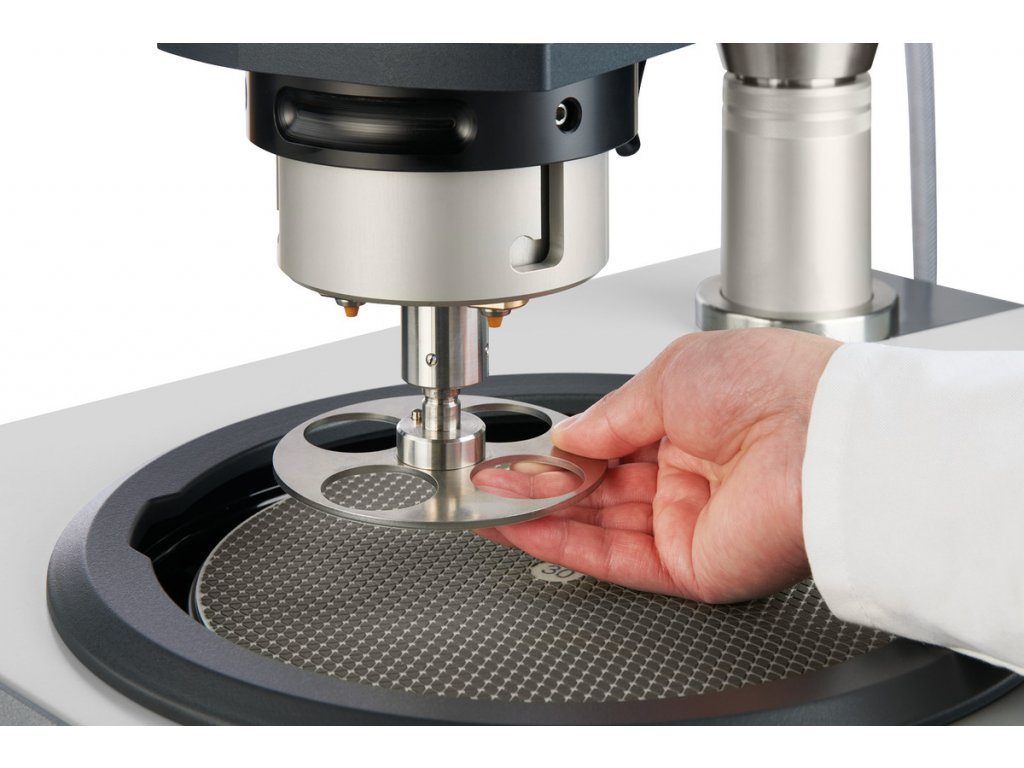

- Toolless sample holder clamping
- Aluminium case, powder coated

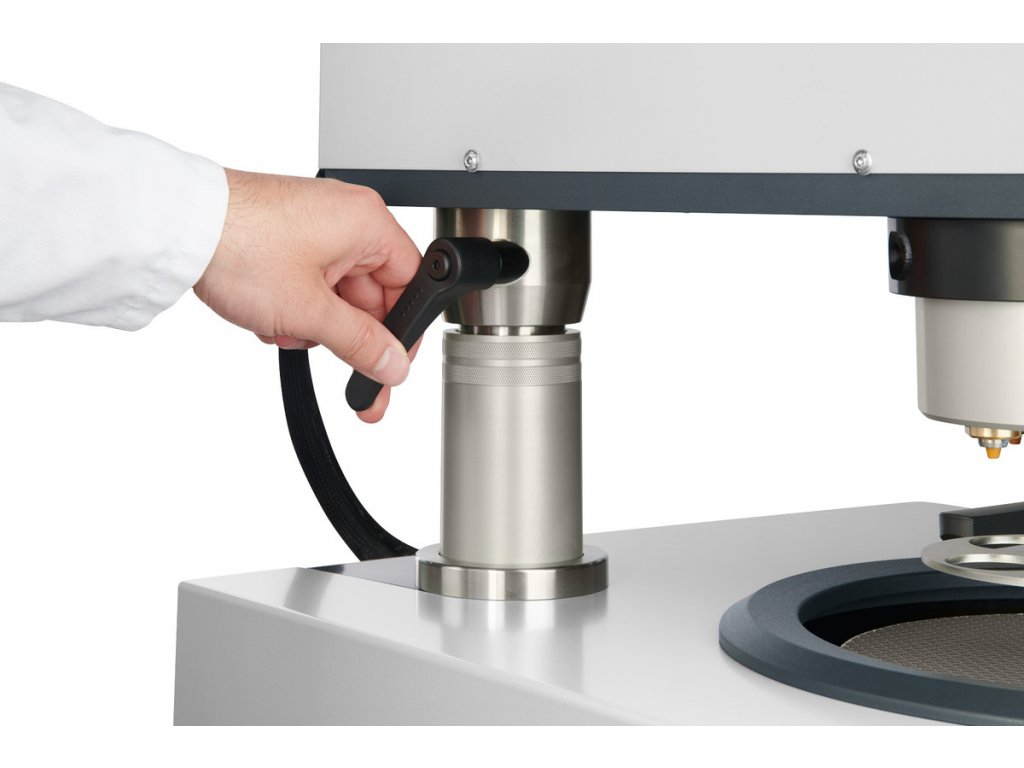

- Retrofittable on Qpol 250/300 M machines
- Economic LED illumination
PARAMETRY:
| No. of samples (single pressure) | 1 - 4 samples Ø 40 mm |

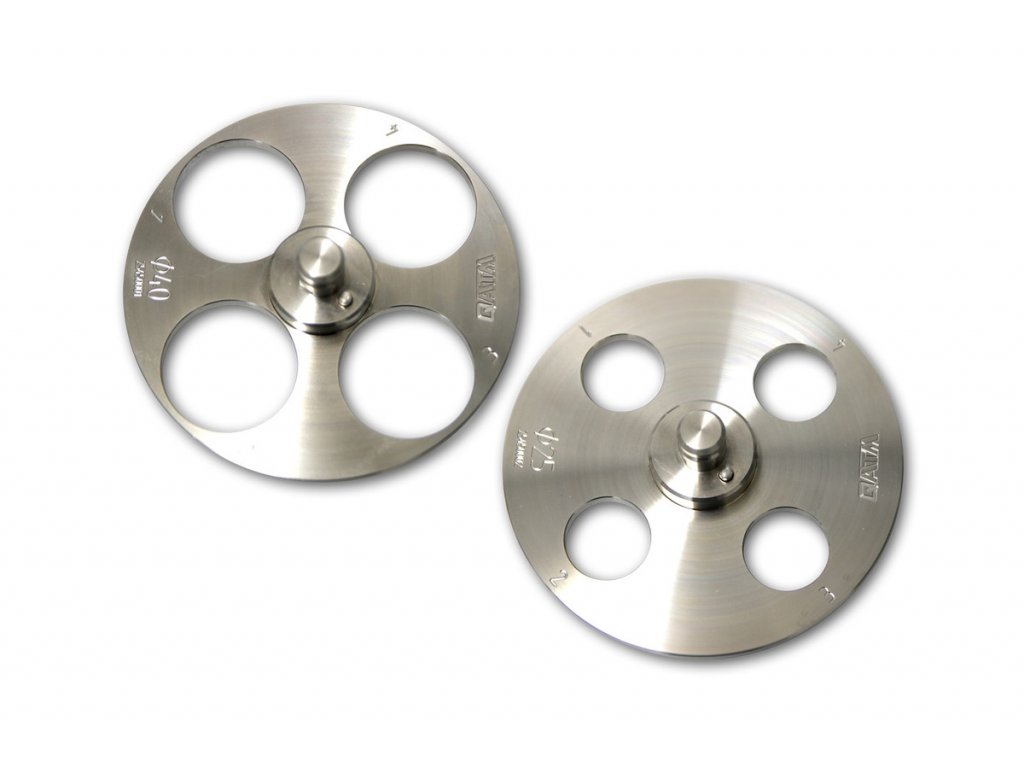

| Sample holder | Ø 120 mm |
| Single pressing force | variable, 5 - 45 N |
| Speed (head) | 150 min-1 |
| Drive power (head) | 60 W |
| Weight | 18.5 kg |
VIDEA:
OSTATNÍ VIDEA KE SHLÉDNUTÍ.....
Podobné produkty
| Hmotnost | 20.7 kg |
| Ik | |
| Číslo celního sazebníku | 84798997 |
| Země původu | DE |
| No. of samples (single pressure) | 1 - 4 samples Ø 40 mm |
| Sample holder | Ø 120 mm |
| Single pressing force | variable, 5 - 45 N |
| Speed (head) | 150 min-1 |
| Drive power (head) | 60 W |
| Weight | 18.5 kg |
