QNESS 150 CS ECO

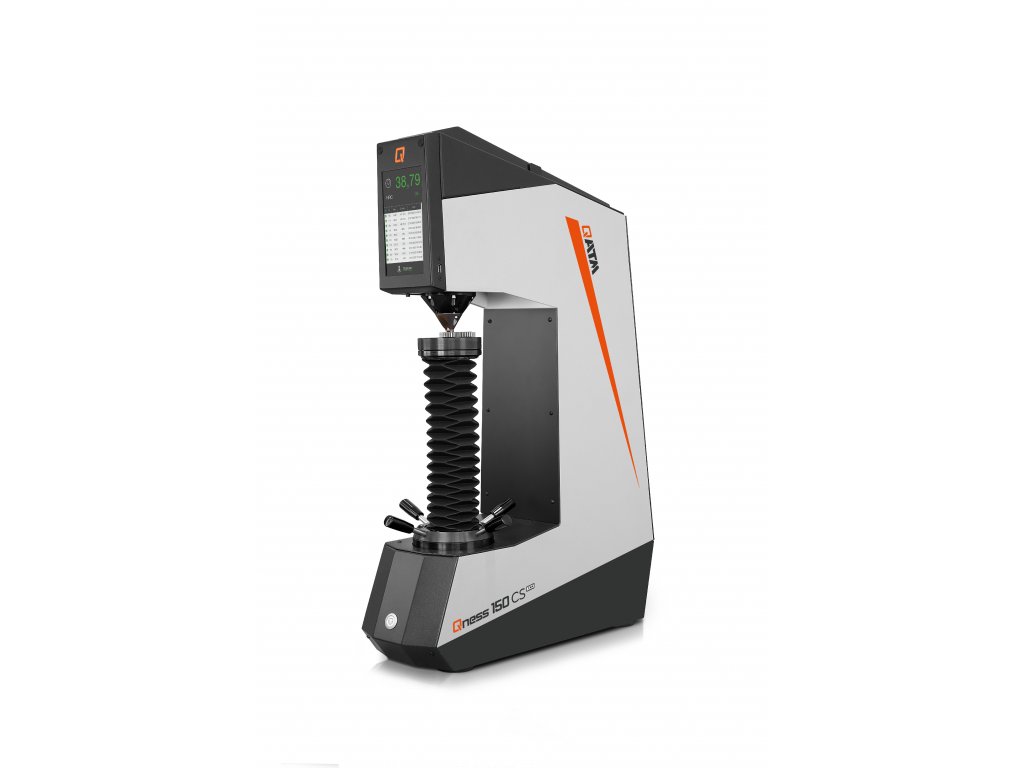

Tvrdoměr Rockwell QNESS 150 CS ECO



Q150 ECO  1 kg – 250 kg (9.81 - 2452 N)



The characteristic "C" shaped machine frame in robust and compact design (“S” for “small”) gives the Qness 150 CS ECO its name. As part of the QATM ECO product line this Rockwell hardness tester combines high-quality workmanship with maximum operation simplicity.



CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Cena dle konfigurace na dotaz
Kód produktu Q150ECO
Značka QATM
Kategorie Tvrdoměry Rockwell


Tvrdoměr Rockwell Q150 ECO

Q150 ECO  1 kg – 250 kg (9.81 - 2452 N)



BROŽURY, VIDEA


The characteristic "C" shaped machine frame in robust and compact design (“S” for “small”) gives the Qness 150 CS ECO its name. As part of the QATM ECO product line this Rockwell hardness tester combines high-quality workmanship with maximum operation simplicity.

The proven concept with fixed test head and up/down moving spindle has been standard in hardness testing for many decades and is ideally suited for small to medium-sized test pieces and application in almost any work surroundings.




 PŘEDNOSTI TVRDOMĚRU



  • Large test force range (1 kg - 250 kg)
  • Direct depth gauging system
  • Robust, welded steel frame
  • High-quality steel sheet covers
  • Integrated LED workspace lighting
  • Capacitive 7” touch screen display

MAXIMUM QATM PRECISION - NORMCOMPLIANT WITH A DIRECT DEPHT-GAUGING SYSTEM

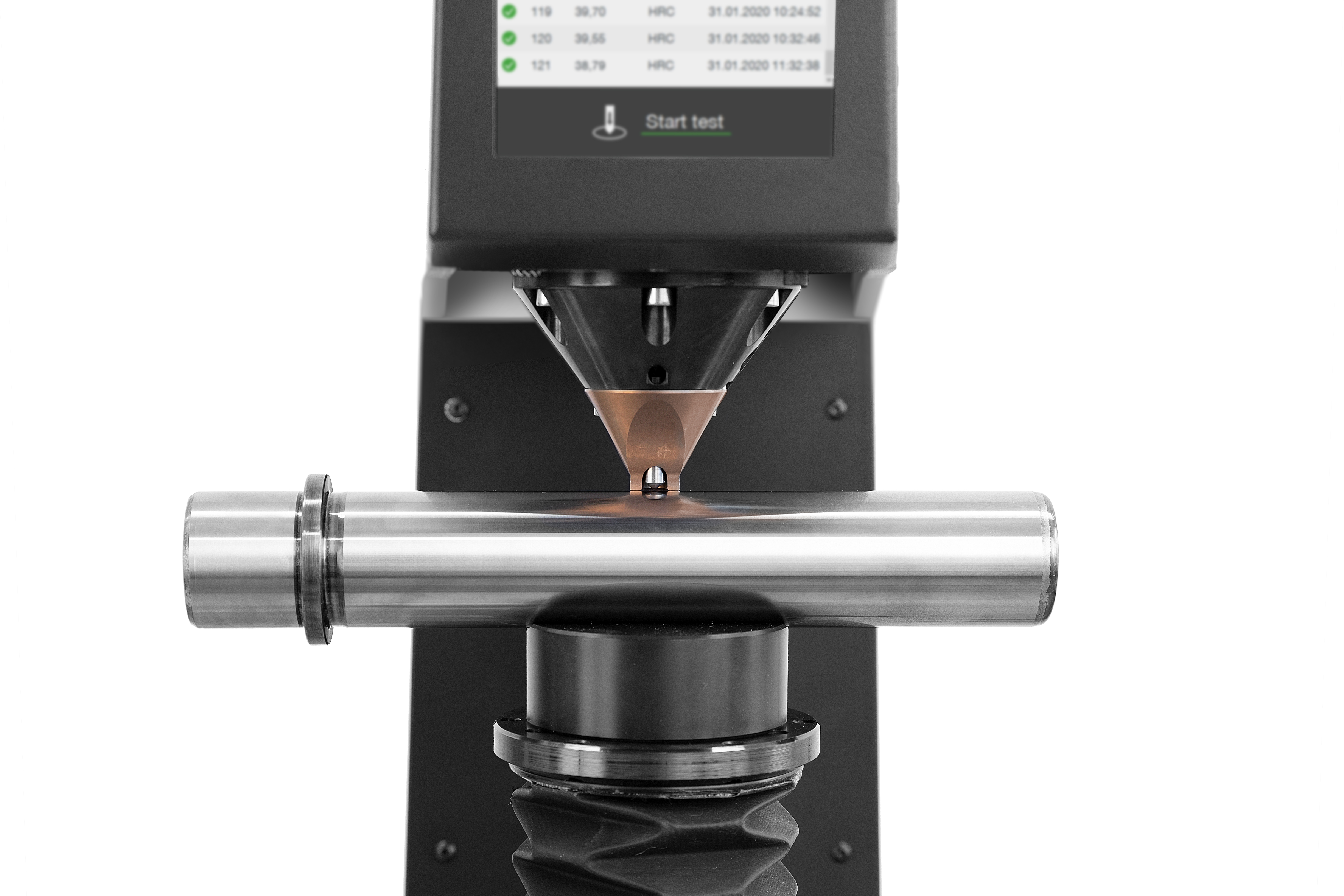

Qness-150-CS-ECO-06

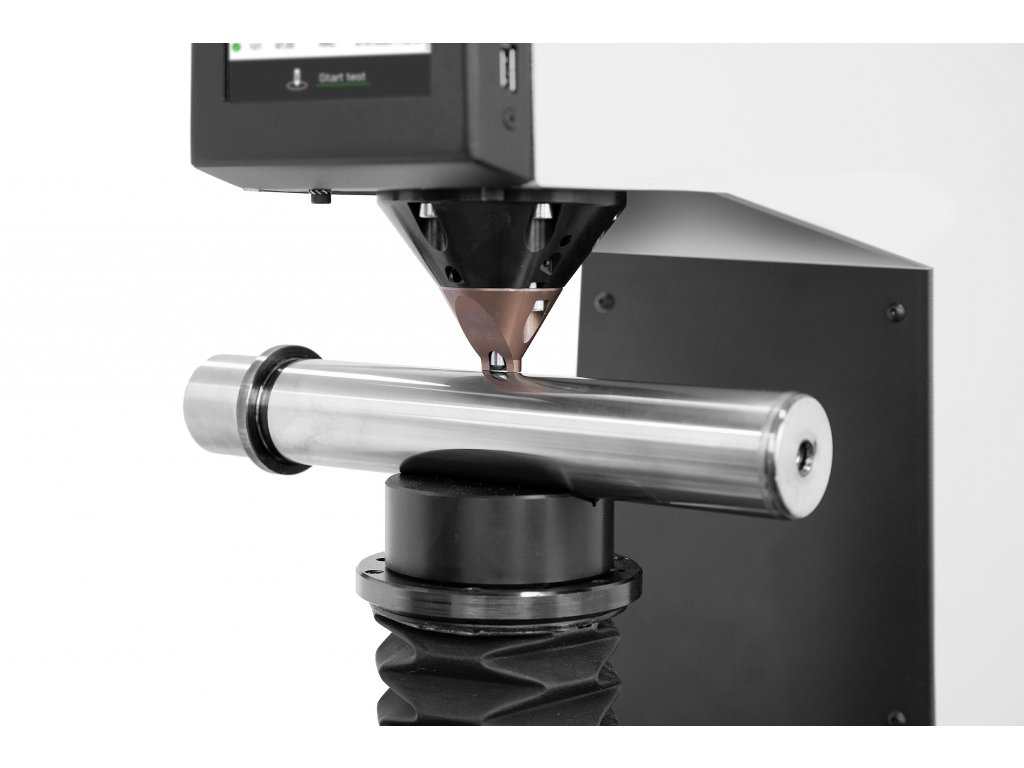

QATM configures the Qness 150 CS ECO with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and absolutely, and can be easily calibrated in accordance with the latest Rockwell norms ASTM E 18:2020 and DIN EN  ISO 6508.




ROZSAH TESTOVACÍ SÍLY A APLIKACE SÍLY



Q150 ECO  1 kg – 250 kg (9.81 - 2452 N)



Testovací síla je vyvozena elektronicky a je kontrolována přesnými dynamometry. Výhodou tohoto provedení je výrazně větší měřící rozsah, snadná a rychlá změna zkušebního zatížení a bezúdržbovost systému.


PODPOROVANÉ ZKUŠEBNÍ METODY A KONVERZE







150eco 1A 150eco 2

SOPHISTICATED MACHINE CONSTRUCTION, ULTRA-SIMPLE OPERATION


COMPACT DESIGN - LATEST TECHNOLOGY

 llproductsqness150cs-ecofeaturescompactdesignhl

Modern features provided as standard:

  • Controlled force application (1kg to 250kg)
  • Direct depth-gauge-system (0.05μm resolution)
  • Robust welded stell frame and sheet-stell covers
  • 7” color touchscreen operation with Qpix TE software
  • Digital data delivery via USB interface
  • Fully automated test cycle: Electronic force application and closed-loop control

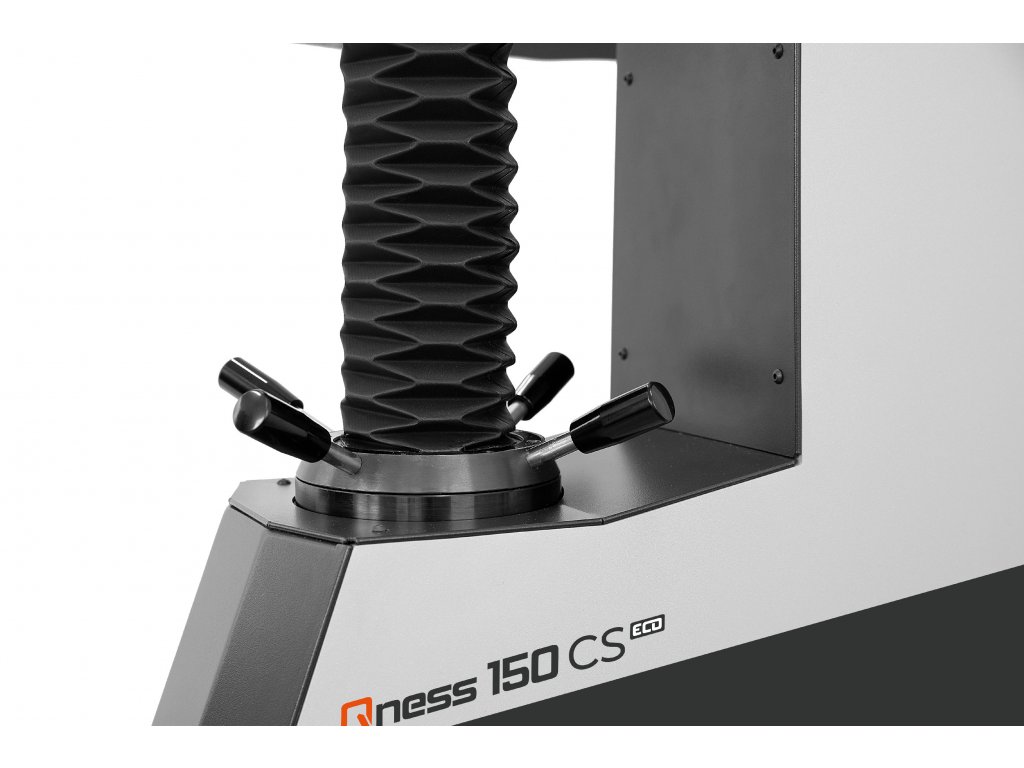

TEST TABLE HEIGHT ADJUSTMENT

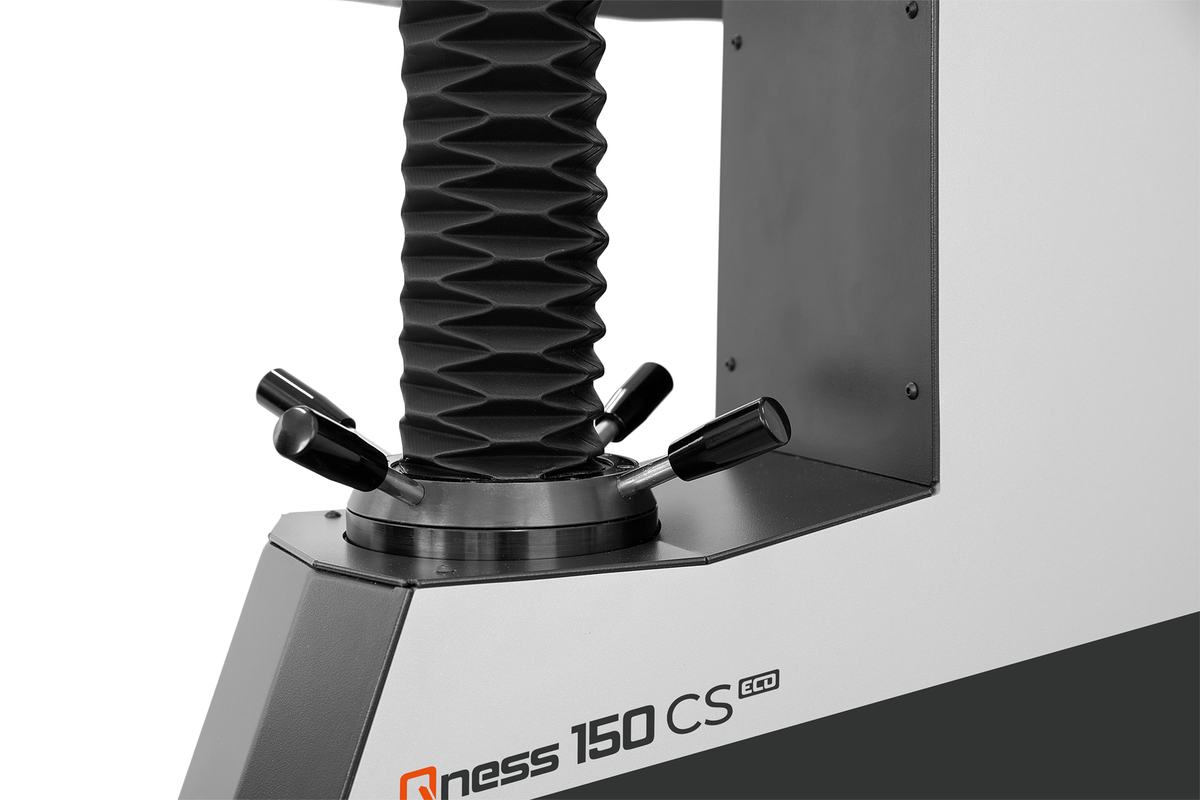

llproductsqness150cs-ecofeaturestesttablehl Via stable, ultra-precise roller-bearing spindle guide. Solid, nomaintenance structure. All devices are available with a Ø25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.

MADE IN AUSTRIA



llproductsqness150cs-ecofeaturesmadeinaustriahl Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our Qness 150 CS ECO series. Developed and manufactured in Austria!

INTUITIVE FEATURES AND OPERATION

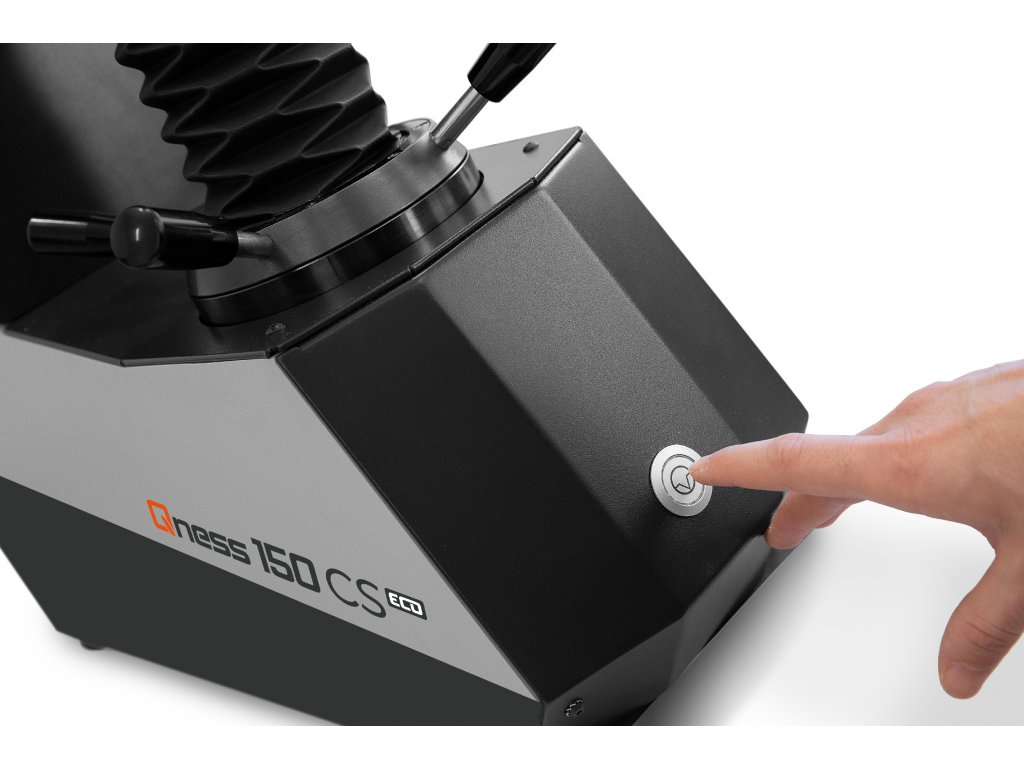

START BUTTON

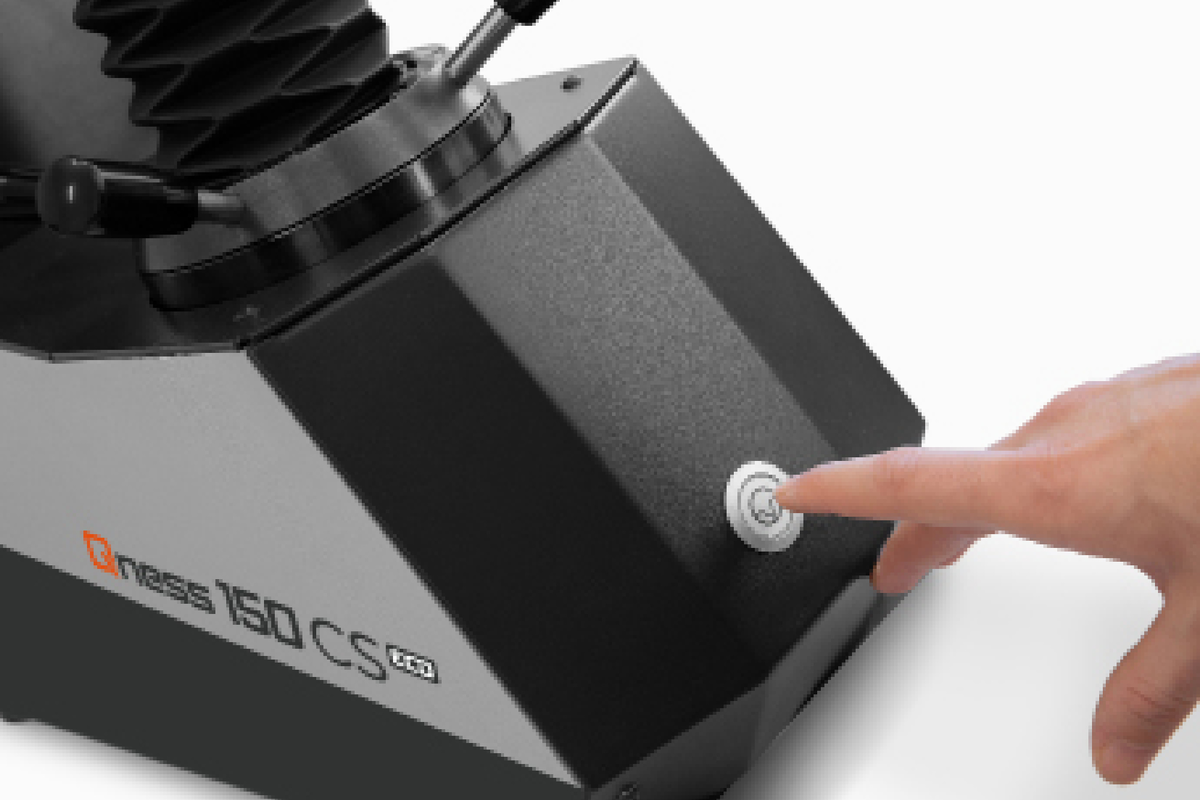

llproductsqnessfeatures02startbuttonhl Start button at the front of the tester ensures a simple and rapid start to hardness testing (particularly when wearing gloves), and there’s also touchscreen control.

REMOVABLE DOWNHOLDER



llproductsqnessfeatures02downholderhl

No need for long retooling breaks due to inaccessible test points. The clamping head can be removed via 2 screws. Now, even test points in hard-to-reach contours can be accessed with ease.

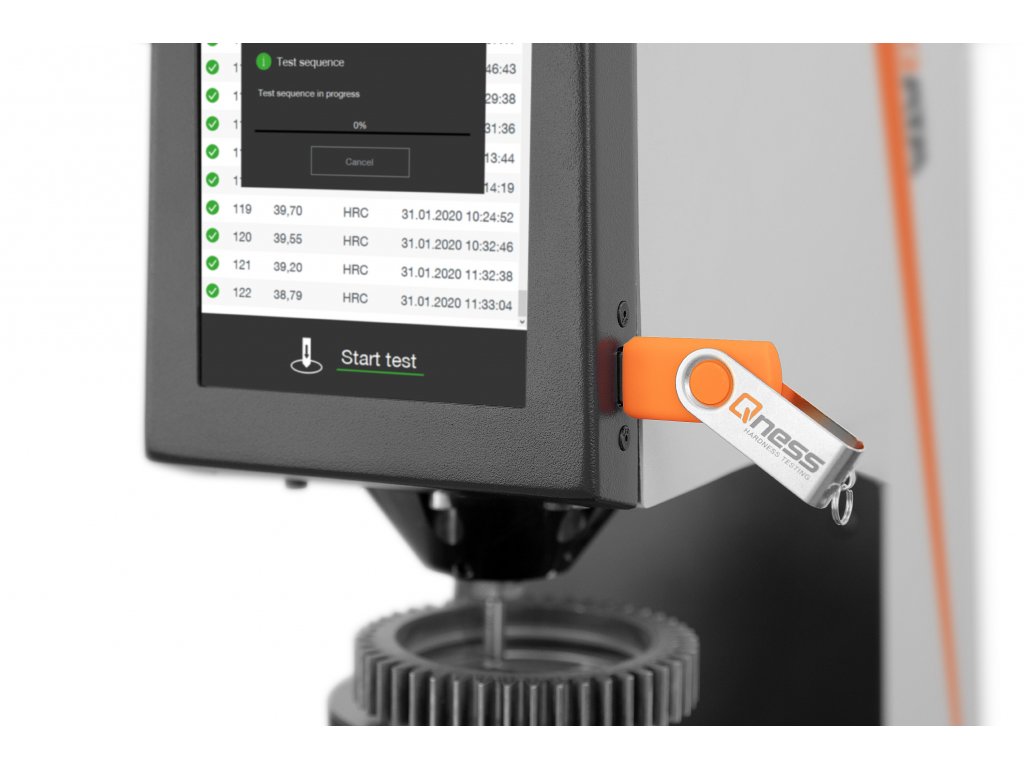

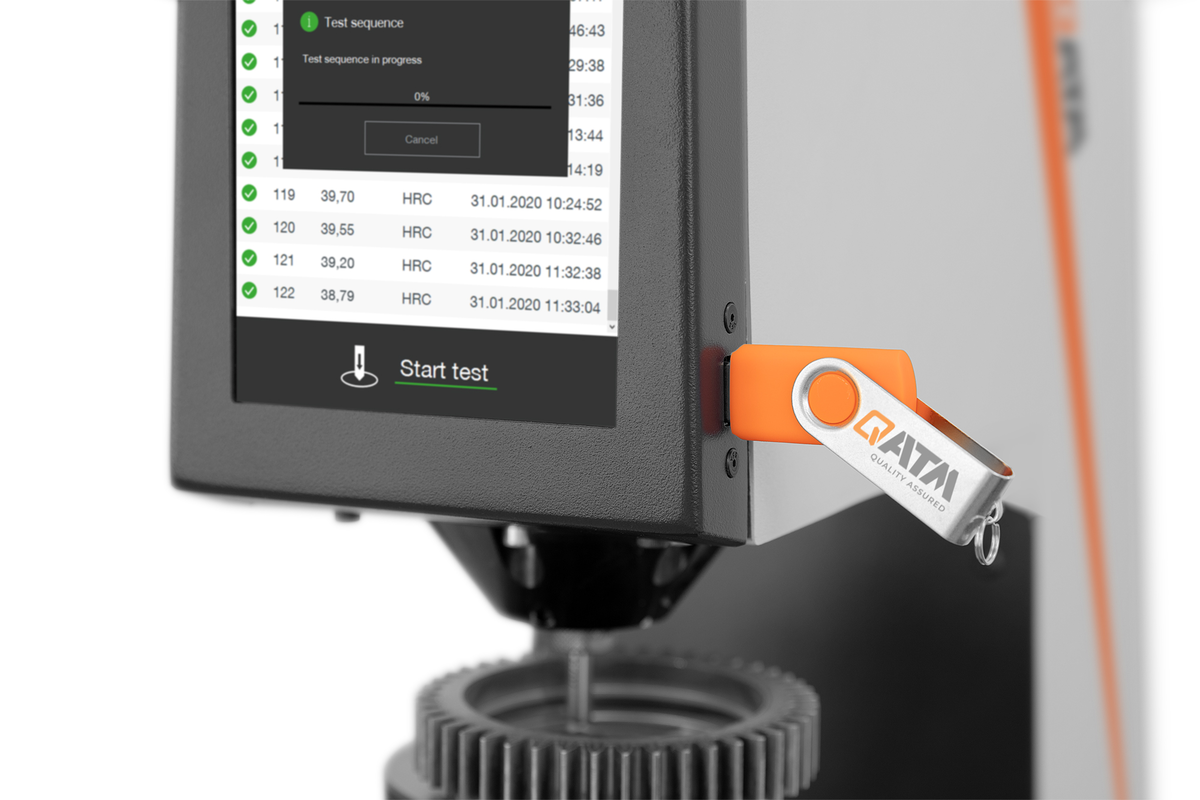

DIGITAL DATA EXPORT





llproductsqnessfeatures02dataexporthl

Test results and all related information can be transferred to other data storage mediums via the USB port at the side.


THE PERFECT INTRODUCTION TO ROCKWELL HARDNESS TESTING


AT HOME EVERYWHERE: FOR INCOMING GOODS, WORKSHOPS, LABORATORIES AND SERIAL PRODUCTION



alpha (2)

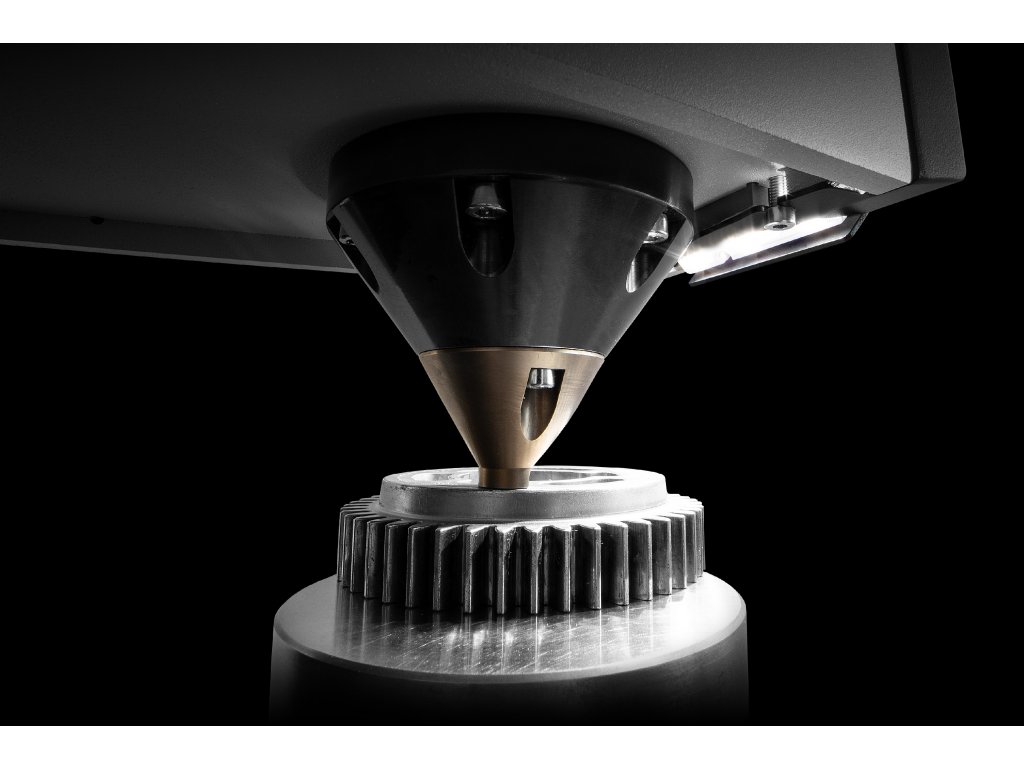

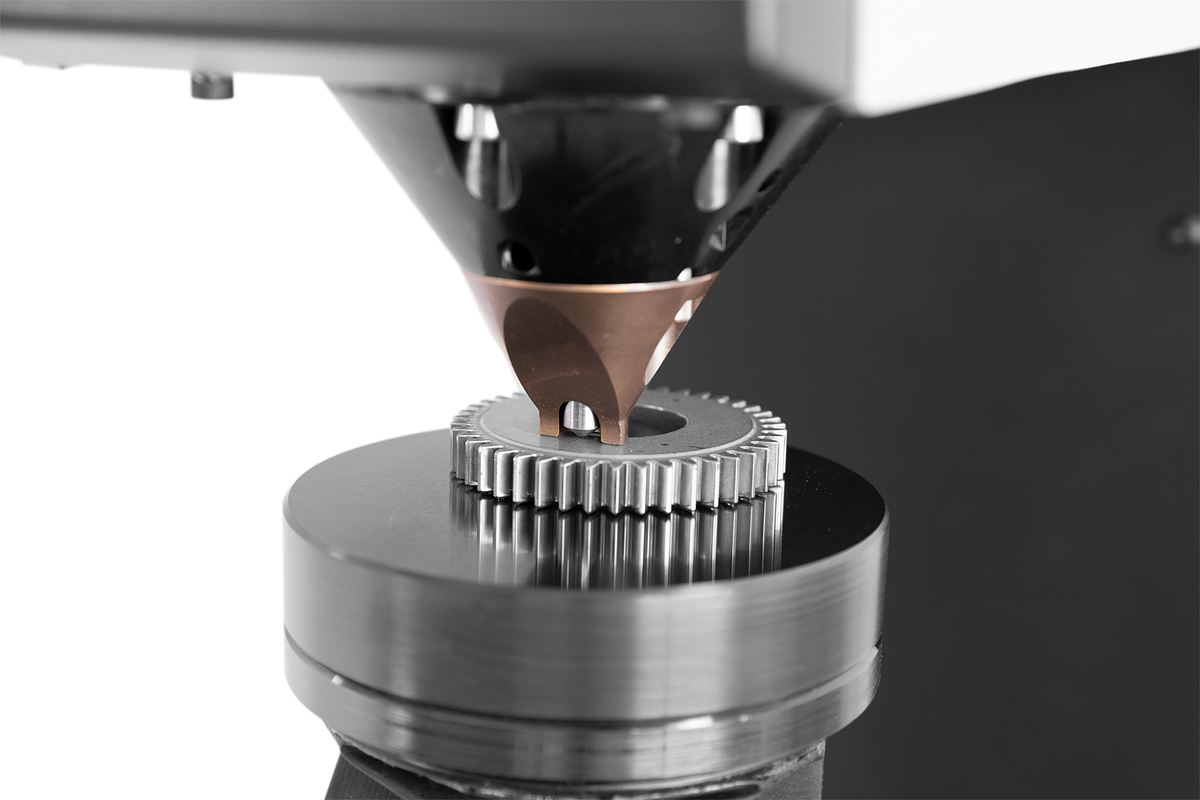

Built-in LED workspace lighting simplifies the precise positioning of the test piece, thus enhancing operating convenience.


OPERATION DISPLAY AND QPIX TE-SOFTWARE



alpha (1)

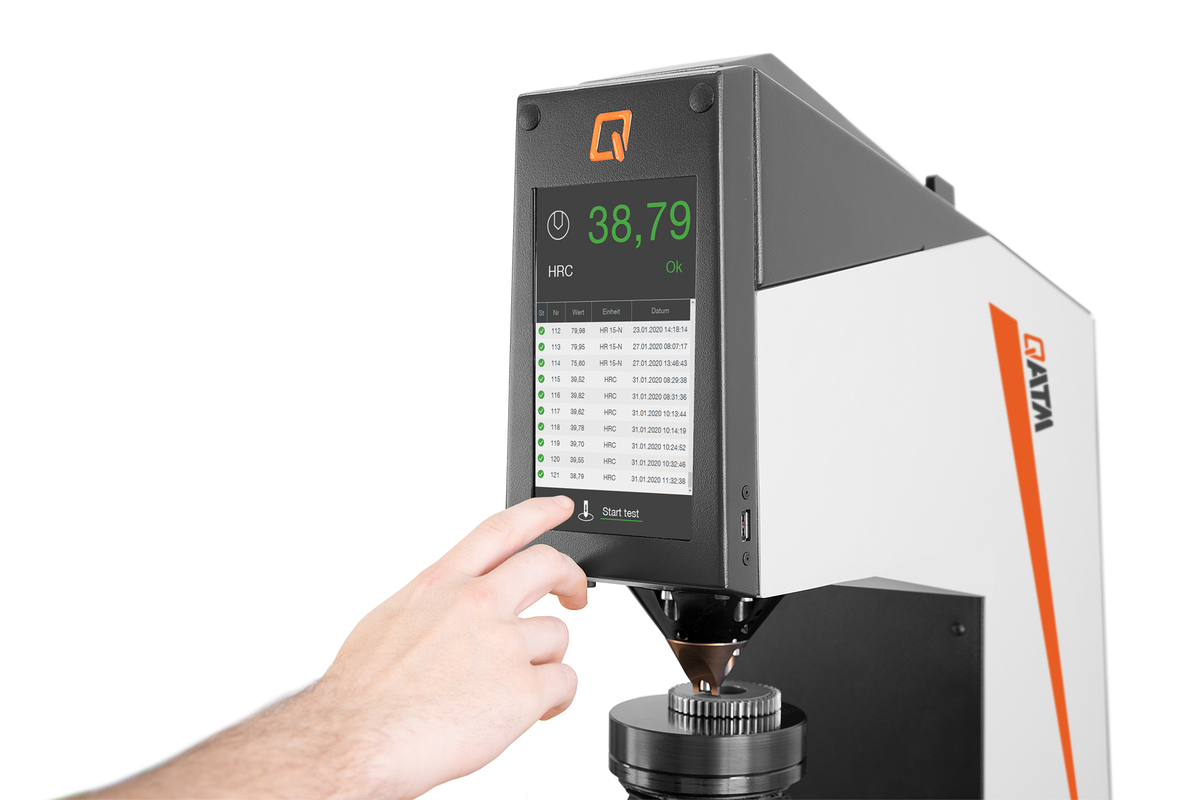

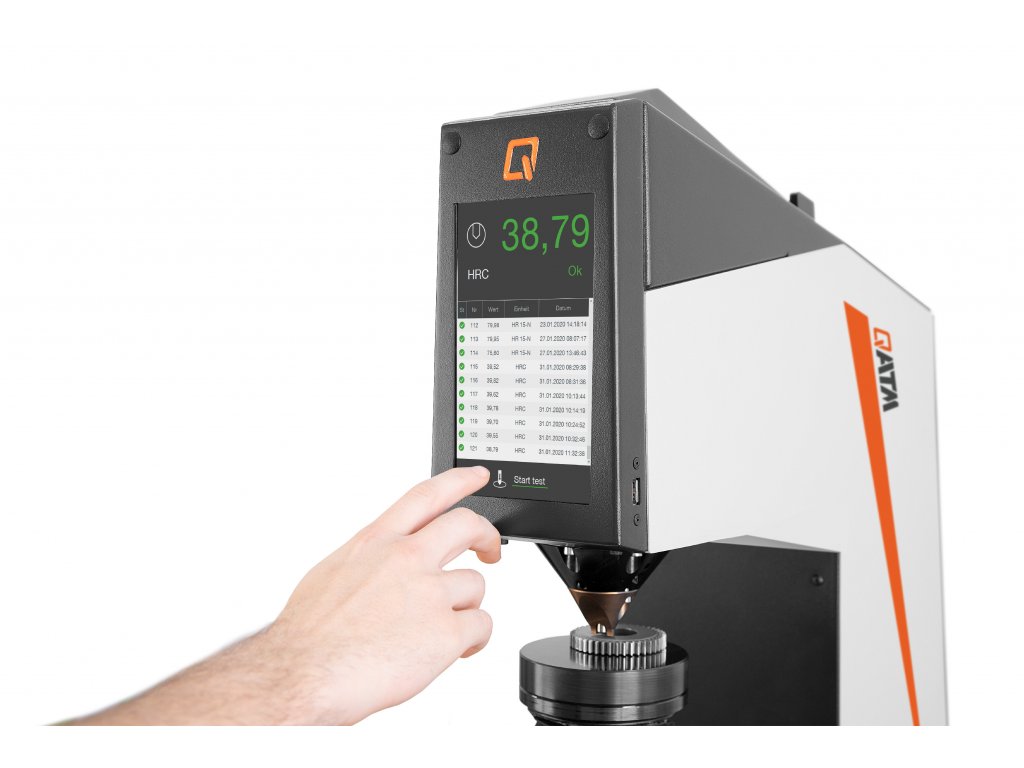

QATM has developed a 7” color display with a robust sheet steel frame for the Qness 150 CS ECO. The display uses capacitivetouch technology and has been optimized to guarantee operational precision and rapid reaction times. The new Qpix TE software guarantees simple operation with larger buttons and a more modern and intuitive software interface.

Features:

  • Extra-large, clearly-visible presentation of test results
  • High-/low-quality evaluation of results featured in green and red according to the tolerance levels set
  • Test results list for 999 values
  • Statistics overview (min/max/range/cp/cpk/average)
  • Conversion
  • Surface corrections
  • Simple test method changeover
  • Wide range of operating languages
  • Password protected area for expanded range of settings



PARAMETRY:



Test force range 1 - 250 kg (9.81 - 2452 N)
Height adjustment manual / spindle
Test height 250 mm
Throat depth 157 mm

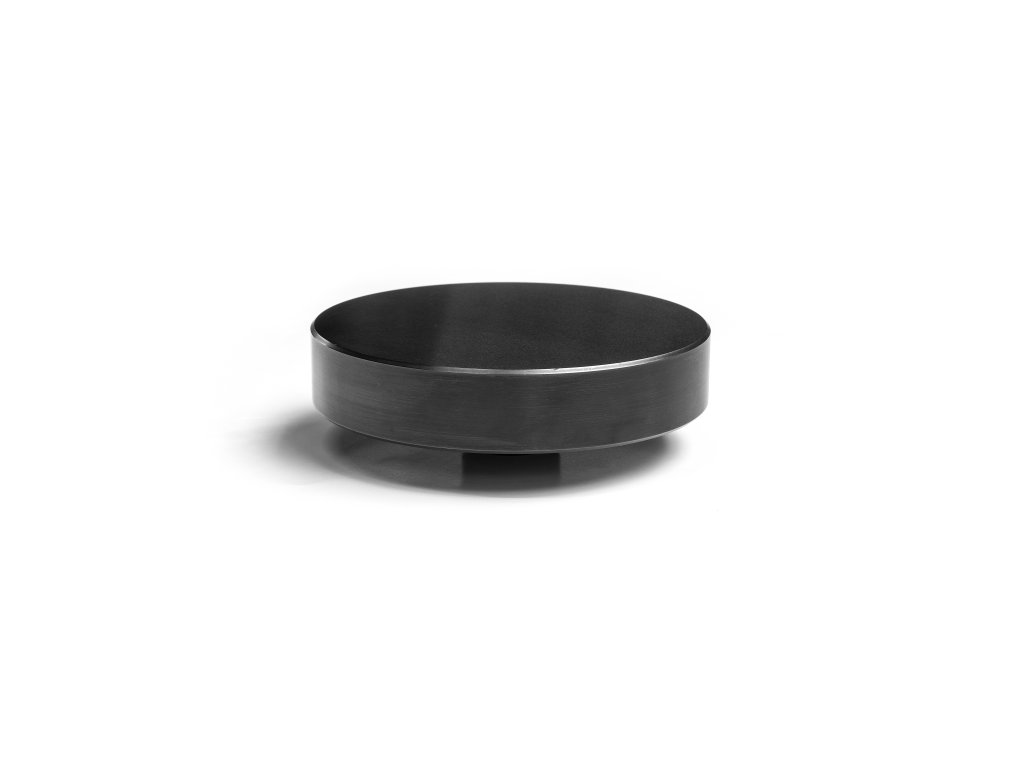

Test table Ø 100 mm
Max. workpiece weight 100 kg
Weight of basic device 77 kg
Test sequence fully automated / electronic force application
Software Qpix TE
Display 7" capacitive touch (color)
Interfaces 1x USB
Power supply 100 - 240 V, ~1/N/PE, 45 - 65 Hz
Max. power consumption ~60 W
Accessories Additional indenters, hardness test bocks, machine pedestal, prisms

BROŽURY:

pdf Brožura - Tvrdoměr Q150 ECO (895.7 kB)

pdf OSTATNÍ BROŽURY KE STAŽENÍ...


VIDEA:







OSTATNÍ VIDEA KE SHLÉDNUTÍ...





Hmotnost 0.1 kg
Test force range 1 - 250 kg (9.81 - 2452 N)
Height adjustment manual / spindle
Test height 250 mm
Throat depth 157 mm
Test table Ø 100 mm
Max. workpiece weight 100 kg
Weight of basic device 77 kg
Test sequence fully automated / electronic force application
Software Qpix TE
Display 7" capacitive touch (color)
Interfaces 1x USB
Power supply 100 - 240 V, ~1/N/PE, 45 - 65 Hz
Max. power consumption ~60 W
Accessories Additional indenters, hardness test bocks, machine pedestal, prisms
