QNESS 200 CS



QNESS 200 CS



QNESS 200 CS: 0.5 - 187.5 kg (4.9 - 1839 N)

Tvrdoměry QATM  SPEED - PRECISION - COST EFFICIENCY

During the development of the Qness 200 units, particular attention was paid to the following things: Maximum performance with minimum effort.

The proven concept with fixed test head and movable spindle, as well as its compactness give the Qness 200 CS its name, the precision-manufactured fivefold turret its speed.

With a test height of up to 250mm and a projection of 238mm, the Qness 200 is ideally suited for small to medium-sized parts.





CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Dostupnost produktu na dotaz
Kód produktu QB0140101
Značka QATM
Kategorie Univerzální tvrdoměry


QNESS 200 CS



QNESS 200 CS: 0.5 - 187.5 kg (4.9 - 1839 N)

Tvrdoměry QATM  SPEED - PRECISION - COST EFFICIENCY

BROŽURY, VIDEA

During the development of the Qness 200 units, particular attention was paid to the following things: Maximum performance with minimum effort.

The proven concept with fixed test head and movable spindle, as well as its compactness give the Qness 200 CS its name, the precision-manufactured fivefold turret its speed.

With a test height of up to 250mm and a projection of 238mm, the Qness 200 is ideally suited for small to medium-sized parts.


ROZSAH TESTOVACÍ SÍLY A APLIKACE SÍLY



QNESS 200 CS: 0.5 - 187.5 kg (4.9 - 1839 N)

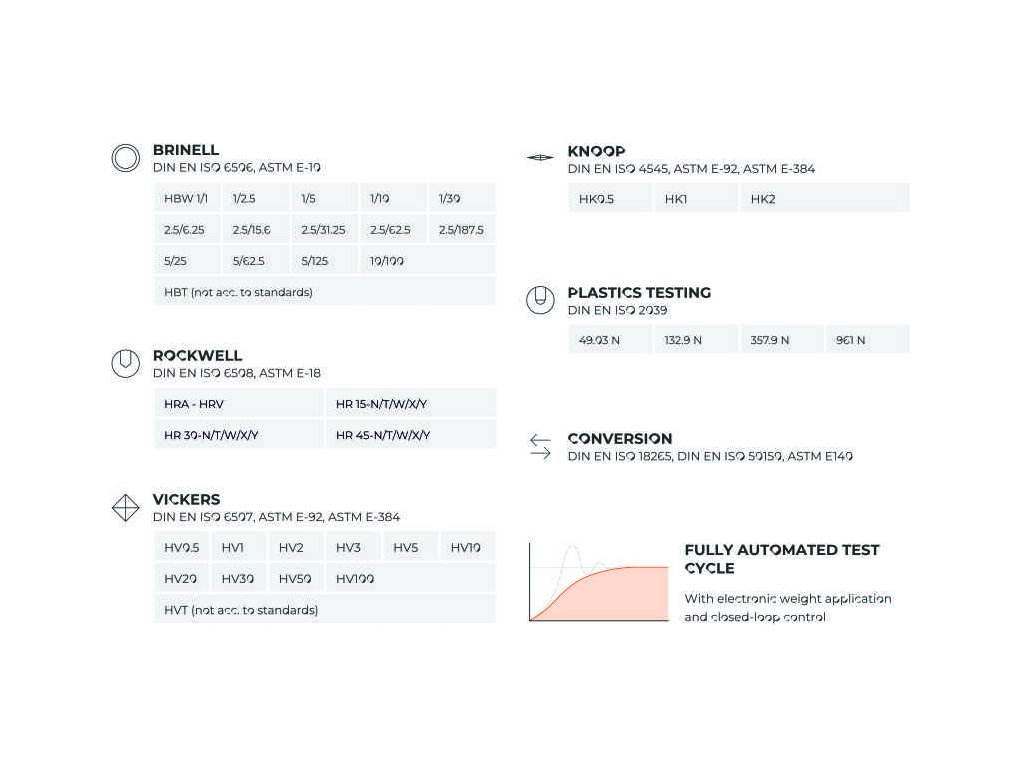

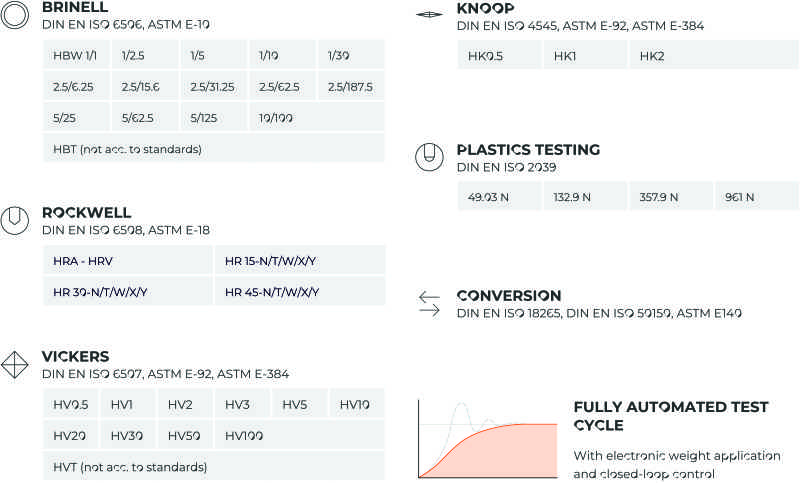

 ZKUŠEBNÍ METODY A KONVERZE



200-CSA


HIGHLY ACCURATE RESULTS IN ULTRA-SHORT TIME

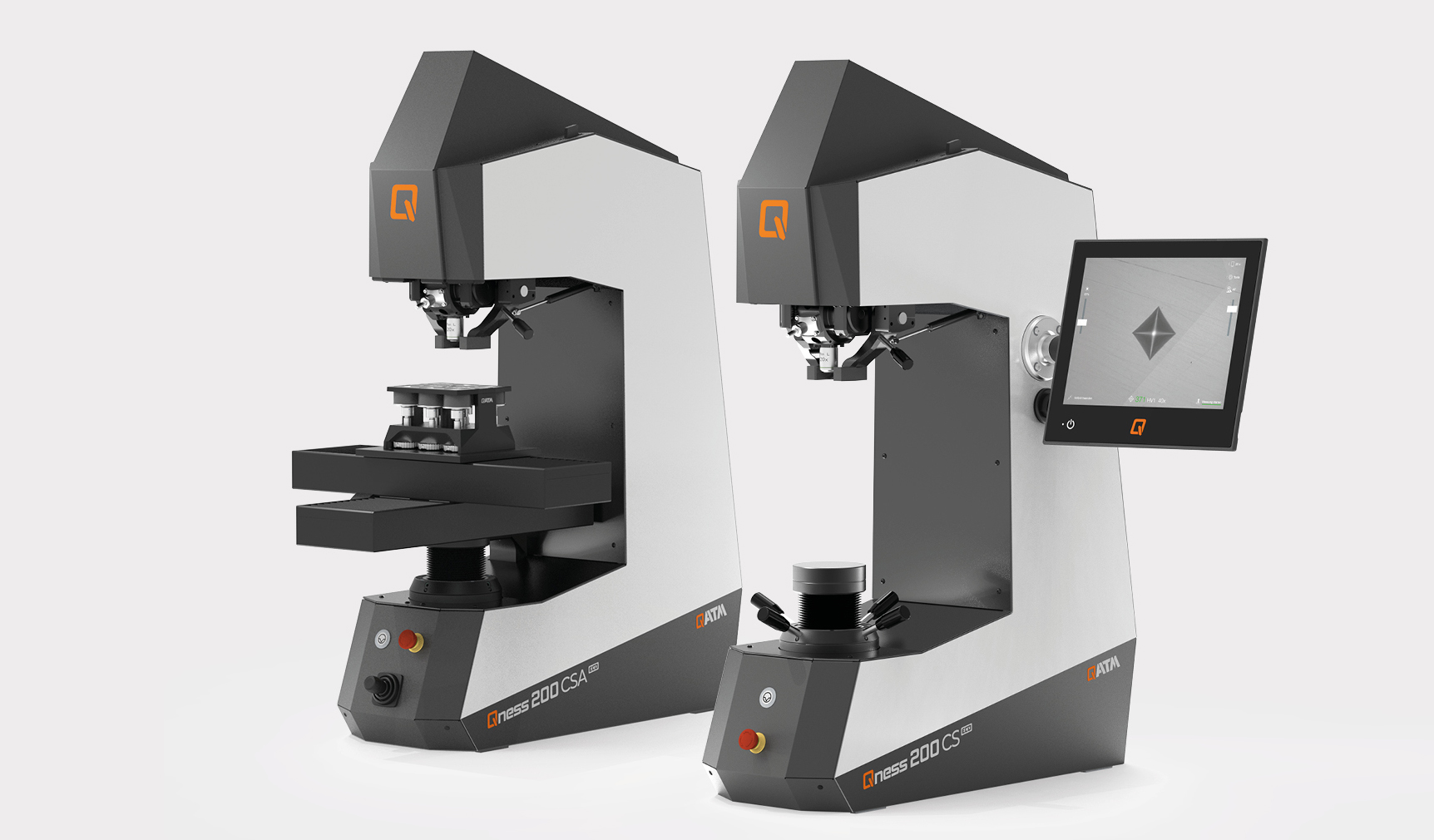

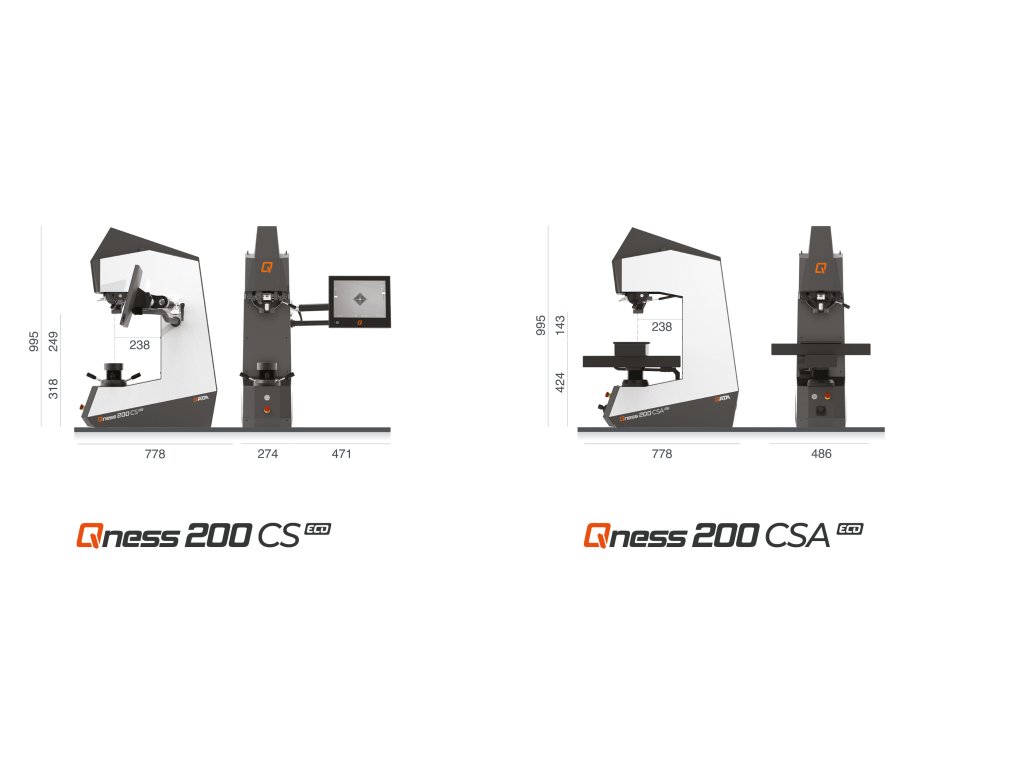

COMPACT DESIGN - LATEST TECHNOLOGY



200-CS-CSA-COMPACT-DESIGN
  • Test force ranges 0.5 kg to 187.5 kg
  • Two machine versions to serve all applications and test piece sizes
  • Direct depth measurement system with a resolution of 0.05 μm
  • Robust, welded steel frame and covers made of sheet steel

MADE IN AUSTRIA



200-CS-CSA-Austrie-Quality Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our Qness 200 CS series. Developed and manufactured in Austria!

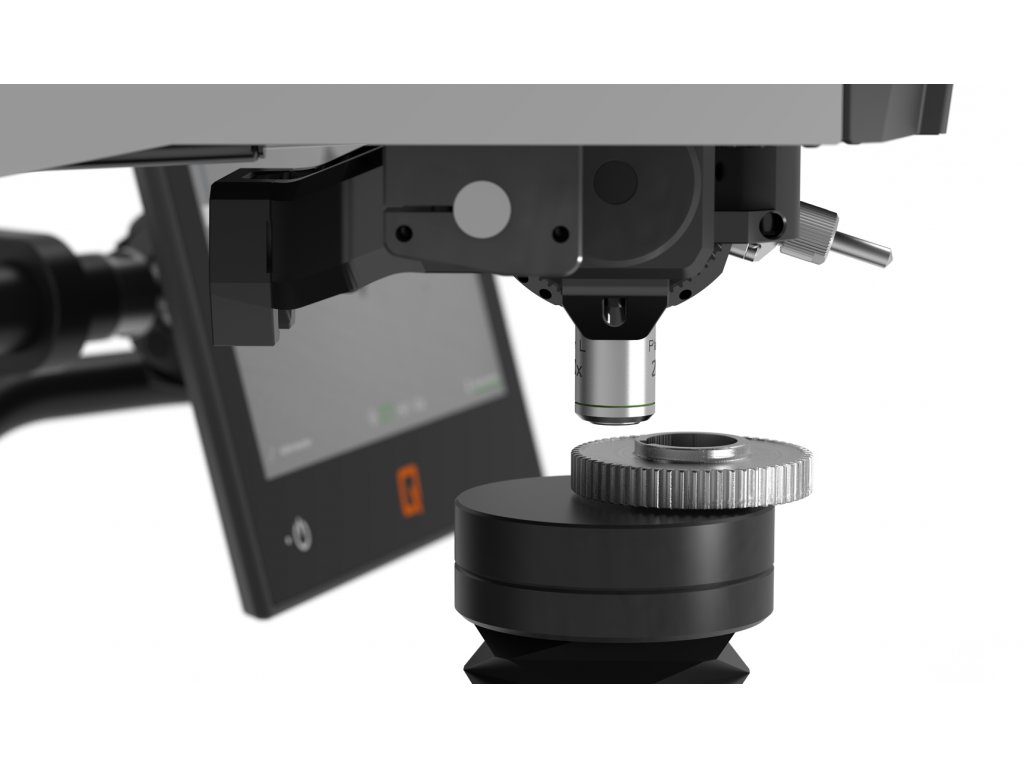

XLED BRINELL EVALUATION LENSES

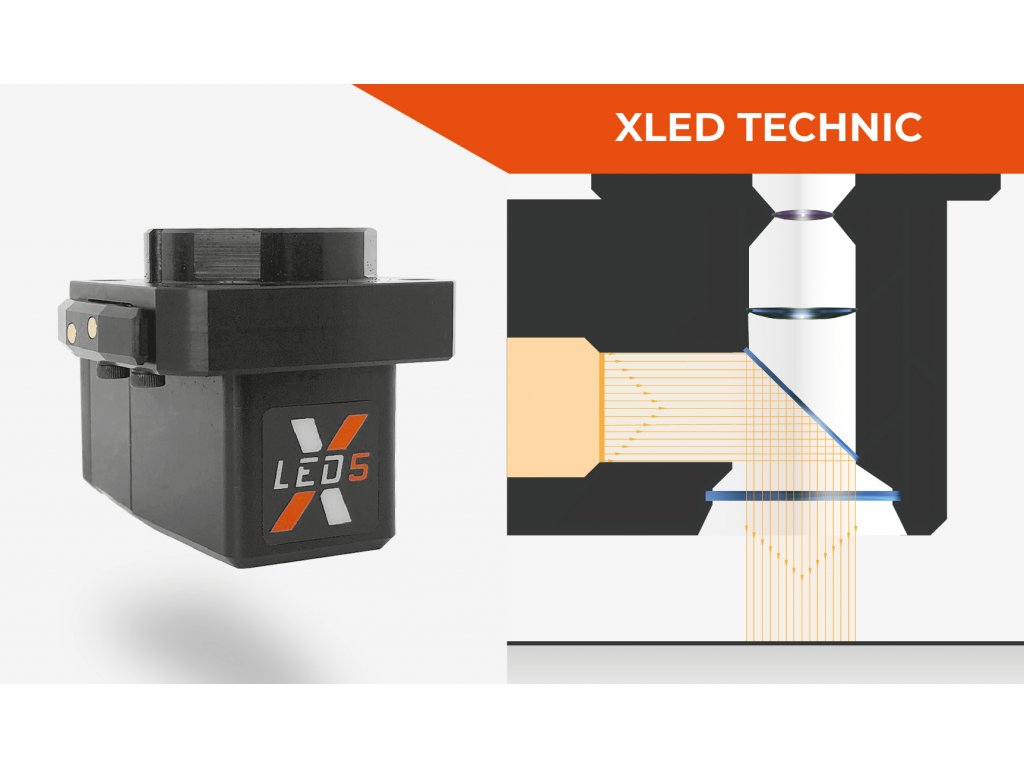

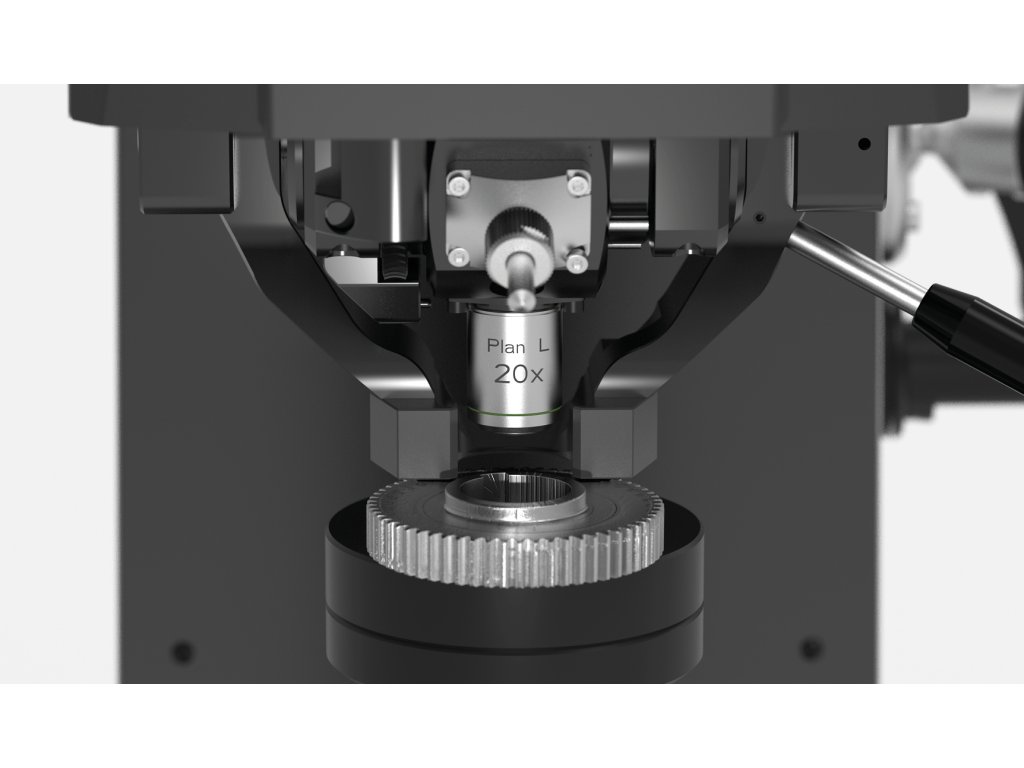

hardness-tester-evo-8-position-tool-changer XLED light modules revolutionise the evaluation of Brinell indentations: especially with soft Brinell indentations, commercially available lenses could interpret inaccurate measurement results. XLED lenses guarantee precise and repeatable measurement results through direct illumination.





SWIVELING DOWNHOLDER

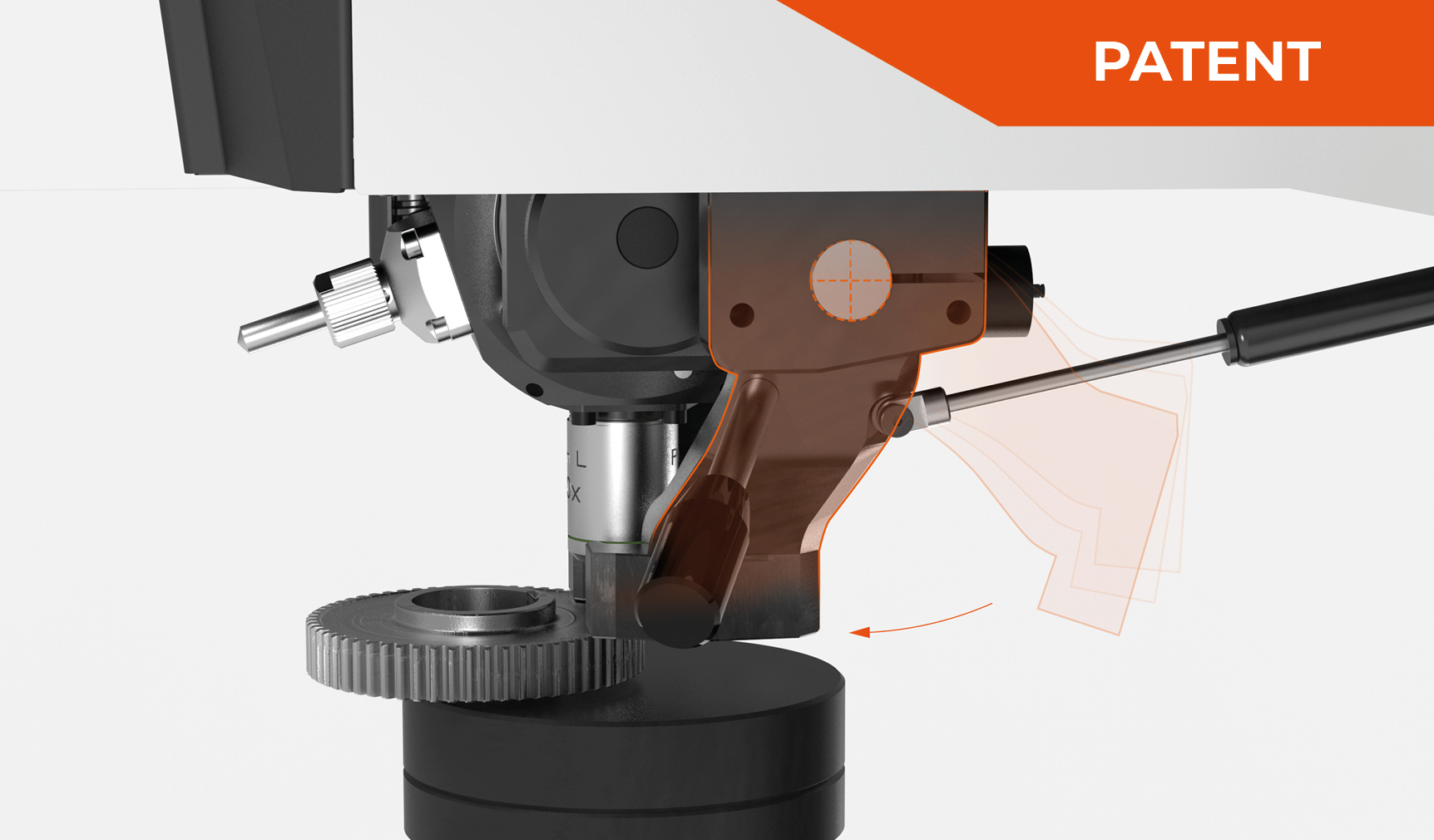

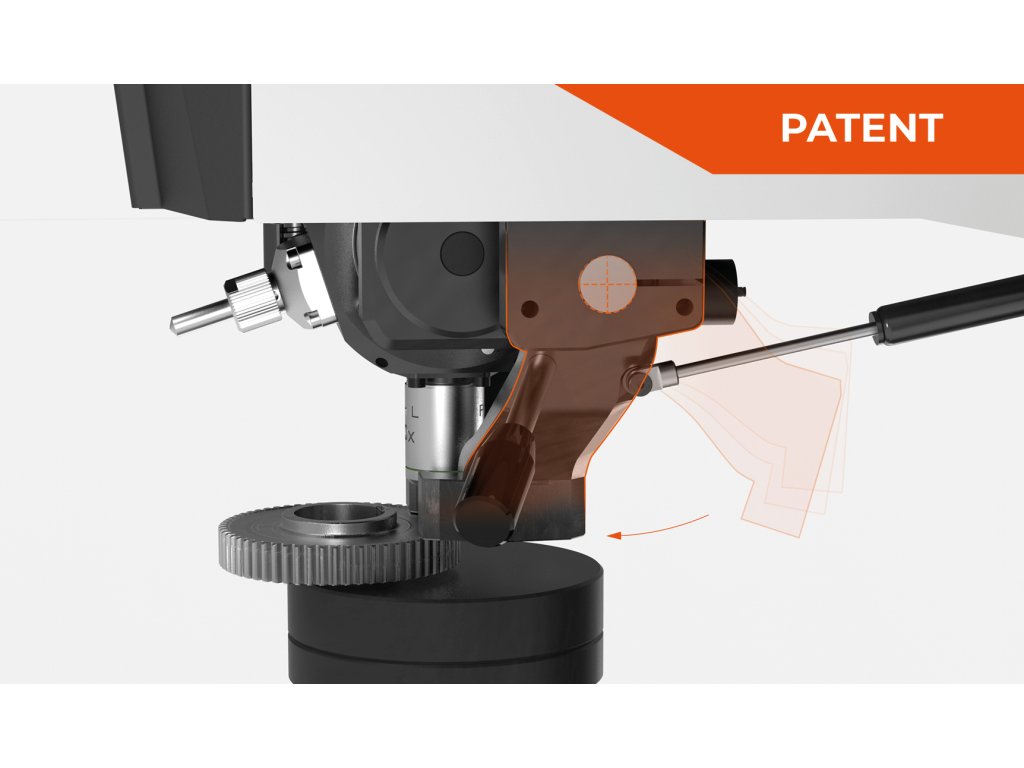

200-CS-CSA-SWIVELING-DOWNHOLDER No long tool changeovers for inaccessible test positions. The downholder can be swiveled in and out via manual action. Furthermore, the clamping elements can be changed easily and adapted to suit the customer’s component.






ETHERNETOVÉ PRŮMYSLOVÉ KAMERY

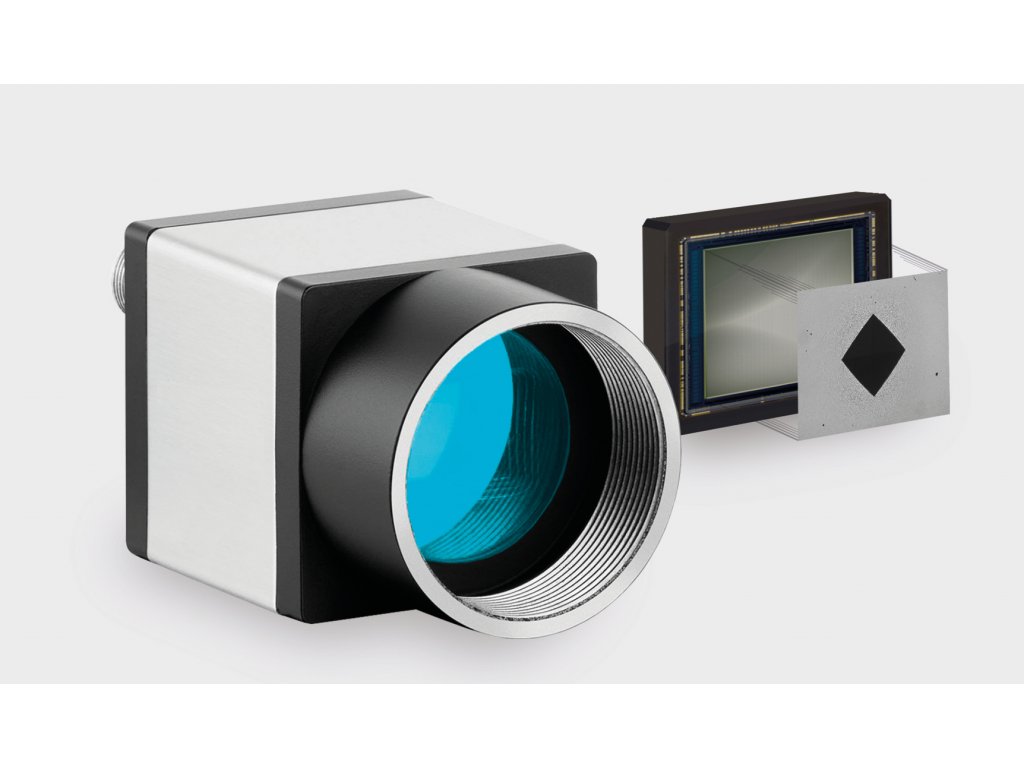

hardness-tester-evo-ethernet-industrial-cameras Tvrdoměry řady Qness 200 jsou osazeny novými ethernetovými průmyslovými kamerami, CMOS 5MP. Na rozdíl od běžných kamer jsou tyto kamery rychlejší a poskytují vyšší stabilitu přenosu obrazu, což umožňuje lepší reakci celého optického systému – obraz – světlo – zoom a celkově vyhodnocení vtisku je výrazně rychlejší. Mezi další výhody ethernetové kamery je to, že je možné tvrdoměr a řídící PC umístit od sebe do velké vzdálenosti. To je ideální hlavně ve výrobě, kde tvrdoměr je umístěn ve výrobní hale, ale vyhodnocovací PC může být umístěn v čistém prostření laboratoře.




OPTIMIZED TEST HEAD DESIGN

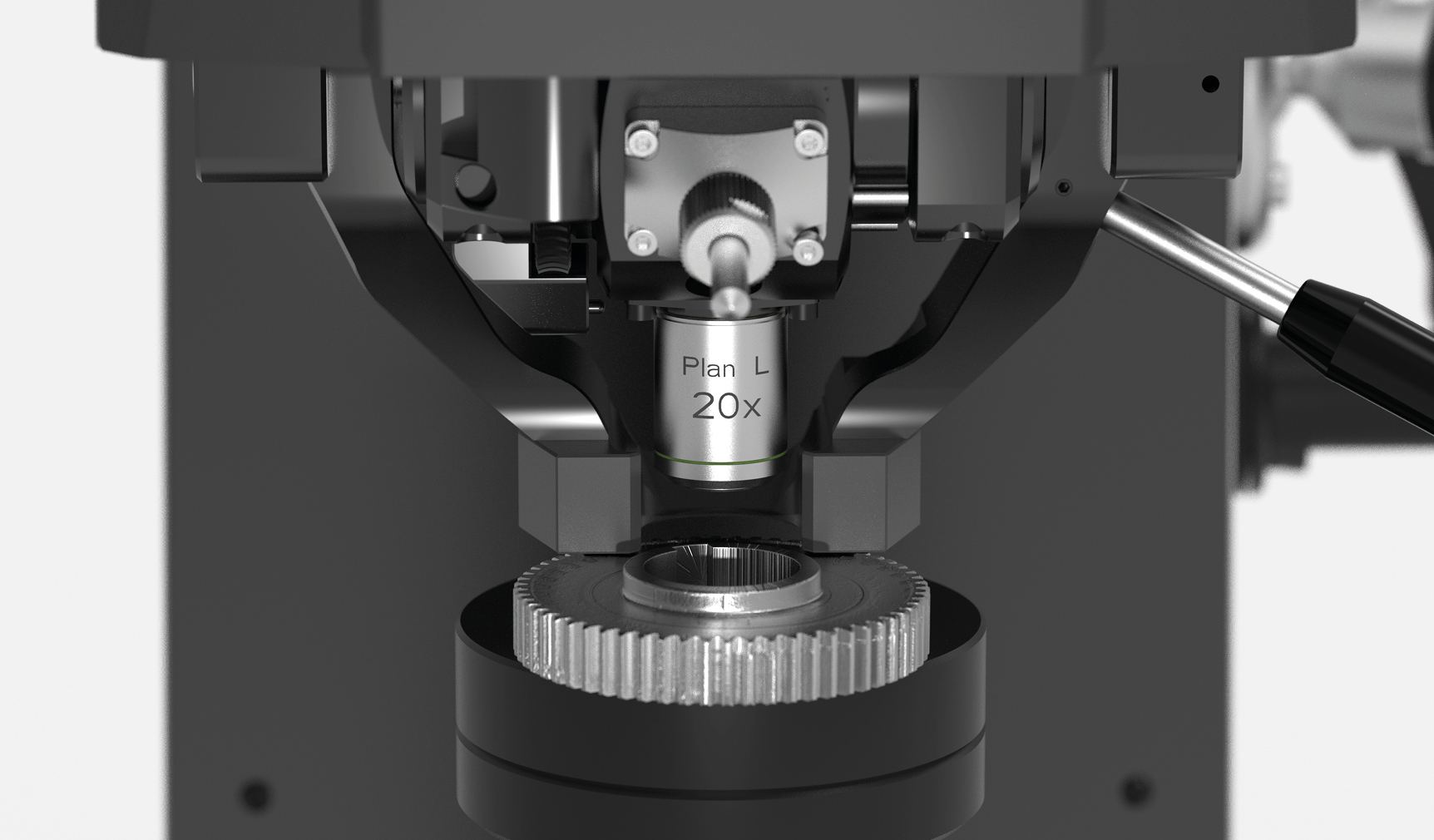

200-CS-CSA-TEST-HEAD-DESIGN A range of clamping and holding elements can be configured to suit tooling requirements. The optional transparent collision guard can protect tools on the device from damage while ensuring an unrestricted view of the test cell interior.




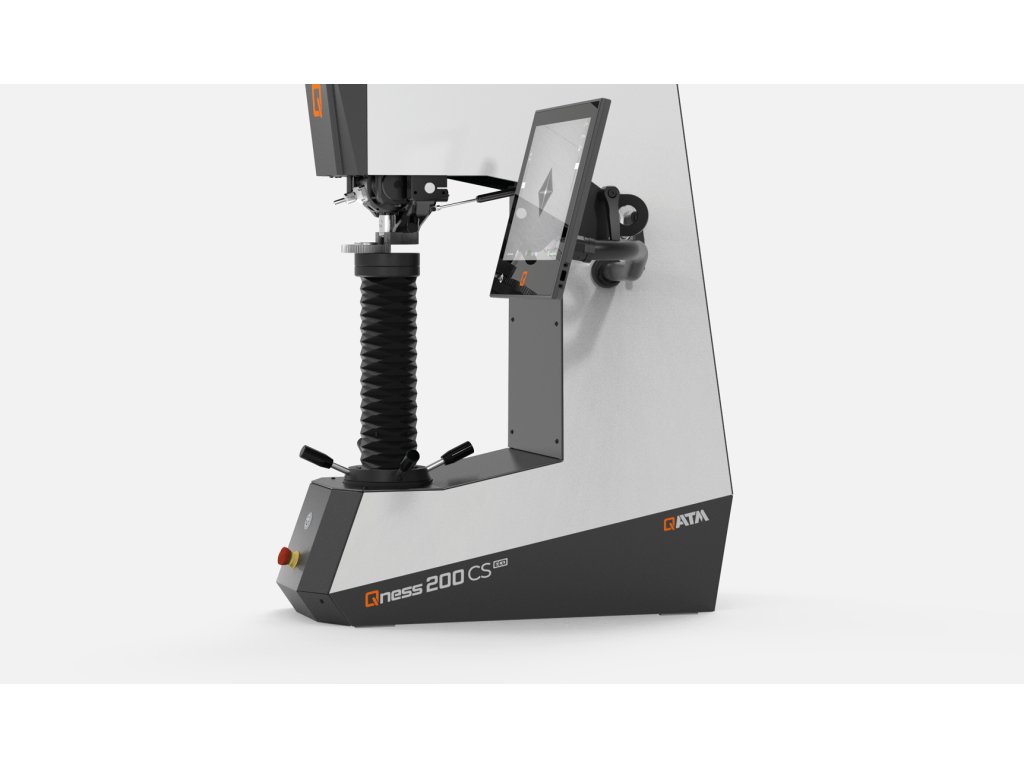

TEST TABLE HEIGHT ADJUSTMENT

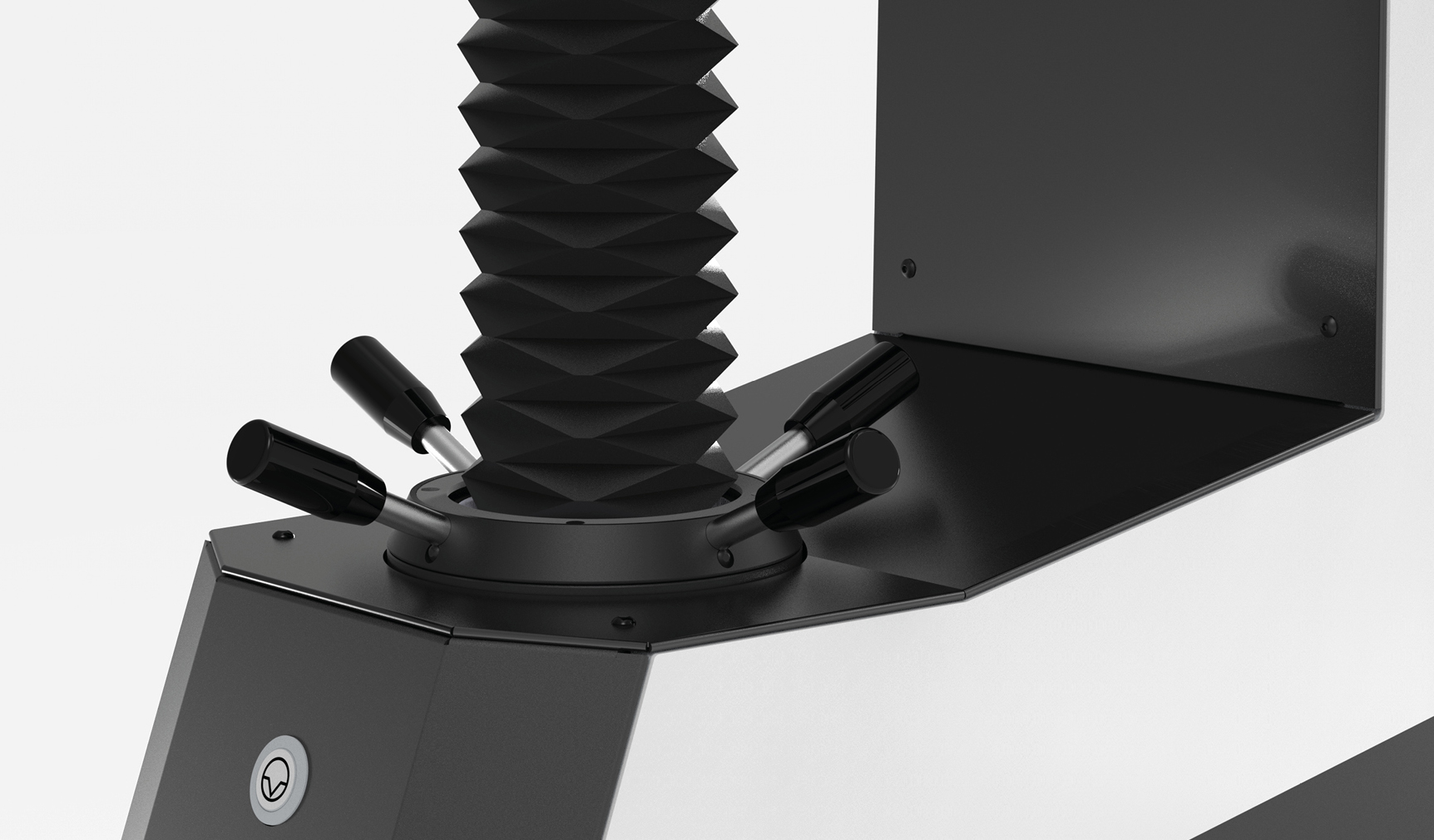

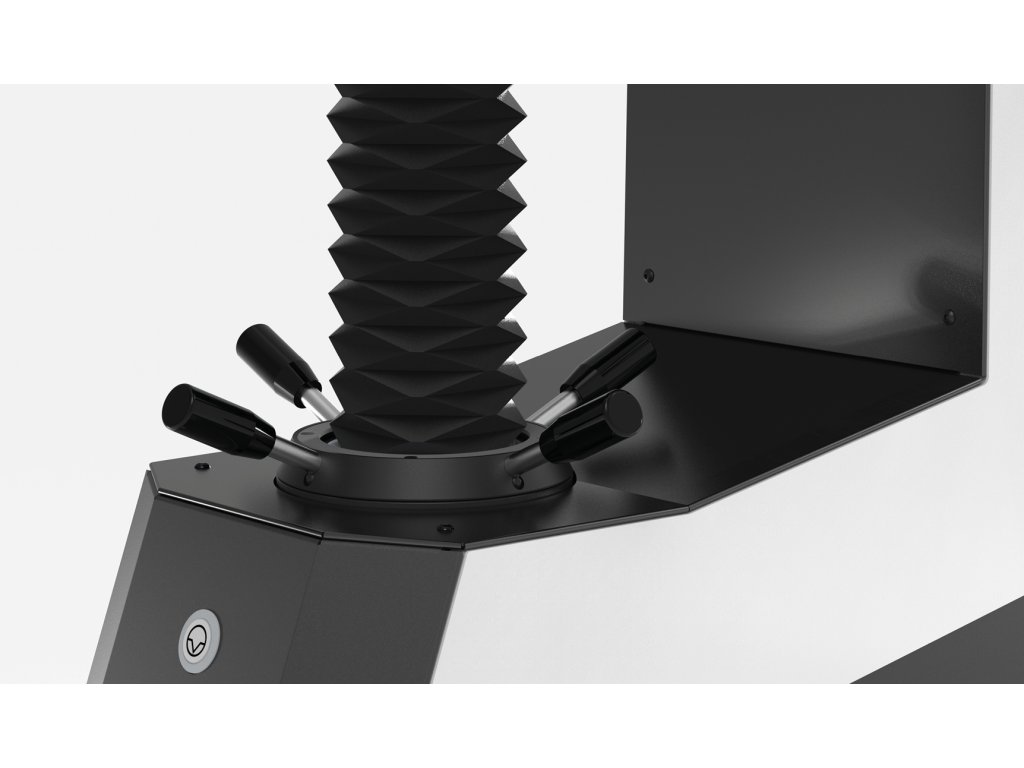

200-CS-CSA-HEIGHT-ADJUSTMENT Height adjustment via stable, ultra-precise roller-bearing spindle guide. Solid, no-maintenance structure. All devices are available with a Ø 25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.




RAPID INDENTER CHANGING SYSTEM

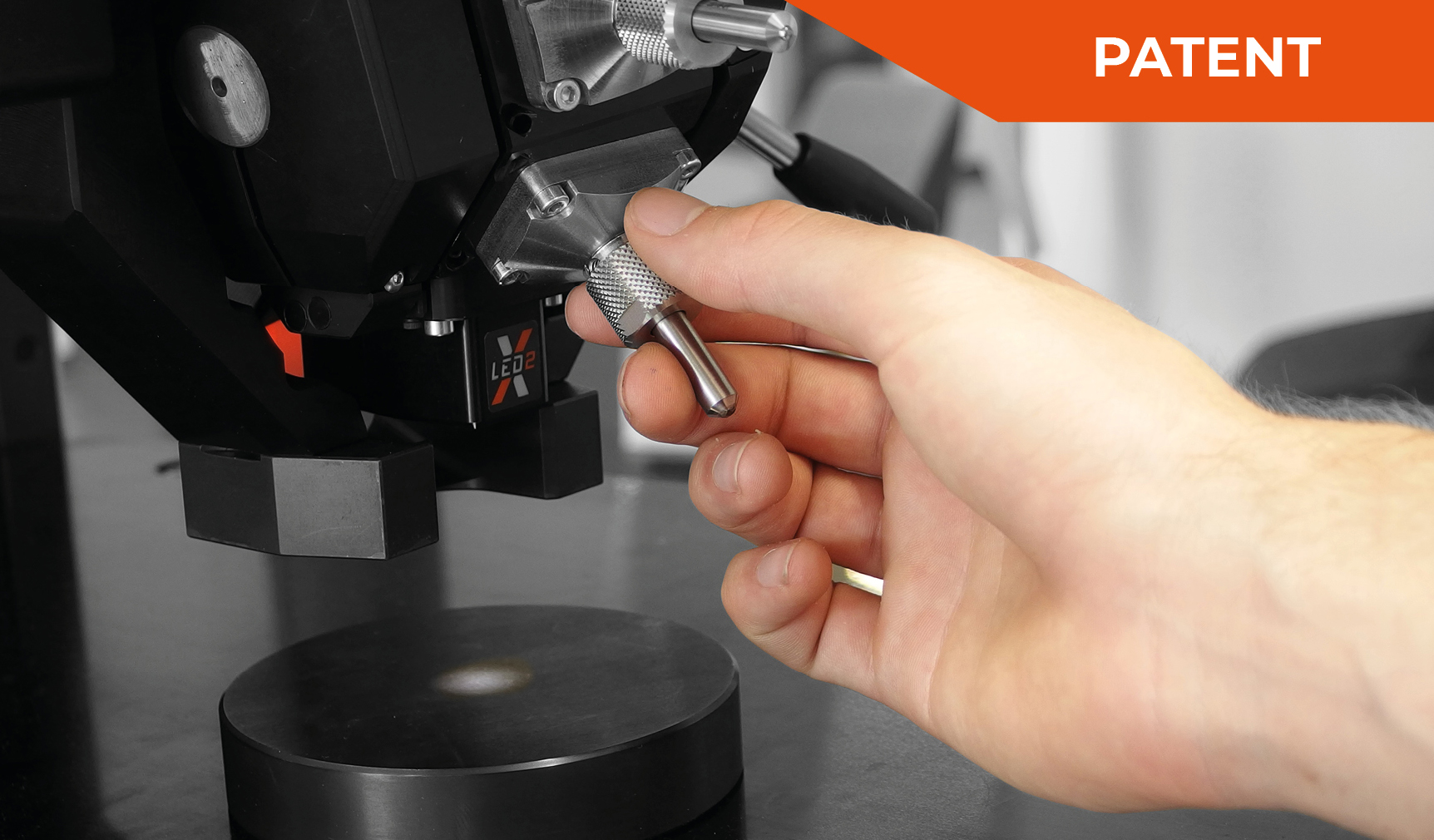

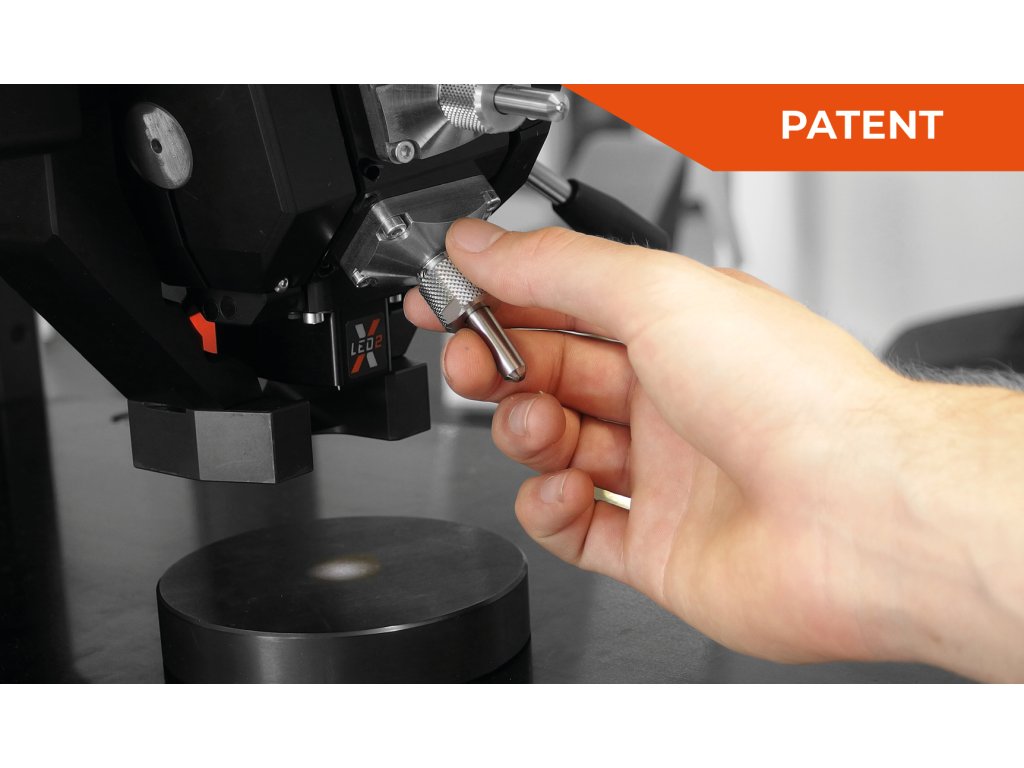

200-CS-CSA-INDENTER-CHANGING Uniquely simple, tool-free indenter changes due to indenter quick-release mechanism.




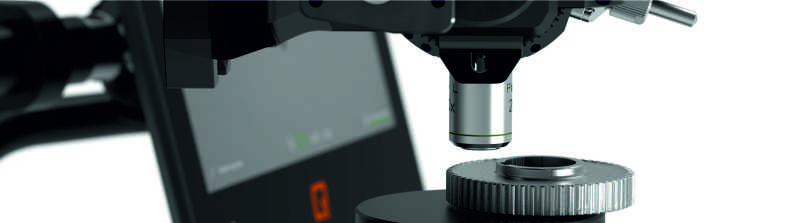

200-CS-CSA 1



FASTER TEST METHOD CHANGE-OVER

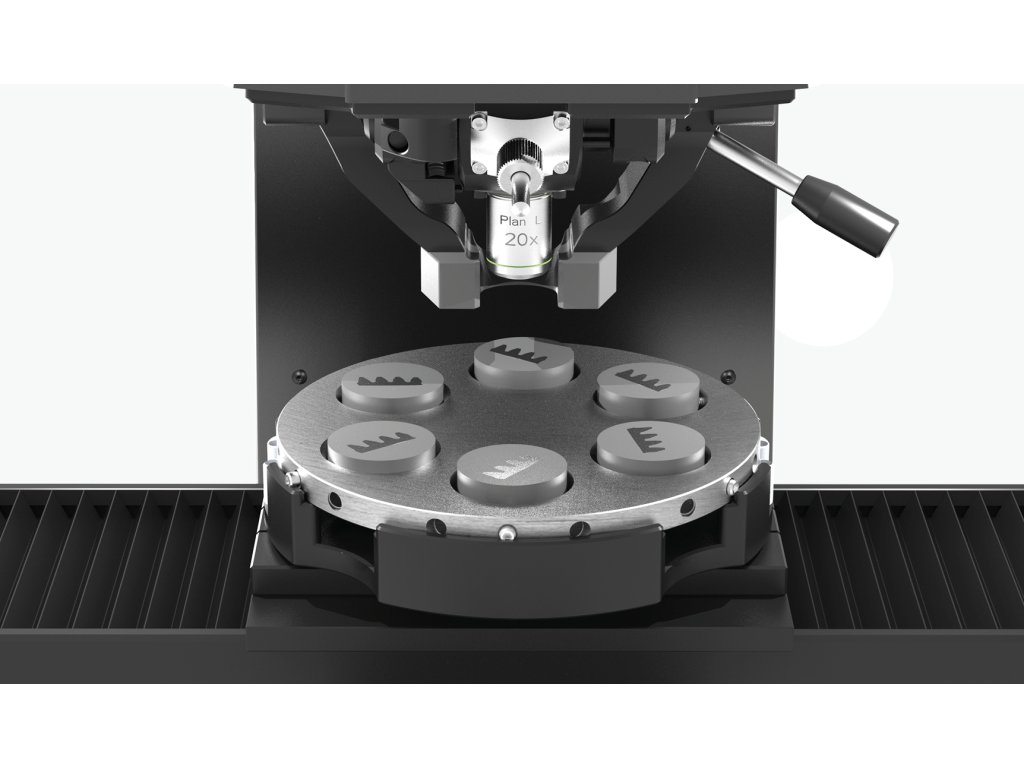

5-POSITION TOOL CHANGER

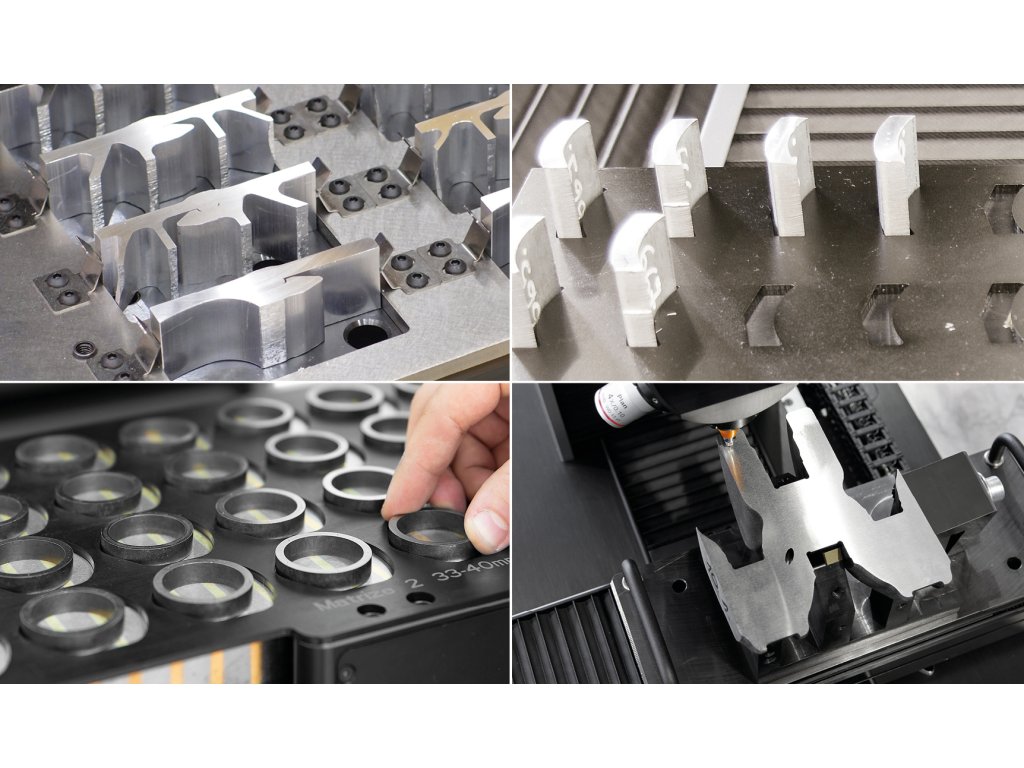

Simply cover universal applications: the concept with horizontal rotary axis combines space for 5 tools in a uniquely compact design. Three-sided closed elements ensure secure workpiece clamping close to the test point, even with small components.

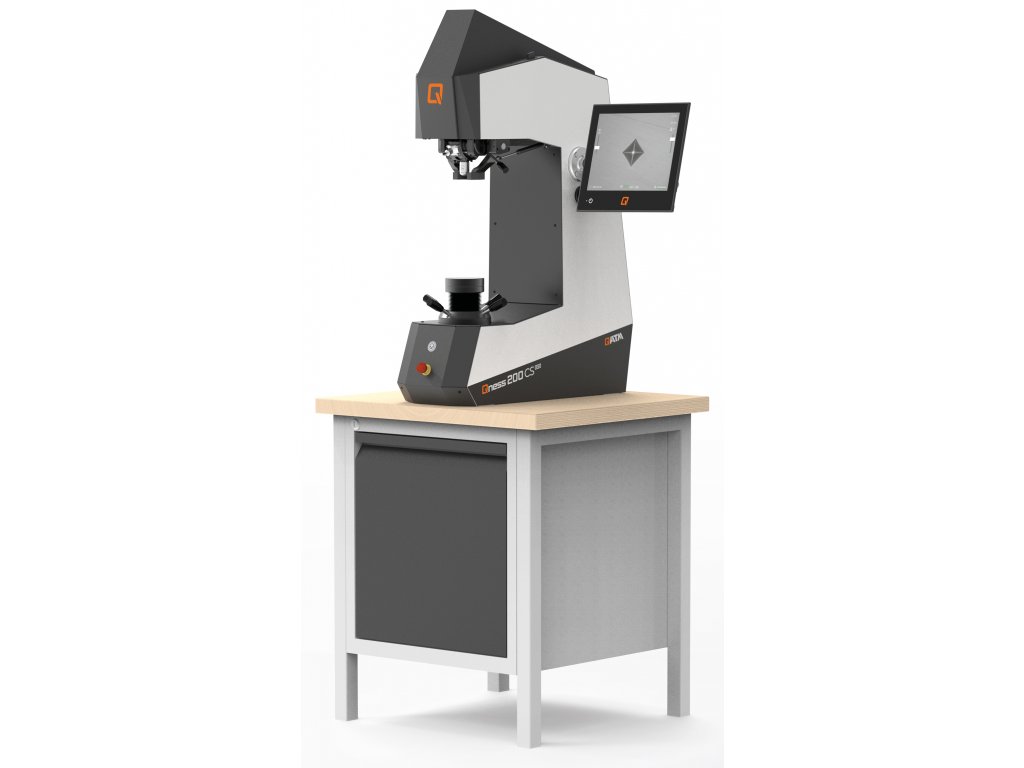

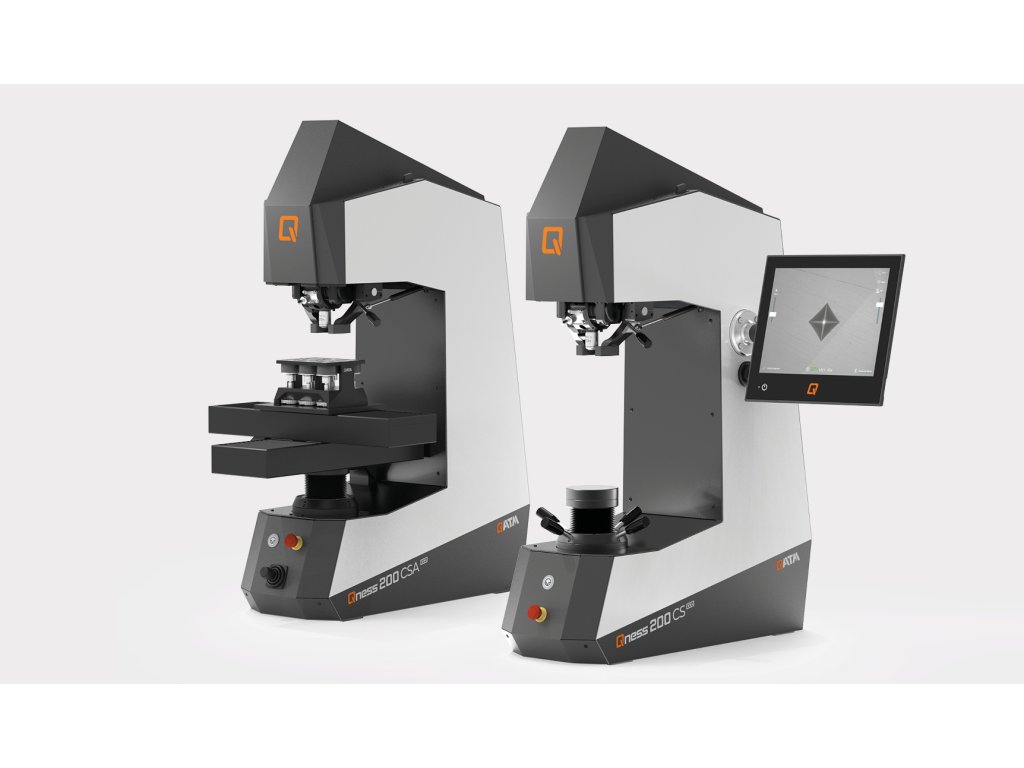

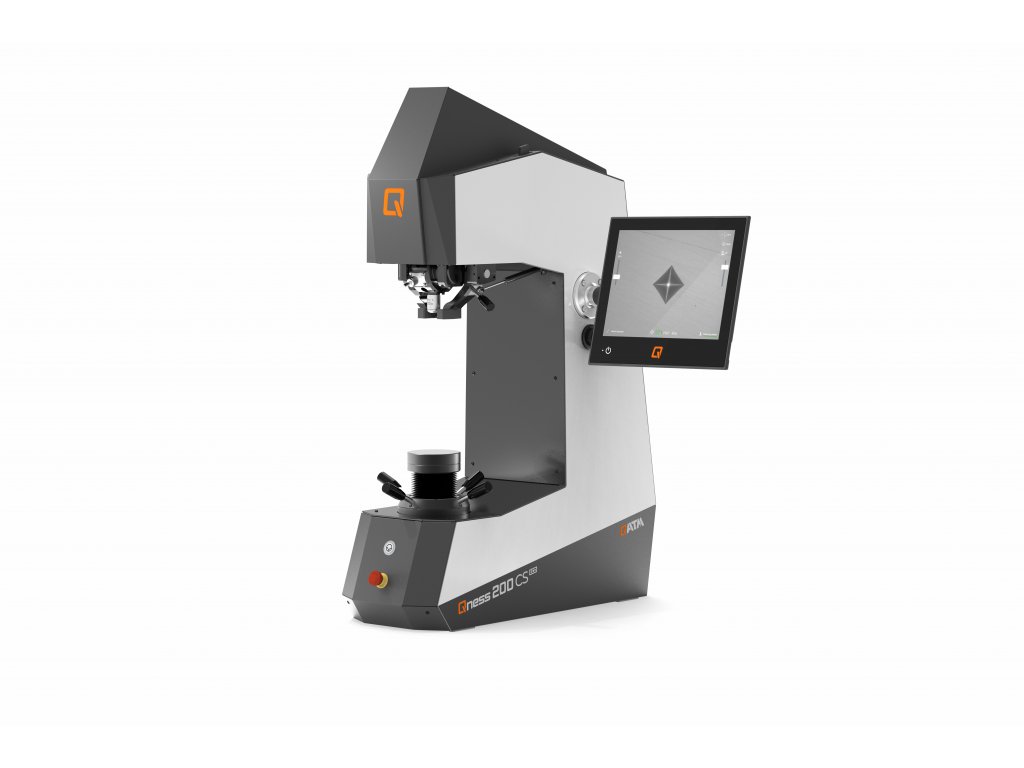

MACRO HARDNESS TESTER QNESS 200 CS

FAST, QUIET AND UNIVERSALLY APPLICABLE


FREELY ADJUSTABLE OPERATING DISPLAY

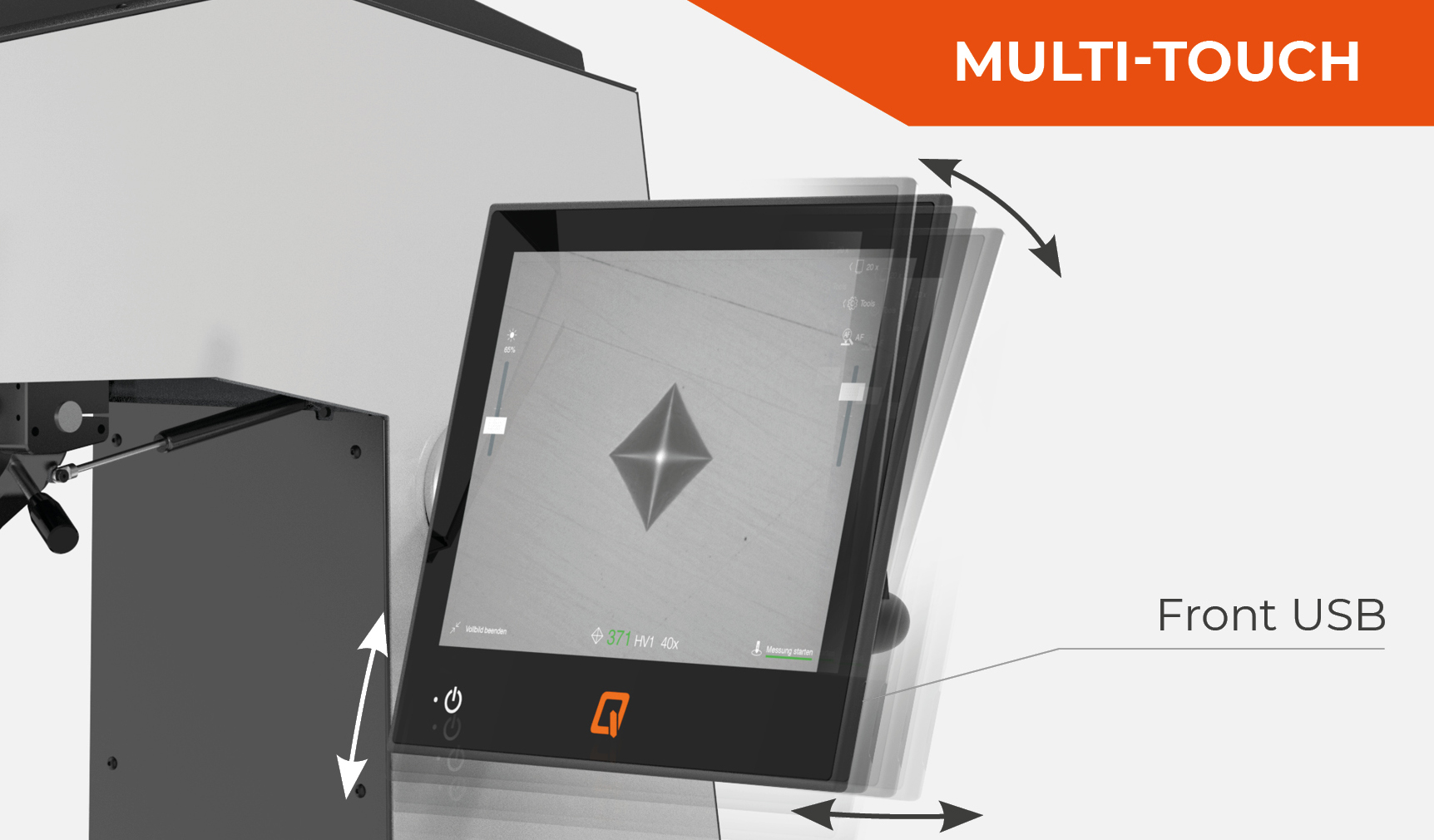

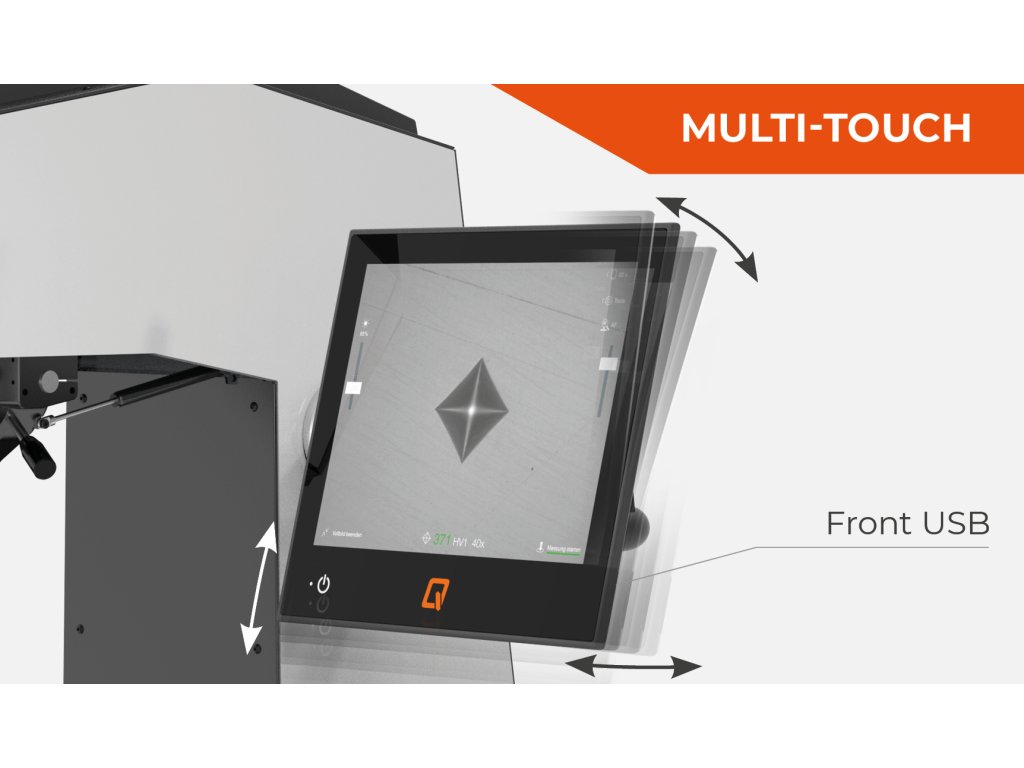

200-CS-OPERATING-DISPLAY The 12” ultra-flat, capacitive touch display can be raised, lowered and tilted smoothly via ball-and-socket joints for ergonomically optimized use.




WIDE RANGE OF TEST TABLES AND PRISM ANVILS

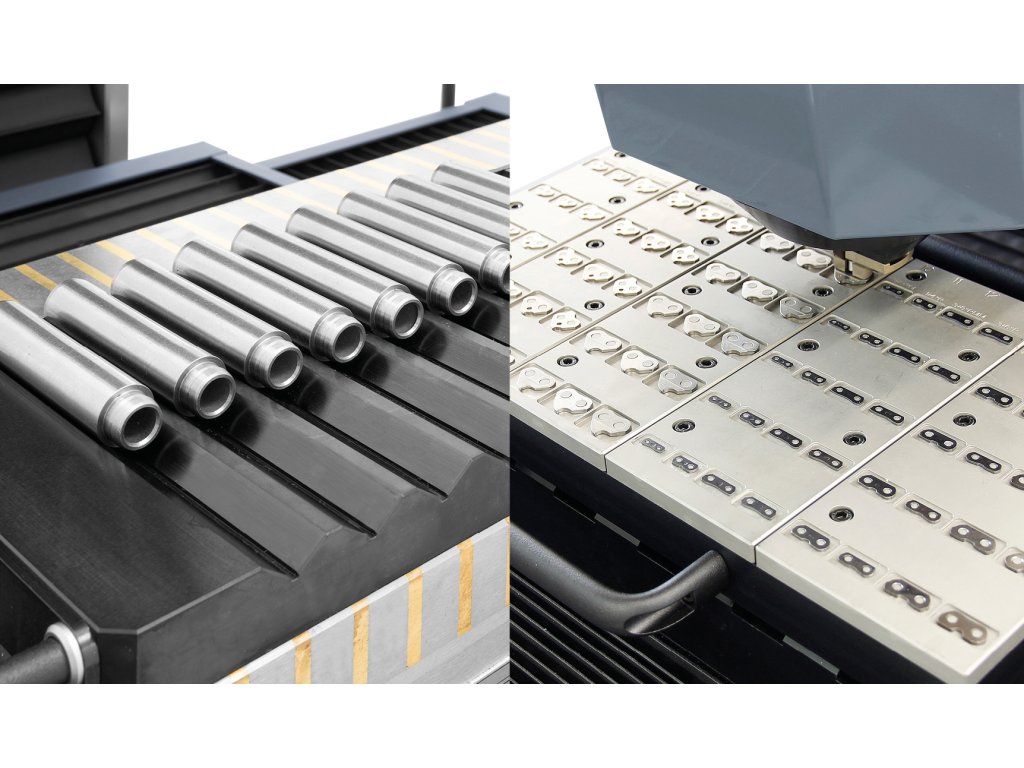

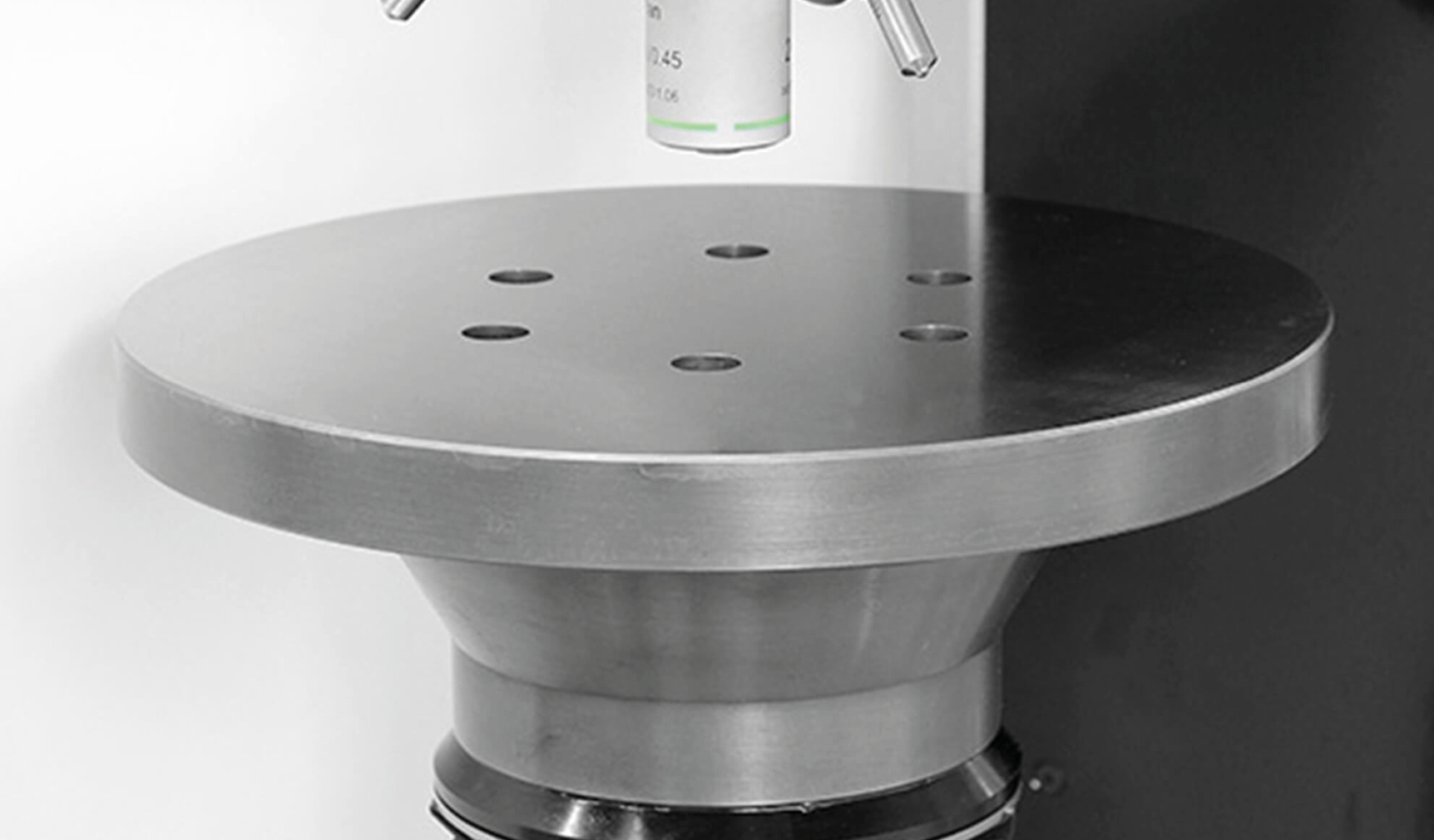

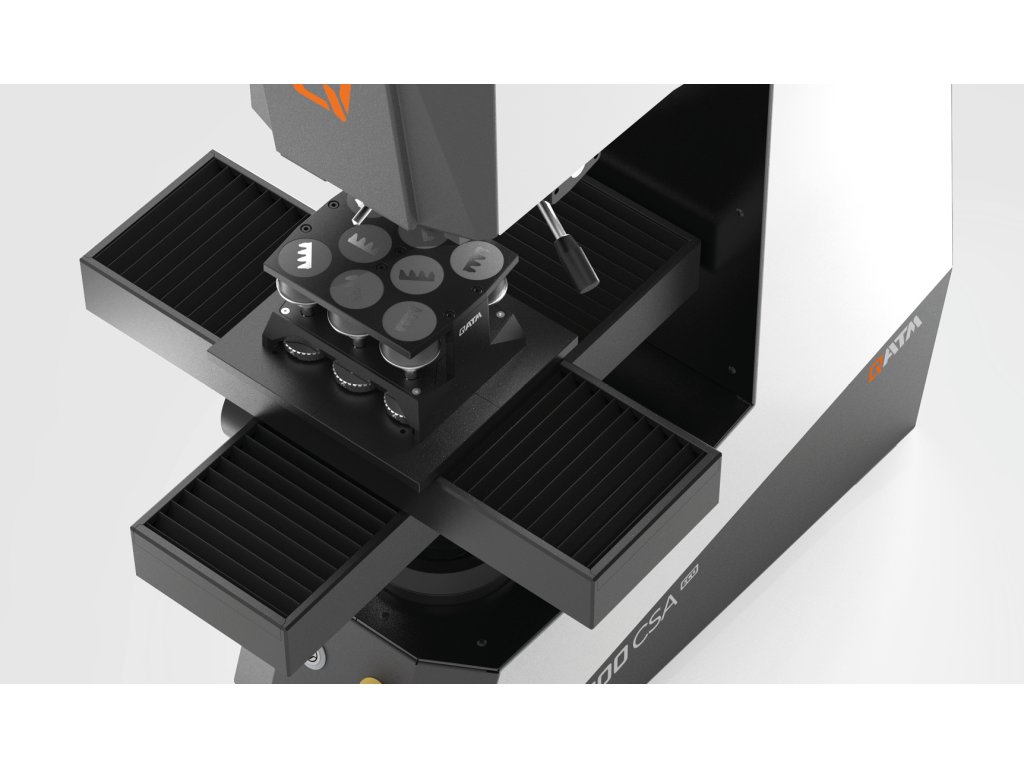

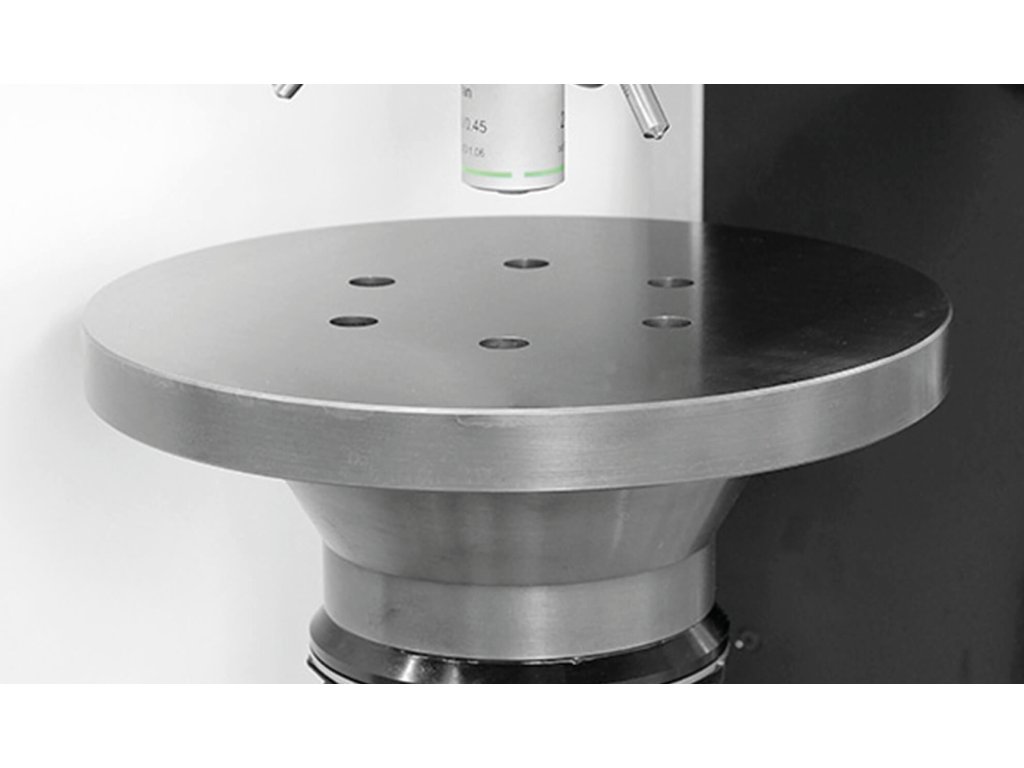

200-CS-PRISM-ANVILS The wide range of available test anvils and prisms enable hardness testing to be conducted on unusually large or spherical items, and on test objects with an uneven test surface.




BASIS FOR BI-DIRECTIONAL DATA LINK-UP

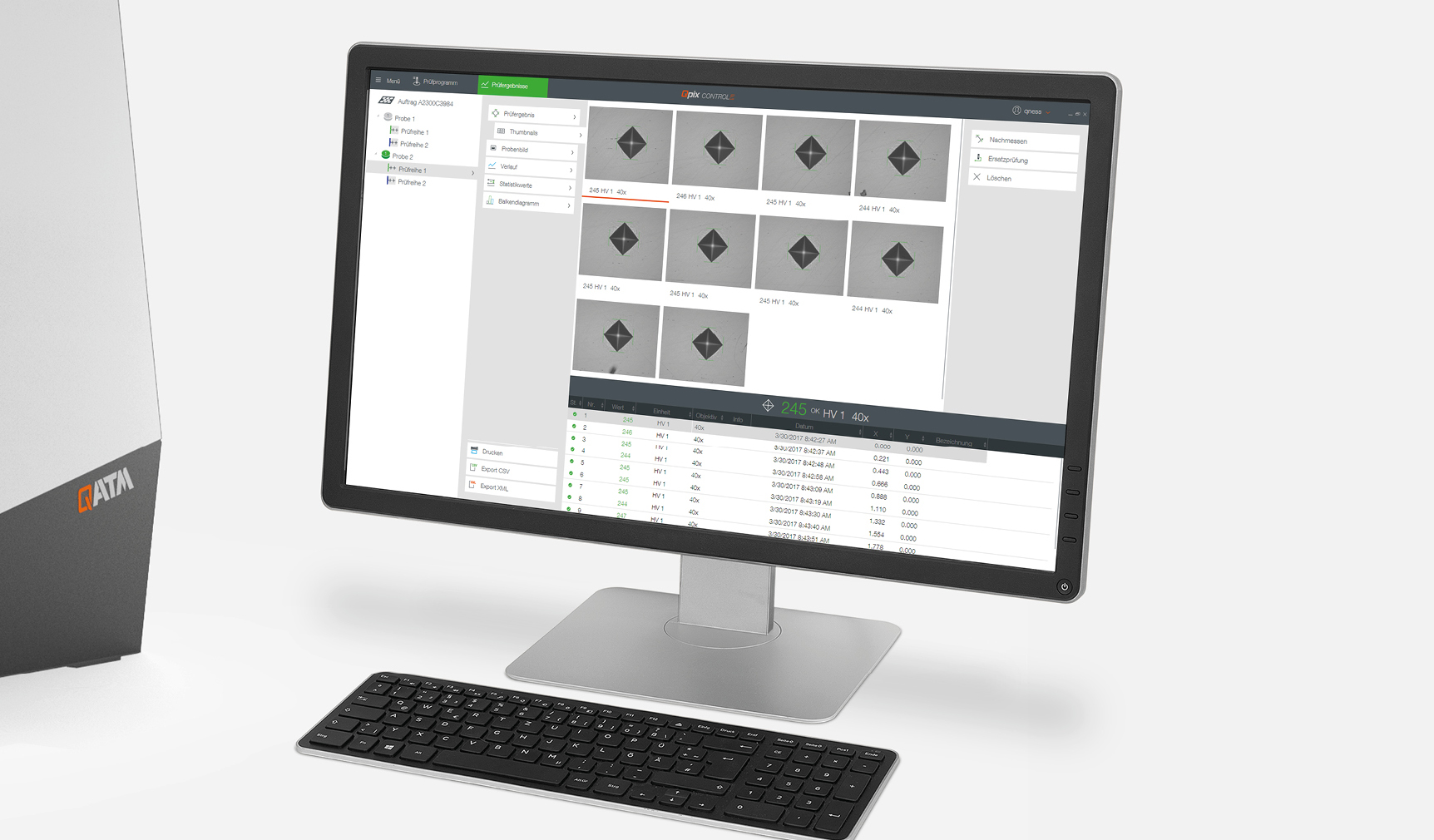

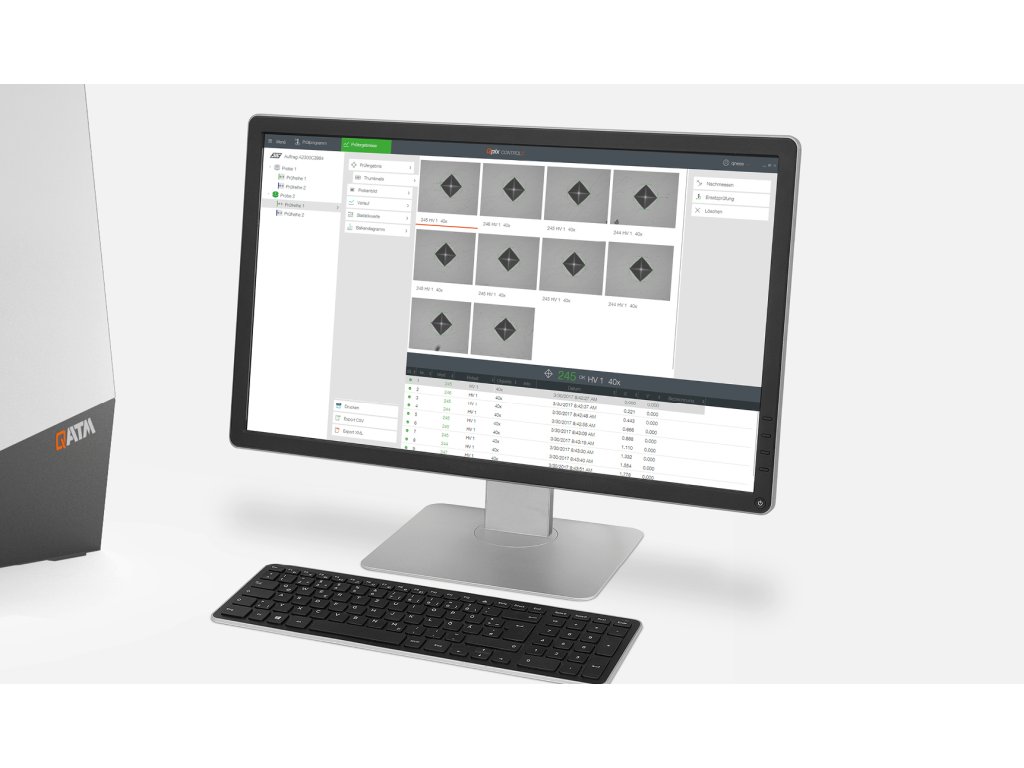

200-CS-DATA-LINK-UP All Machines of the Qness 200 series can, if required, be equipped with a desktop PC system. Customers can provide their own PC system and use it to control their hardness tester.




WORKSPACE ILLUMINATION

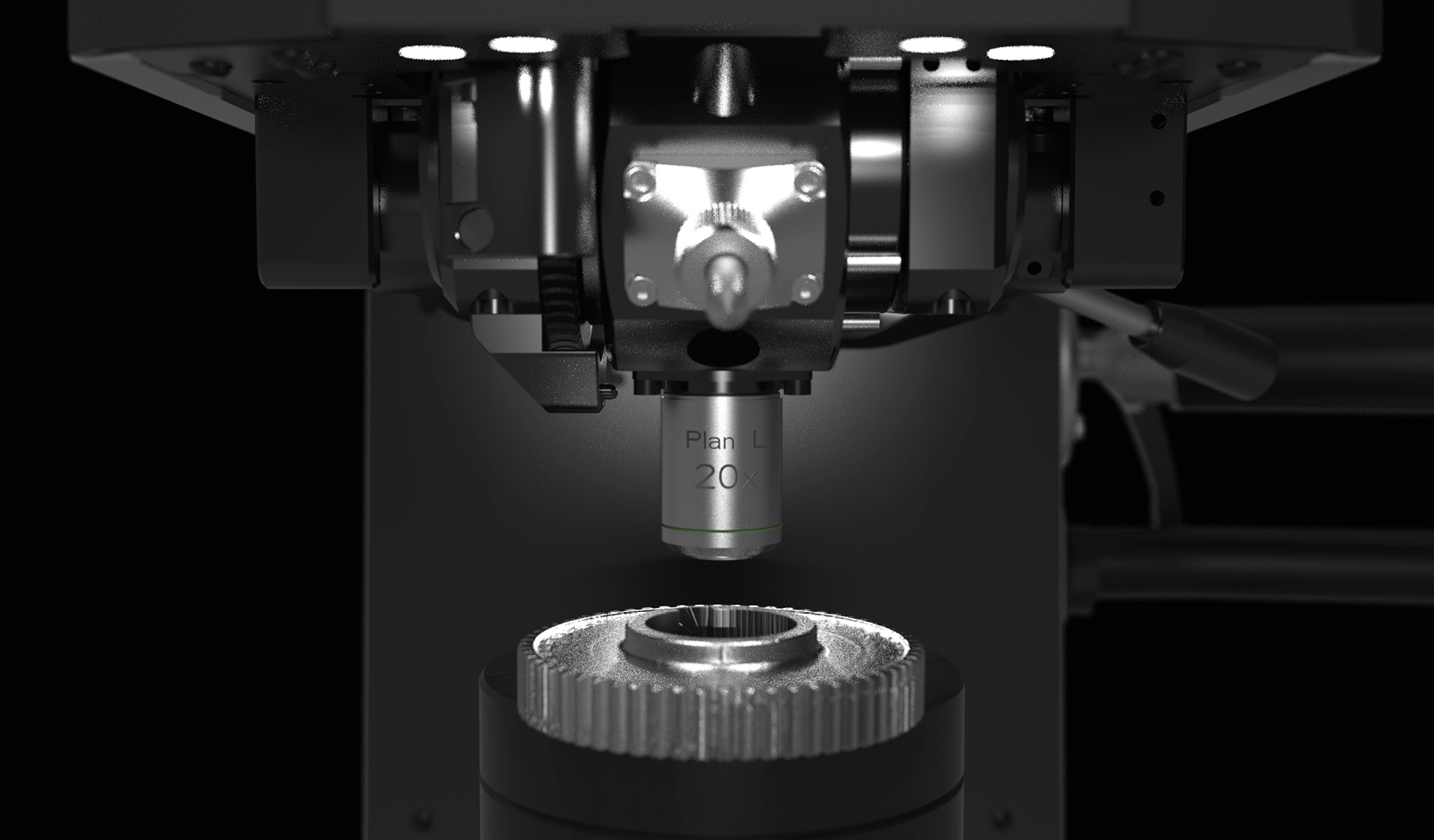

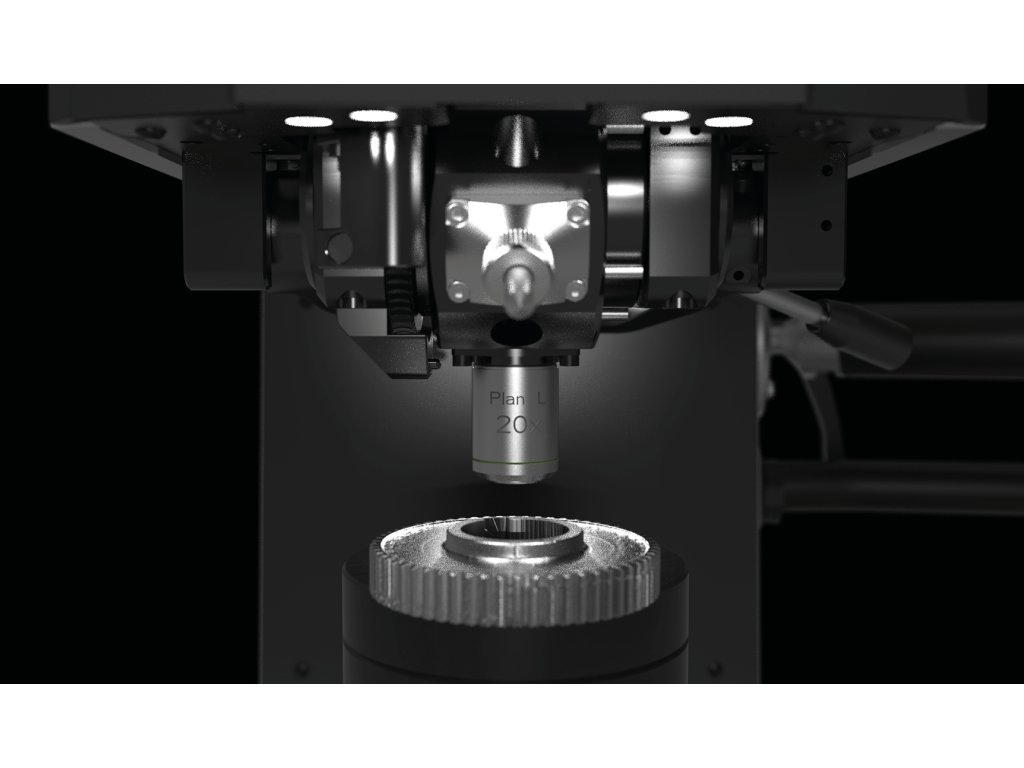

200-CS-WORKSPACE-ILLUMINATION The bright, uniform LED workspace lighting enables safe positioning of the test part. The workspace lighting is designed to illuminate the test area without disturbing shadows.




qpix

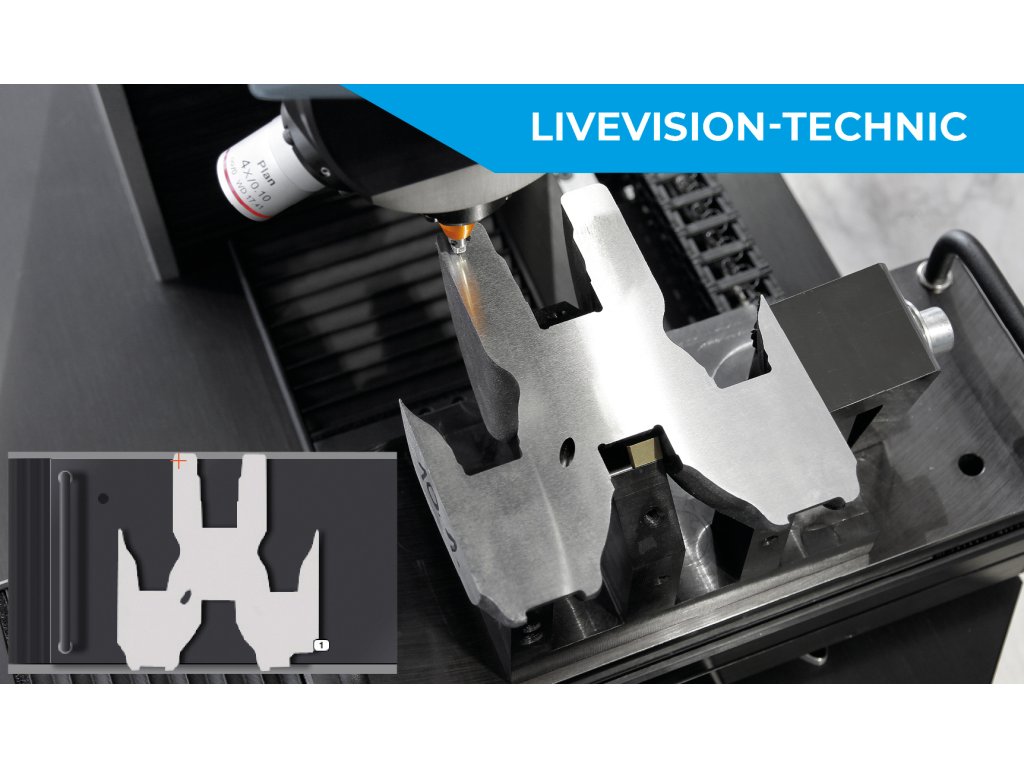

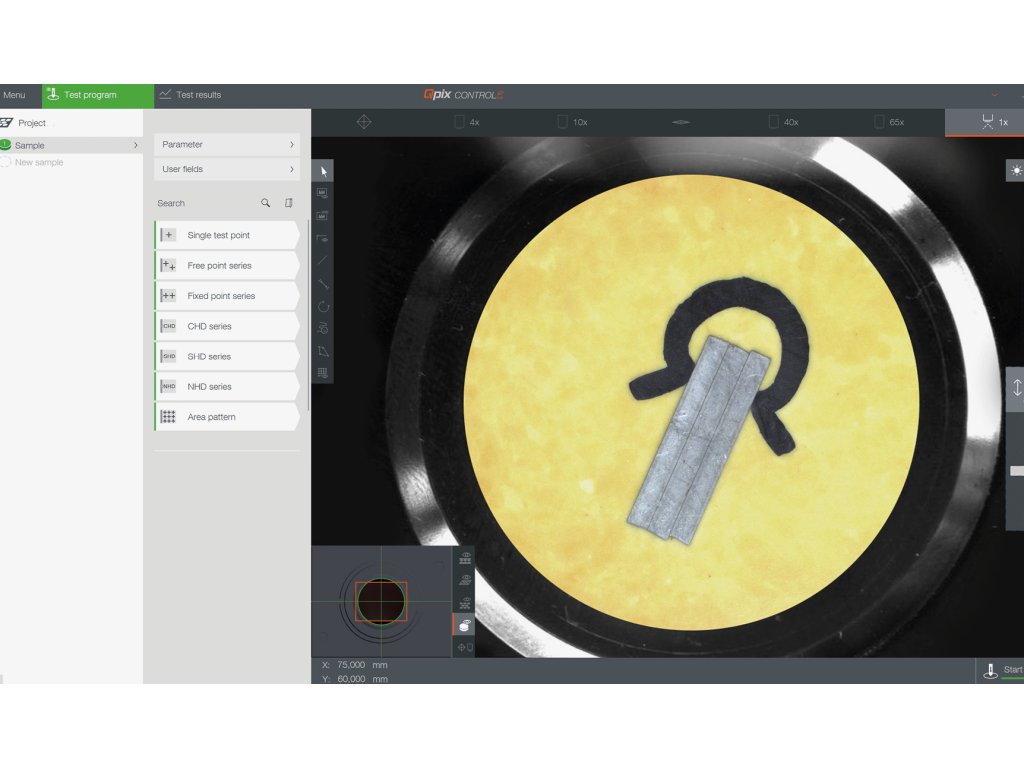

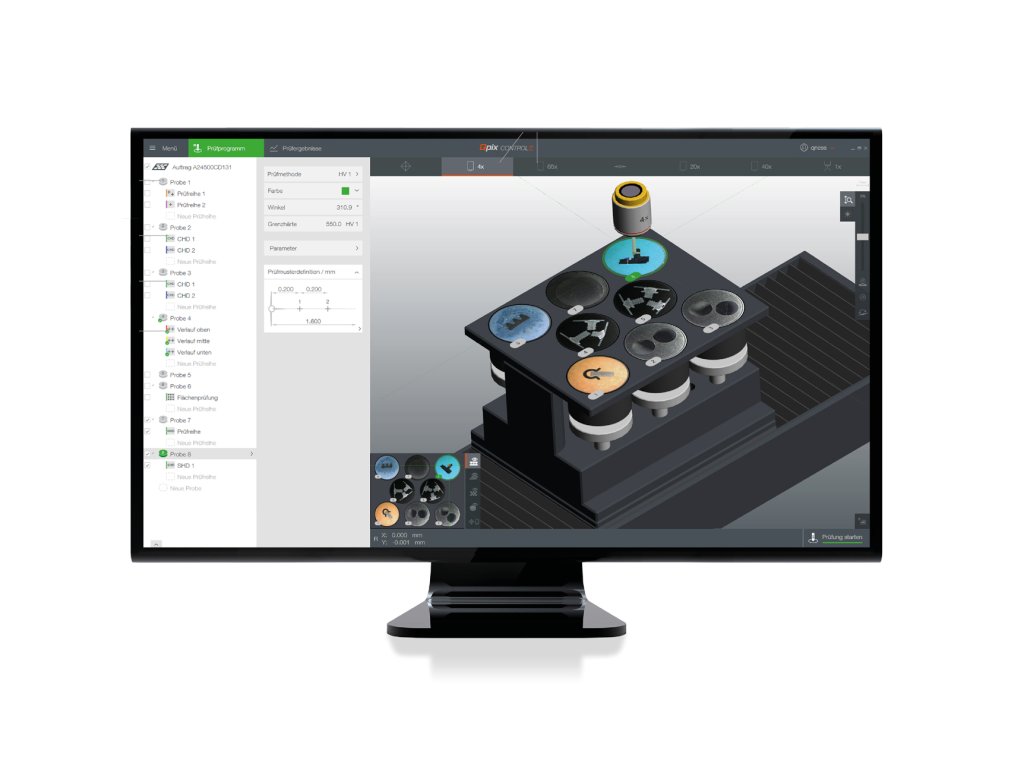

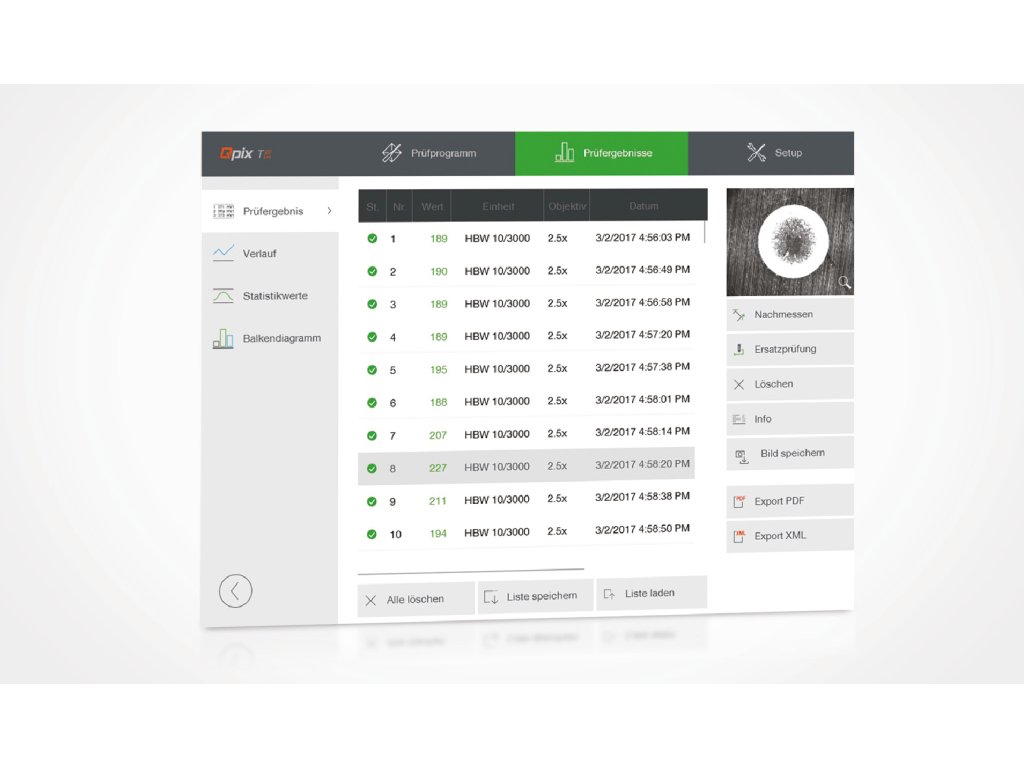

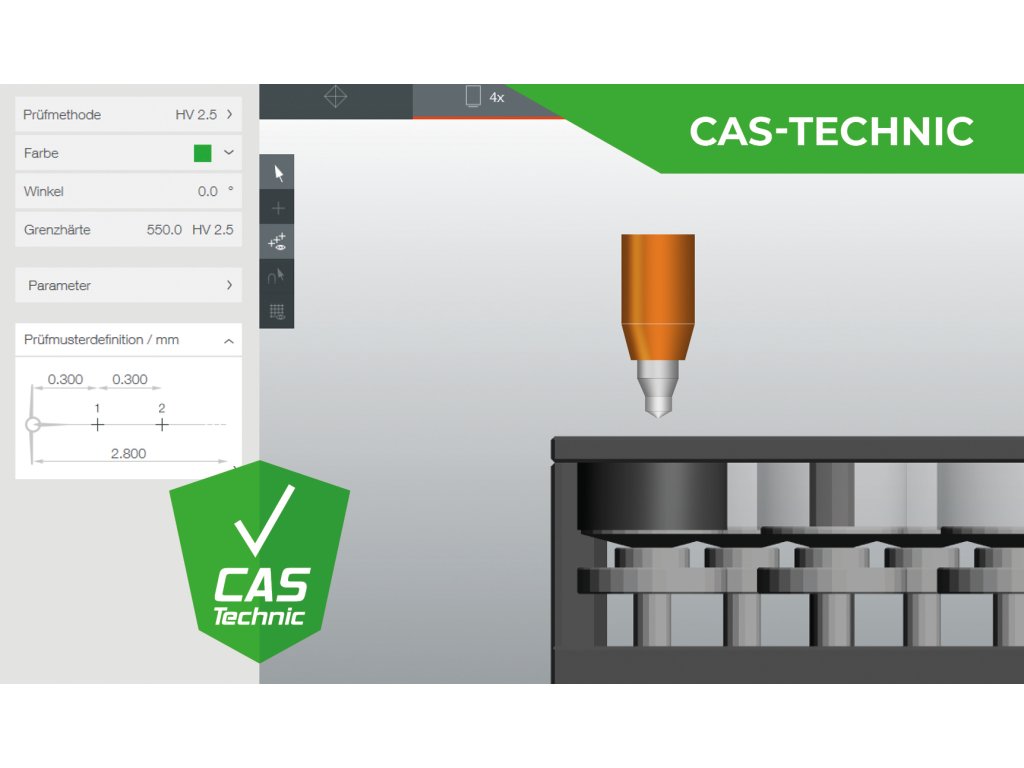

QPIX T2 FULL SCREEN MODE

CLEAR FOCUS ON ESSENTIALS




Snímek obrazovky 2022-09-21 162952

FULL SCREEN MODE

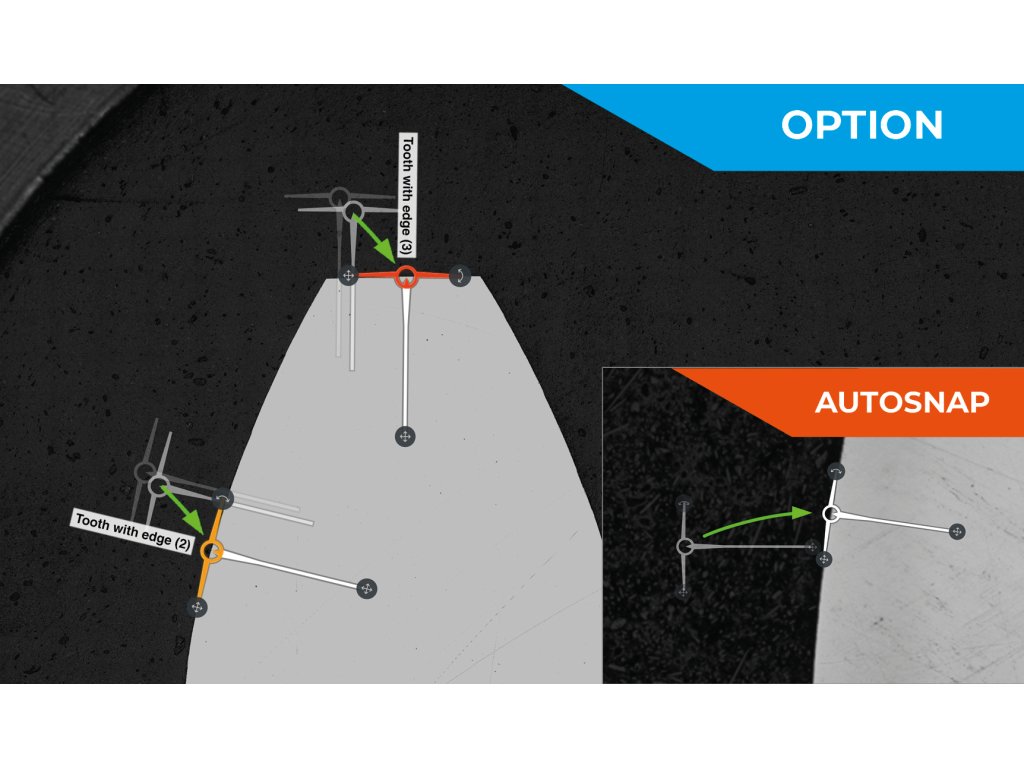

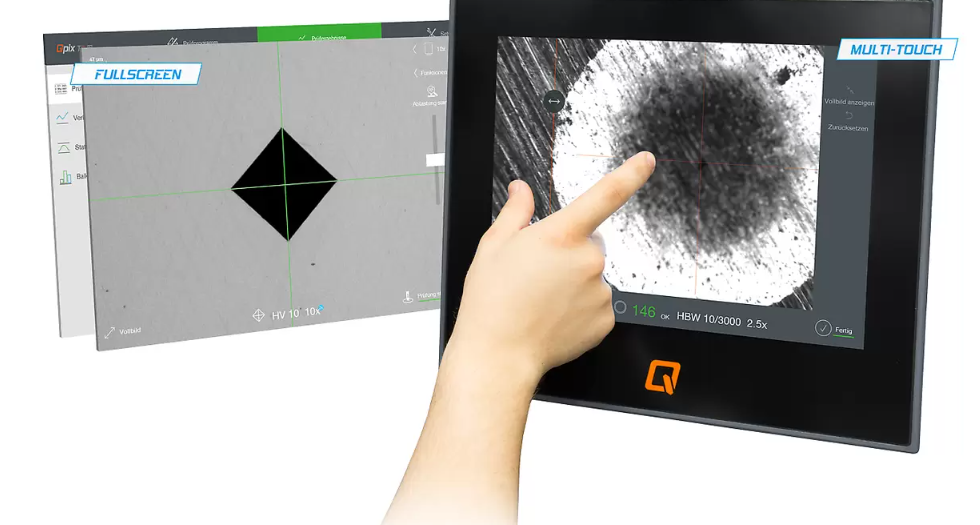

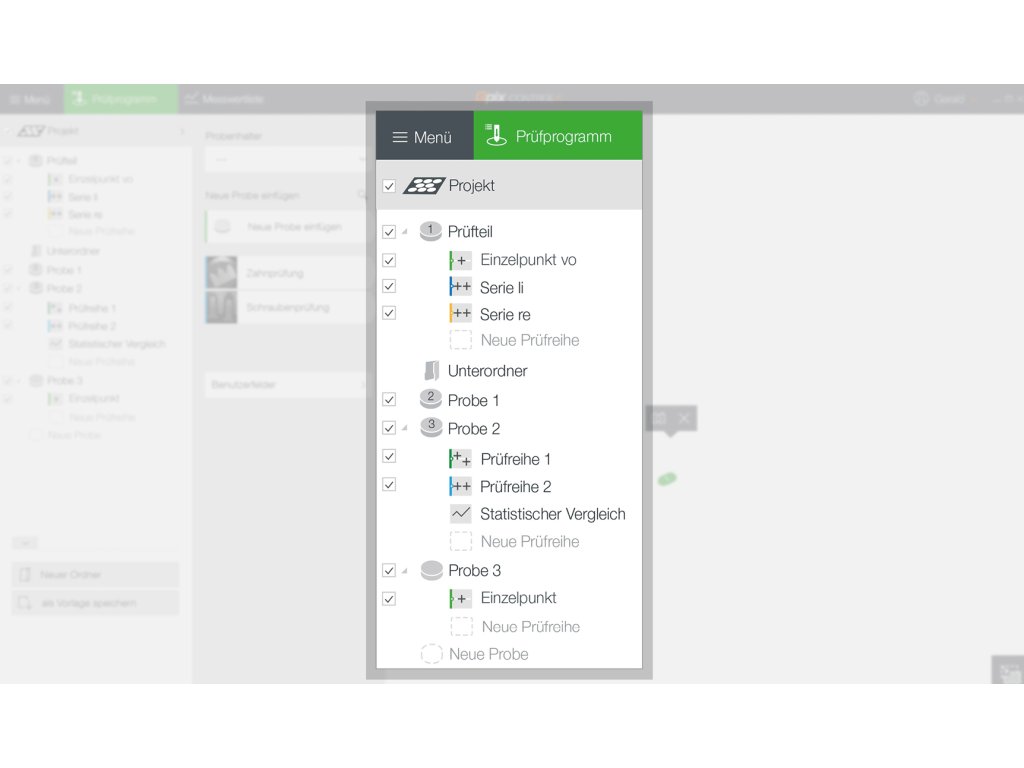

A clear overview of all the most important functions on one screen guarantees user-friendliness and, most importantly, ensures test results are clearly prioritized.



MULTI-TOUCH CAPACITY FOR ULTRA-SIMPLE OPERATION



Modern multi-touch operation for simple zooming and easy menu navigation.




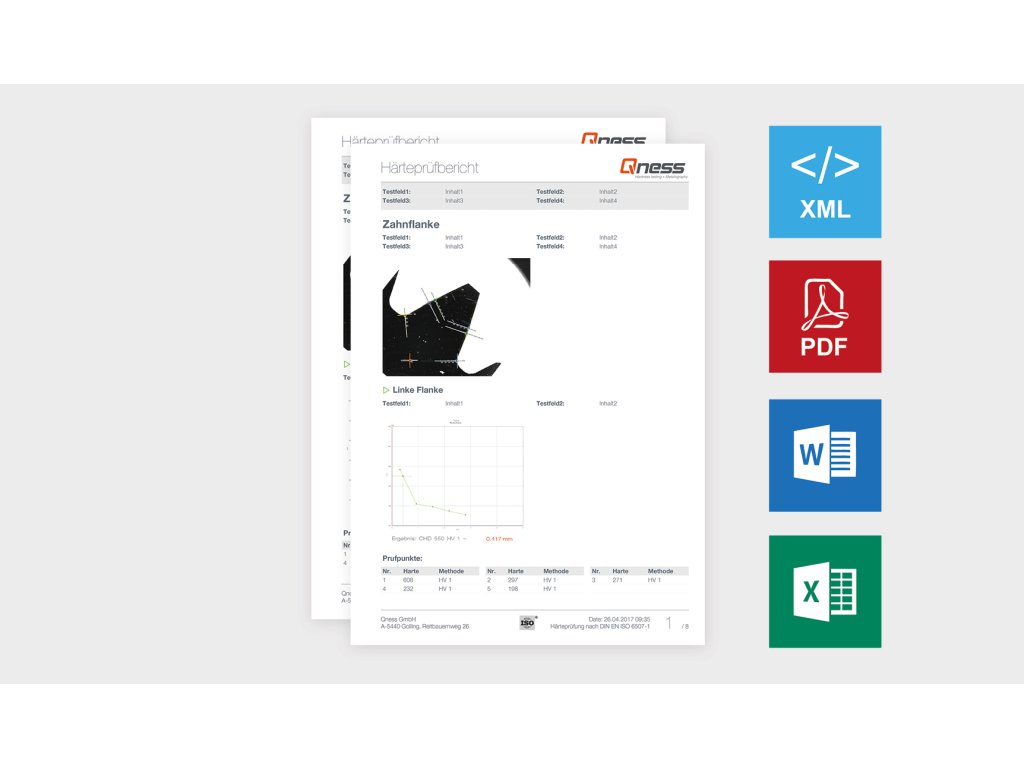

INDUSTRY 4.0 FOR CONNECTED TOMORROWS



Interlinkability

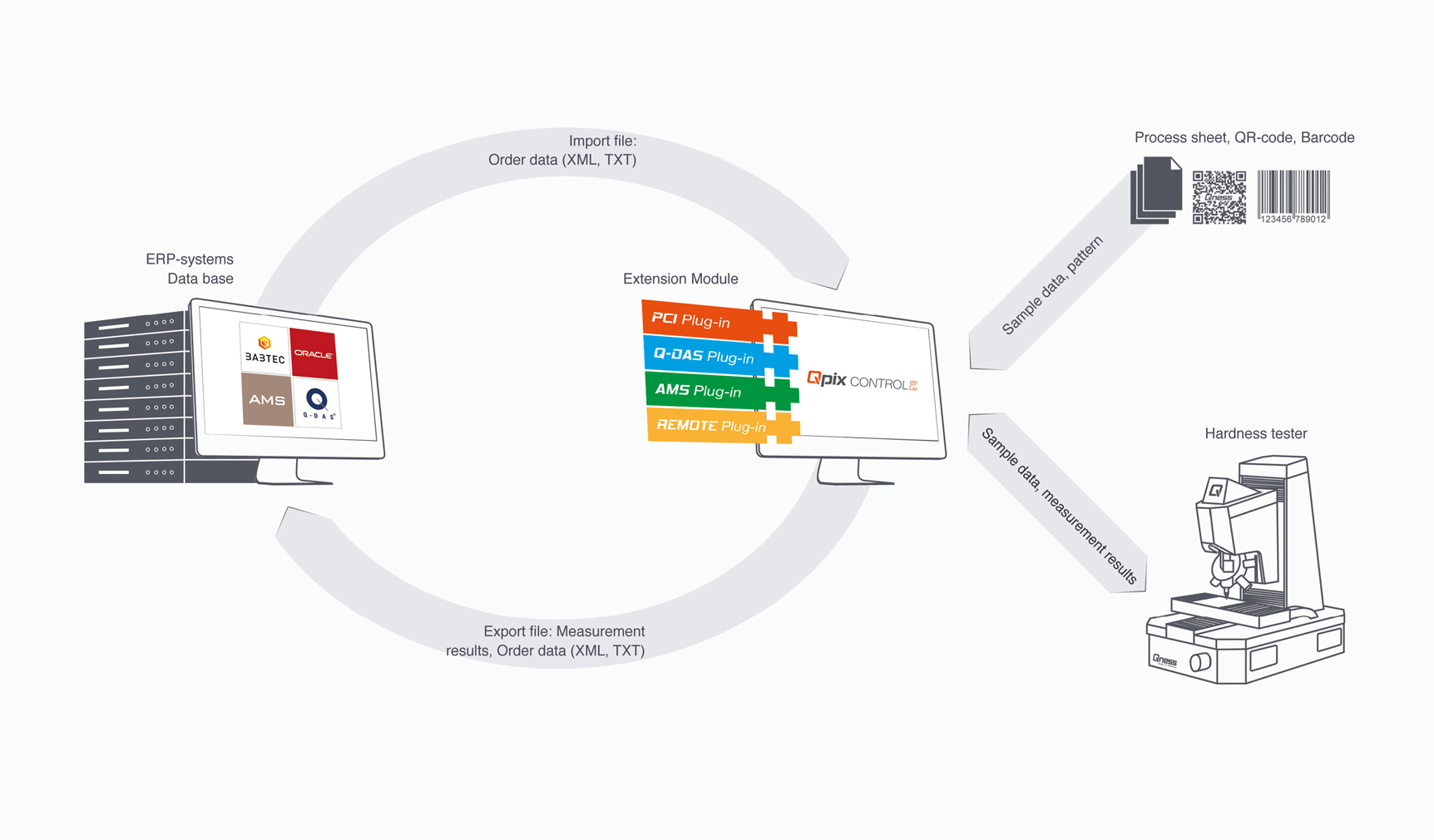

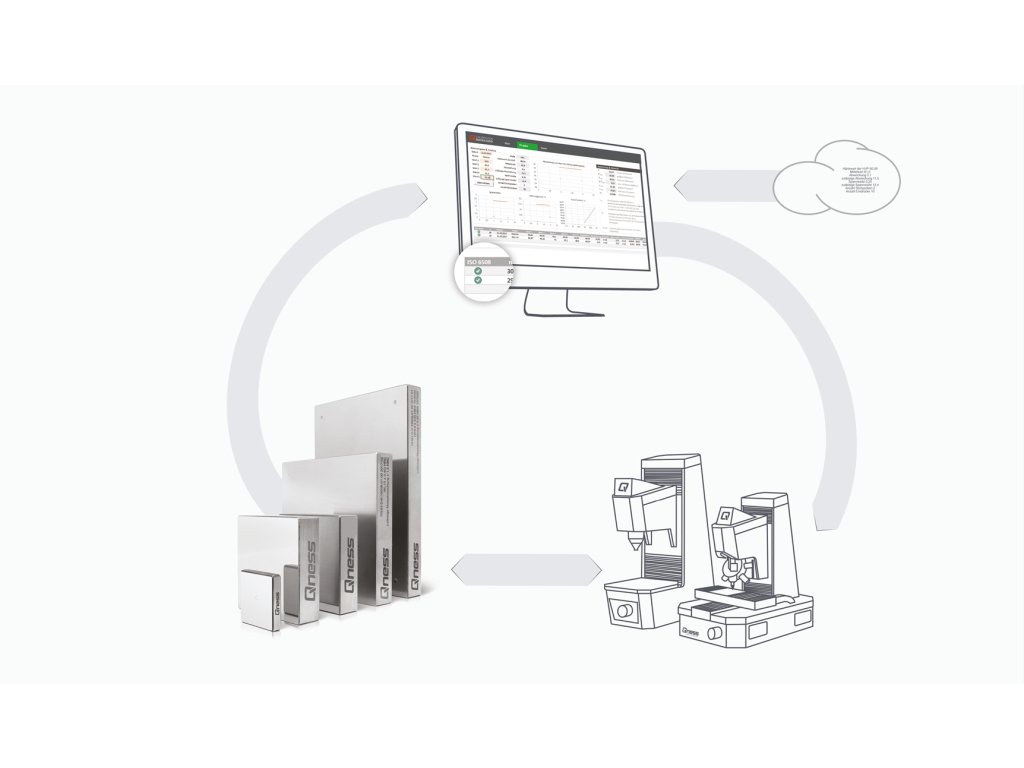

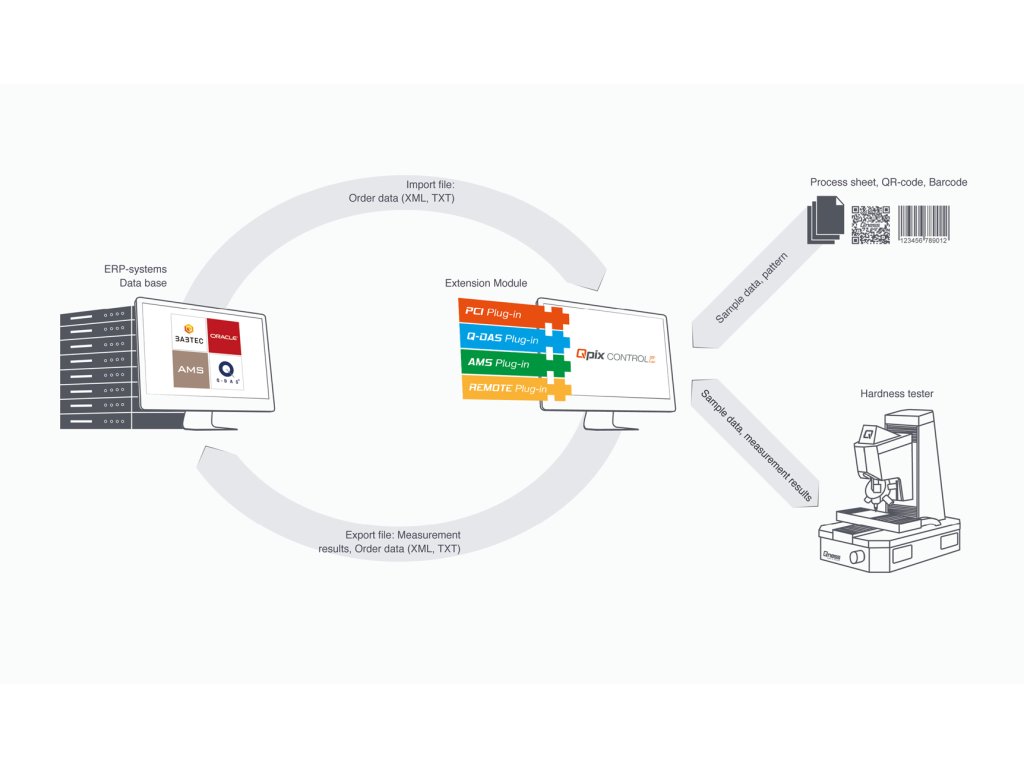

Qconnect is the interface in QATM Qpix Control2 software, providing customers with a full portfolio of inter-device connectivity - from serial production, open XML interfaces (bi-directional) and pre-specified plug-in solutions, such as the QDAS Plug-In+, through to customer-specific connectivity solutions implemented completely by QATM. We have a professional solution for every applicational requirement.



Learn more about our Qconnect-Project


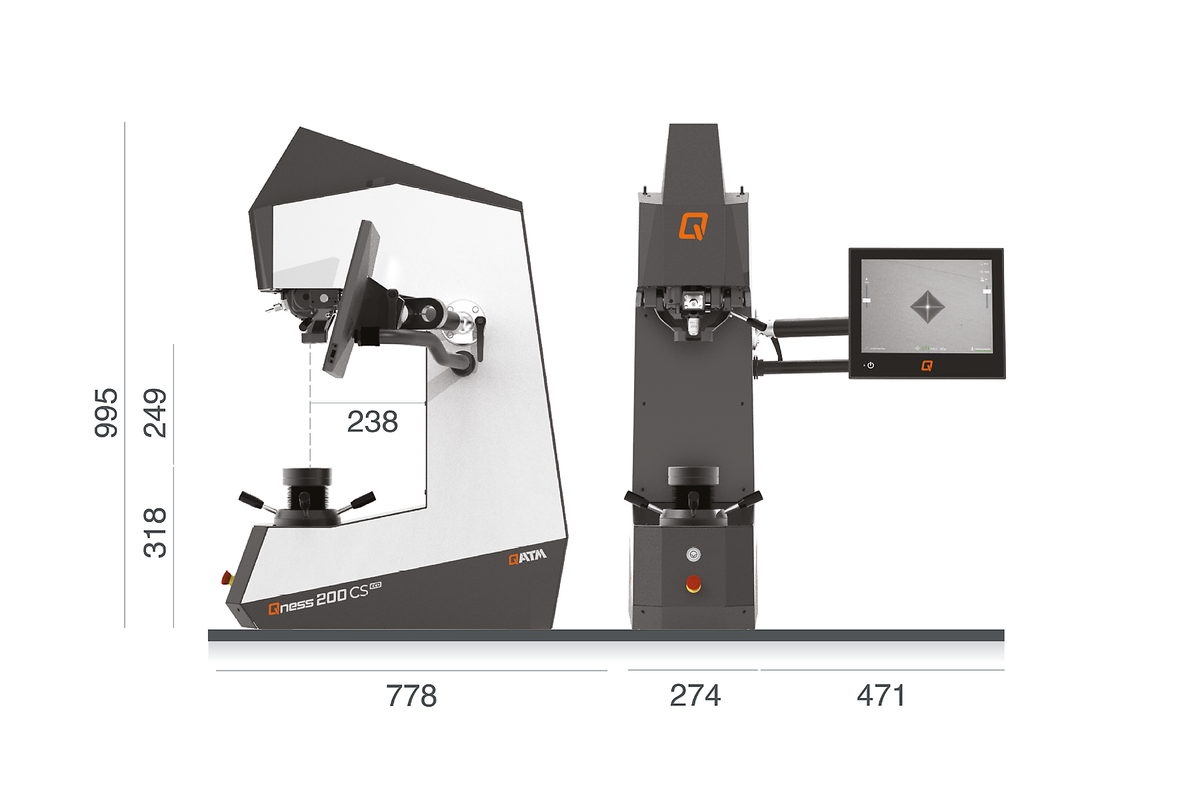

qnesss-200-cs-csa-1800x120035

PARAMETRY:



Test force range

0.5 - 187.5 kg (4.9 - 1839 N)

Tool Positions

5 (toolchanger)

Software

Qpix T2

Height adjustment

manual / spindle

Test height

250 mm

Throat depth

238 mm

Test table

ø 100 mm

Traverse path

-

Max. workpiece weight

"unlimited"

Weight of basic device

132 kg

Test sequence

fully automated / electronic force application

Camerasystem / Image transfer

5 MP ethernet industrial standard

Operating system / Harddrive

Windows 10 IoT / 128 GB SSD

Ports

1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI

Lenses

XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x

Field of view (acc. to equipment)

0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2)

Additional optioins

QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc.


BROŽURY:

pdf Brožura tvrdoměr Qness 200 CS (2.8 MB)



pdf OSTATNÍ BROŽURY KE STAŽENÍ...


VIDEA:





OSTATNÍ VIDEA KE SHLÉDNUTÍ...

Hmotnost 132 kg
Číslo celního sazebníku 90241040
Země původu AT
Test force range 0.5 - 187.5 kg (4.9 - 1839 N)
Tool Positions 5 (toolchanger)
Software Qpix T2
Height adjustment manual / spindle
Test height 250 mm
Throat depth 238 mm
Test table ø 100 mm
Traverse path -
Max. workpiece weight "unlimited"
Weight of basic device 132 kg
Test sequence fully automated / electronic force application
Camerasystem / Image transfer 5 MP ethernet industrial standard
Operating system / Harddrive Windows 10 IoT / 128 GB SSD
Ports 1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI
Lenses XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x
Field of view (acc. to equipment) 0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2)
Additional optioins QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc.
