Qcut 600 BOT - Automatická metalografická pila s 5ti osami řezání



Qcut 600 BOT - Automatická metalografická pila s 5ti osami řezání.

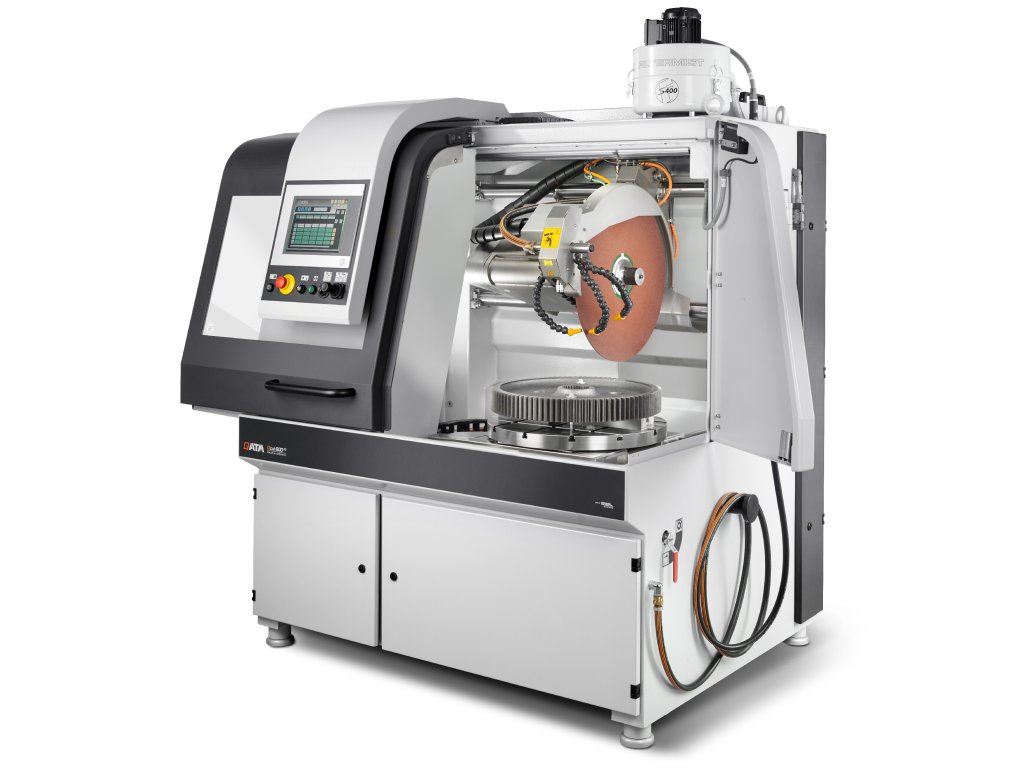

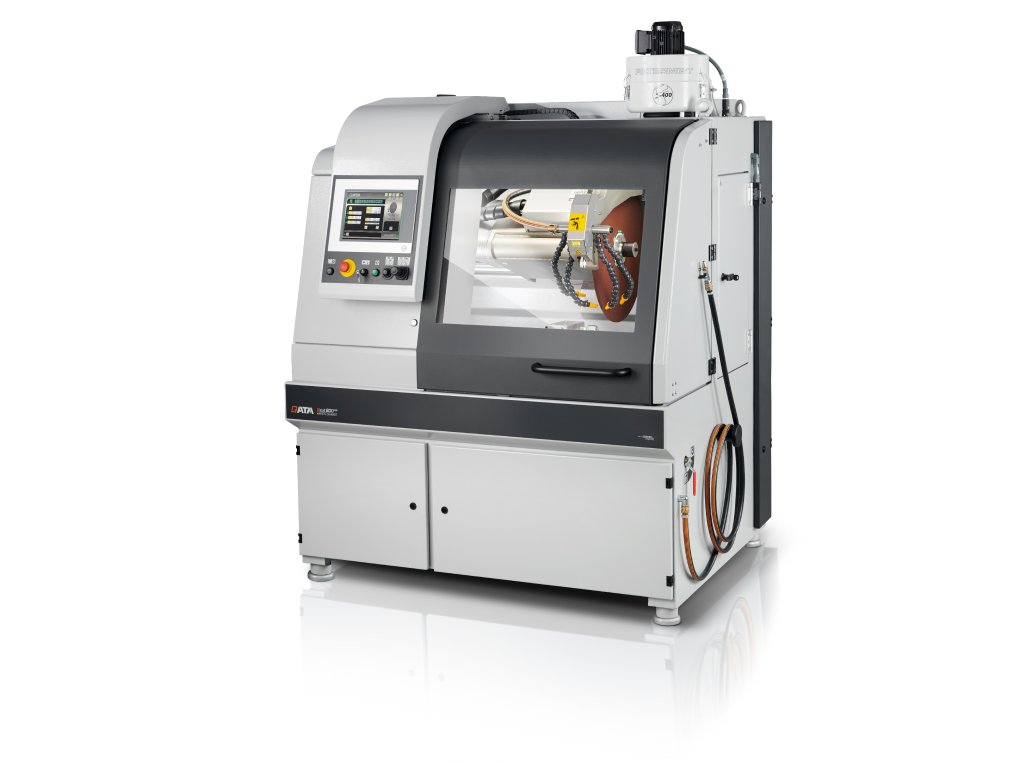

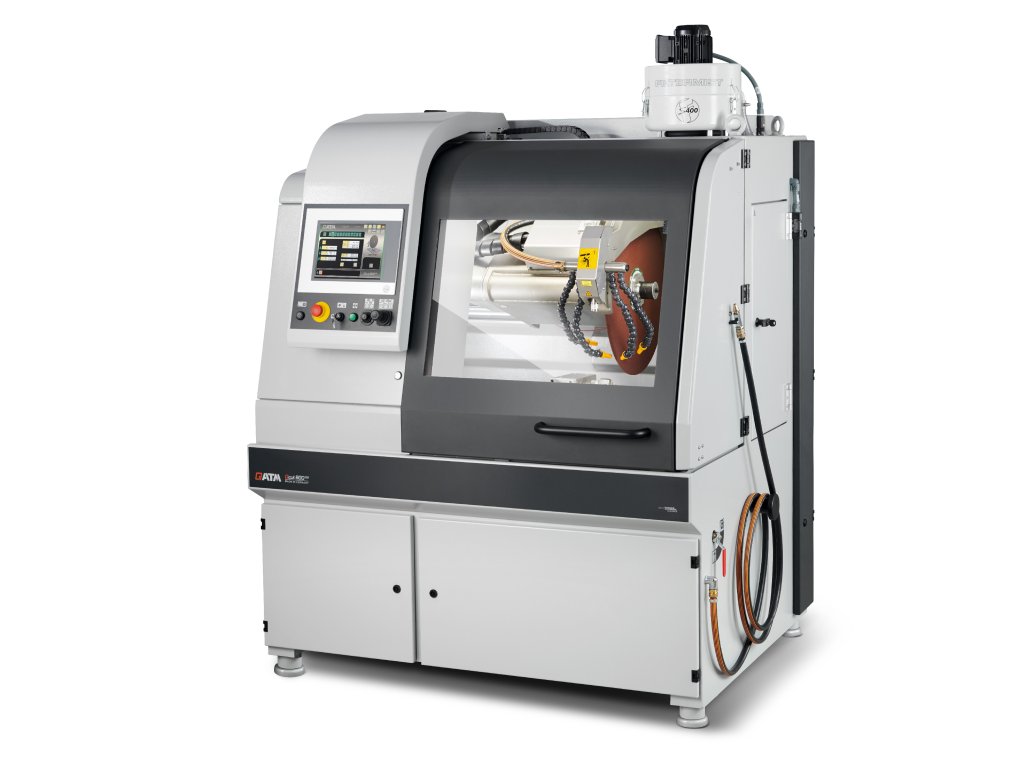

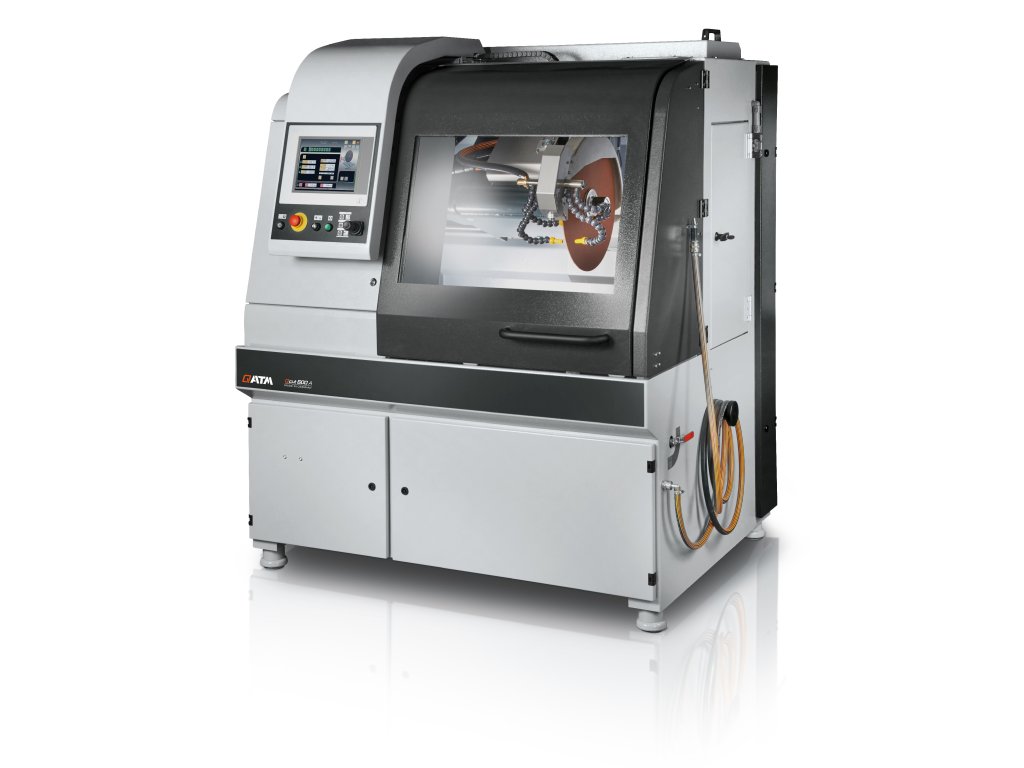

The Qcut 600 BOT is a fully automatic cutting robot with max. 5 axes for the use of cutting discs with a size of up to 610 mm / 24“.

The Qcut 600 BOT cutting robot opens up new possibilities with its 5 axes (X-, Y-, Z-, B-, C-axis) and the generously sized machine table (Ø 600 mm) opens up new application possibilities. The automatic travel (X-axis) and cross-cut (Y-axis) reach speeds of up to 80 mm/sec thanks to its highly dynamic drives.

CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Značka QATM
Kategorie Podlahové rozbrušovací pily
Zvolte variantu
Kód produktu M1831001 Varianta stroje: Qcut 600 BOT (4-osy) Dostupnost produktu na dotaz
Kód produktu M1831003 Varianta stroje: Qcut 600 BOT (5-os) Dostupnost produktu na dotaz


Qcut 600 BOT - Automatická metalografická pila s 5ti osami řezání.



BROŽURY, VIDEA



The Qcut 600 BOT is a fully automatic cutting robot with max. 5 axes for the use of cutting discs with a size of up to 610 mm / 24“.

The Qcut 600 BOT cutting robot opens up new possibilities with its 5 axes (X-, Y-, Z-, B-, C-axis) and the generously sized machine table (Ø 600 mm) opens up new application possibilities. The automatic travel (X-axis) and cross-cut (Y-axis) reach speeds of up to 80 mm/sec thanks to its highly dynamic drives.

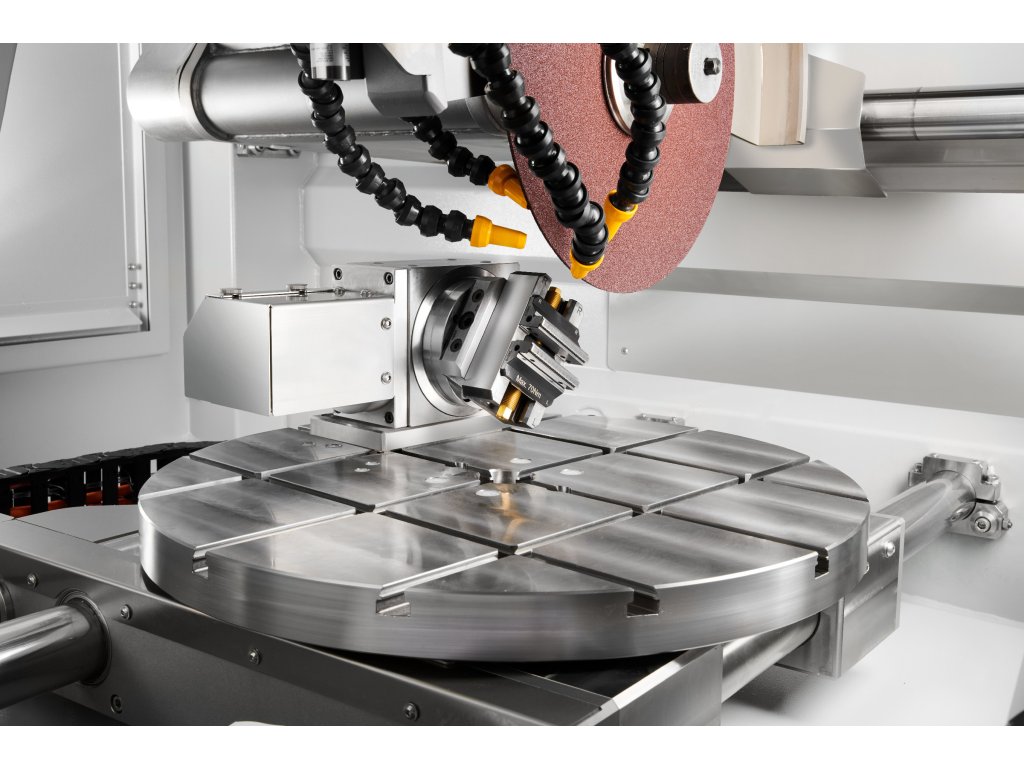

The rotary table (B-axis) has a swivelling range of 360° and can be modularly extended with an additional rotary axis (C-axis - swivel range of combined axes: B-axis: ±200° / C-axis 360°).

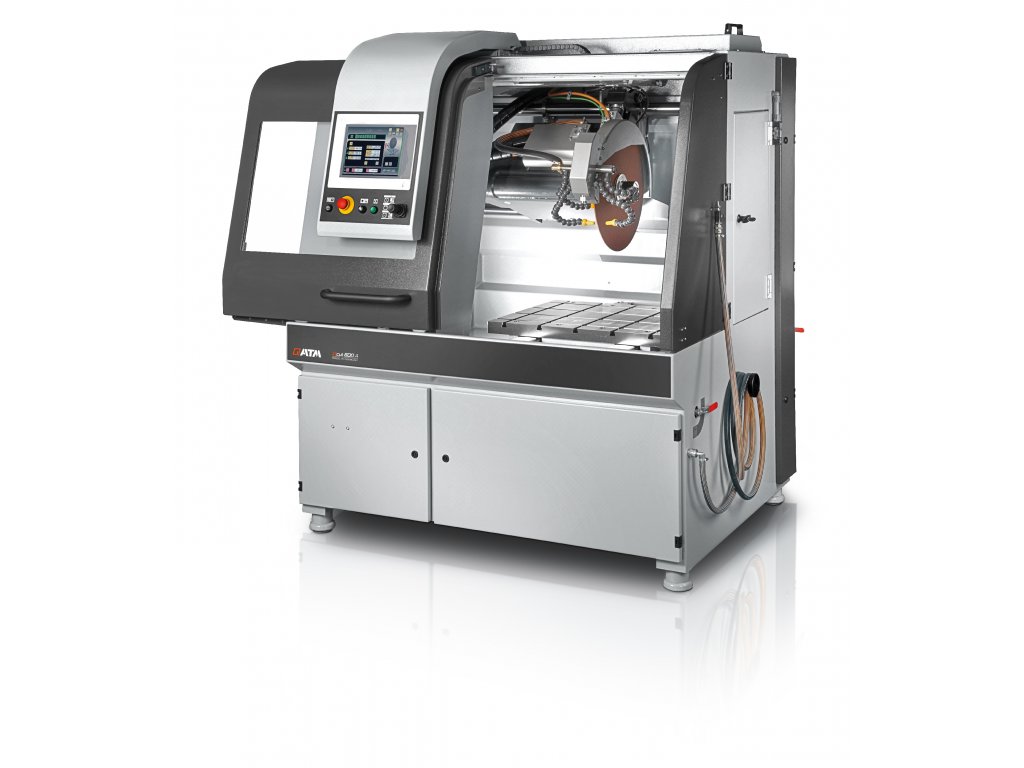

The cut-off wheel guard is guided in parallel during the chop cut to increase the cutting capacity of the cut-off wheel. The large sliding and side door, with safety lock when the cutting disc moves, ensures the best possible access to the large machine table.

Recirculation cooling and automatic central lubrication are integrated in the machine body of the robust steel construction. The Qcut 600 BOT can also be equipped with a belt filter unit as an alternative to the recirculating cooling unit.

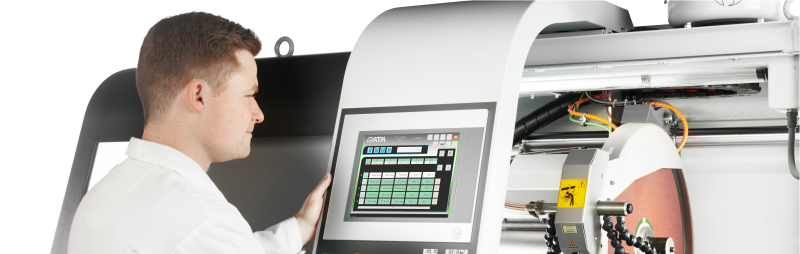

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing g


POPIS PŘÍSTROJE:



  • Highest degree of automation with dynamic cut-off wheel measurement and automatic adjustment of the cutting parameters
  • Visual menu guidance for easy programming
  • Any number of cut-offs with different components can be cut in one process
  • Complex cutting sequences made easy - the rotation of the machine table eliminates the need for timeconsuming reclamping of the workpieces (patented)
  • Expandable with additional rotary axis that can be adapted modularly
  • Unlimited clamping possibilities with individually tailored solutions
  • Generous access to the separation room

FEATURES



Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing a

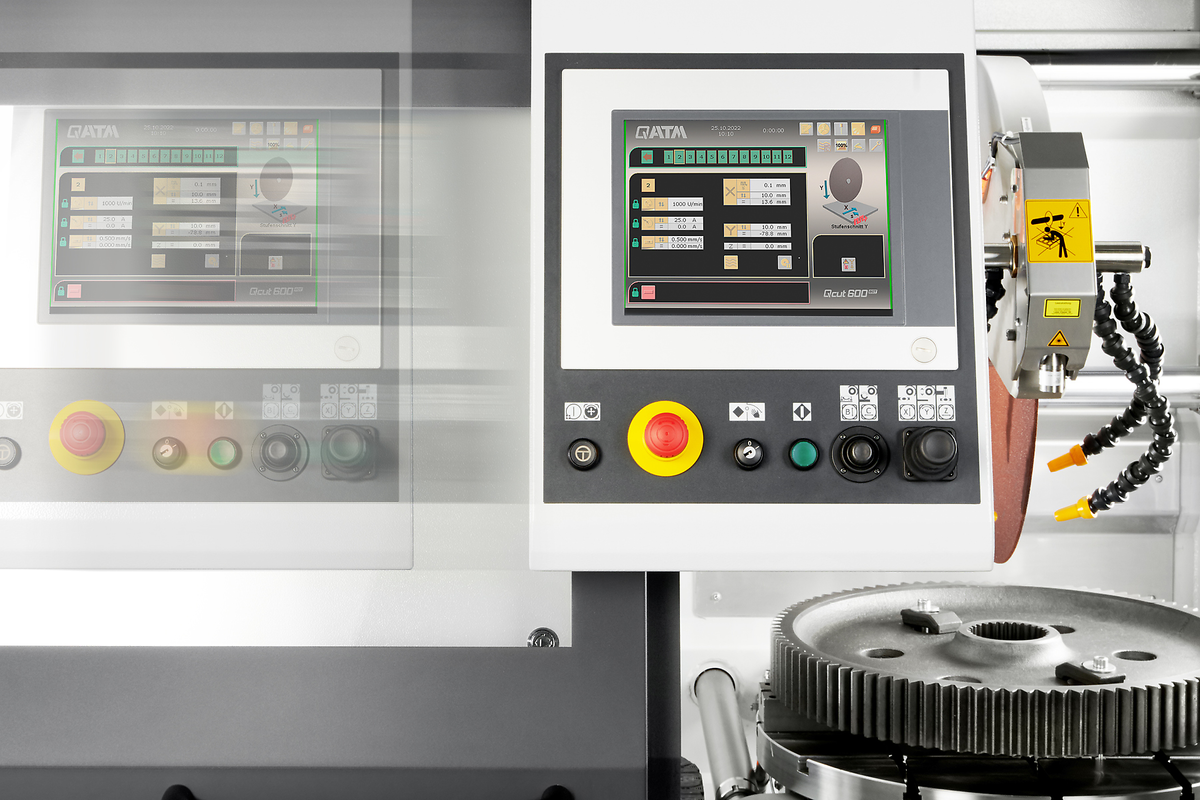

INTUITIVE AND EASY OPERATION

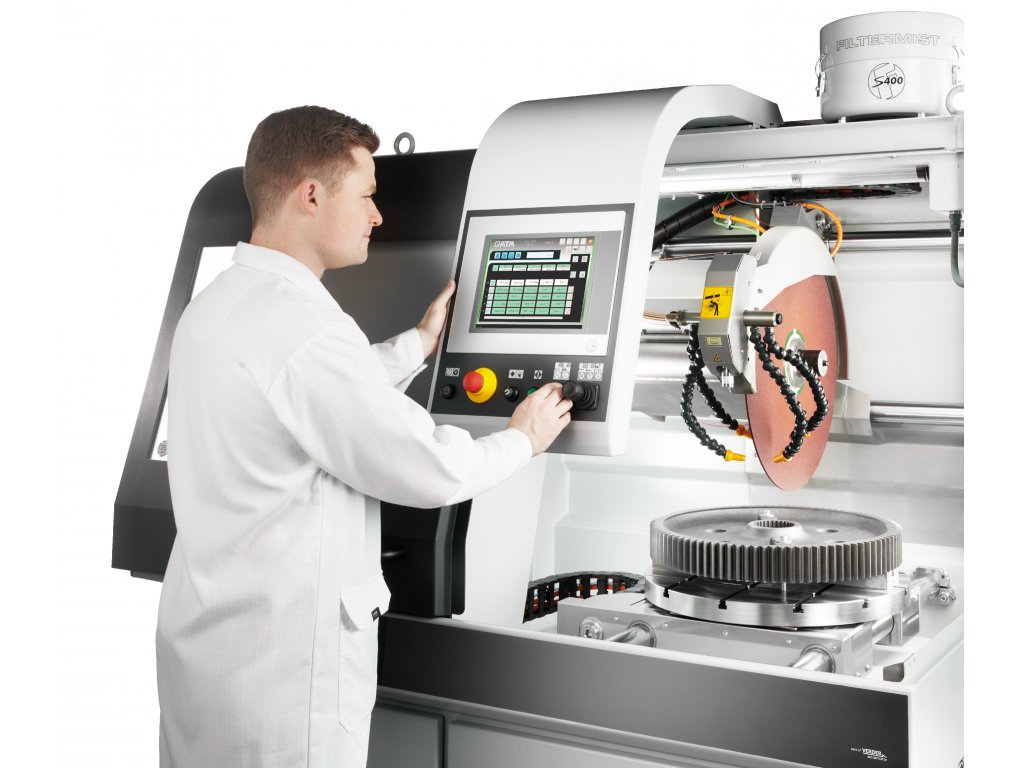

The teach-in function enables user-friendly programming of the of the cutting positions by approaching the individual positions. The multi-position process MPP allows the simultaneous positioning and automatic start-up of different components on the clamping table. This eliminates the need for timeconsuming reclamping of the components.

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing b



AUTOMATIC CUT-OFF WHEEL MEASUREMENT



The dynamic cut-off wheel measurement leads to reproducible cutting results with consistent quality. By automatically monitoring the current cut-off wheel diameter, the cutting parameters are adjusted after each cut so that the cutting speed and cutting depth remain constant.

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing c

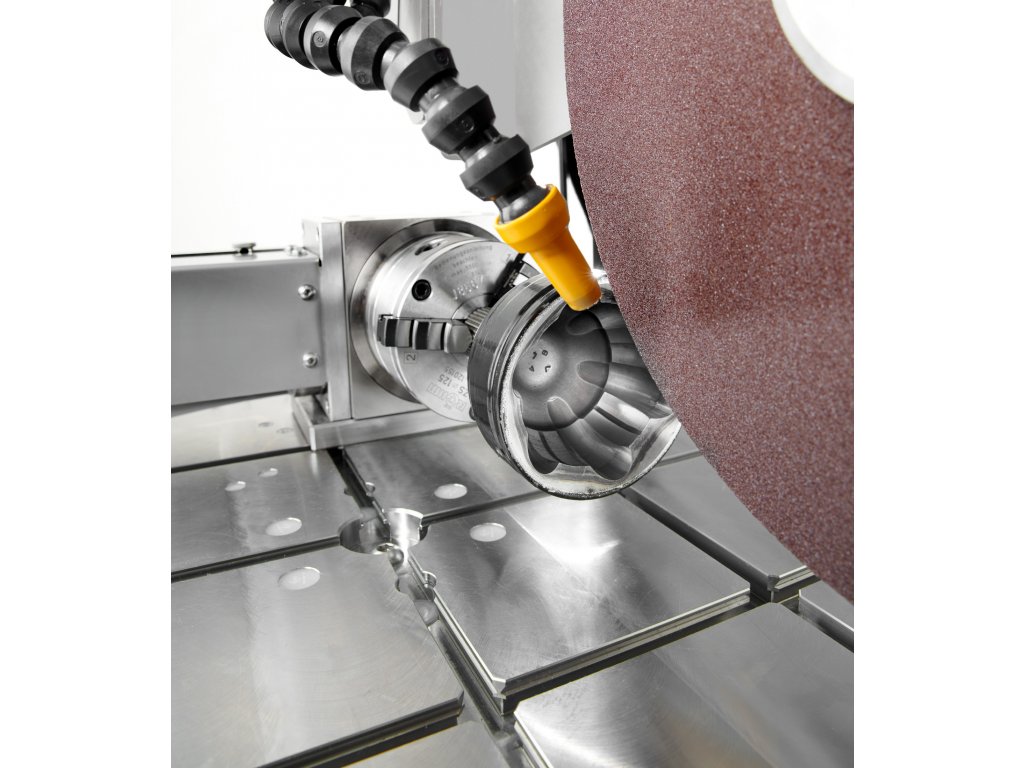

CUTTING OPTIMISATION



In order to optimise the cutting quality, the machine automatically detects local material singularities, such as hardened areas, and regulates the feed rate depending on the cutting force. When starting a new cut, the component is automatically detected and approached at reduced speed (soft start-up control).

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing d

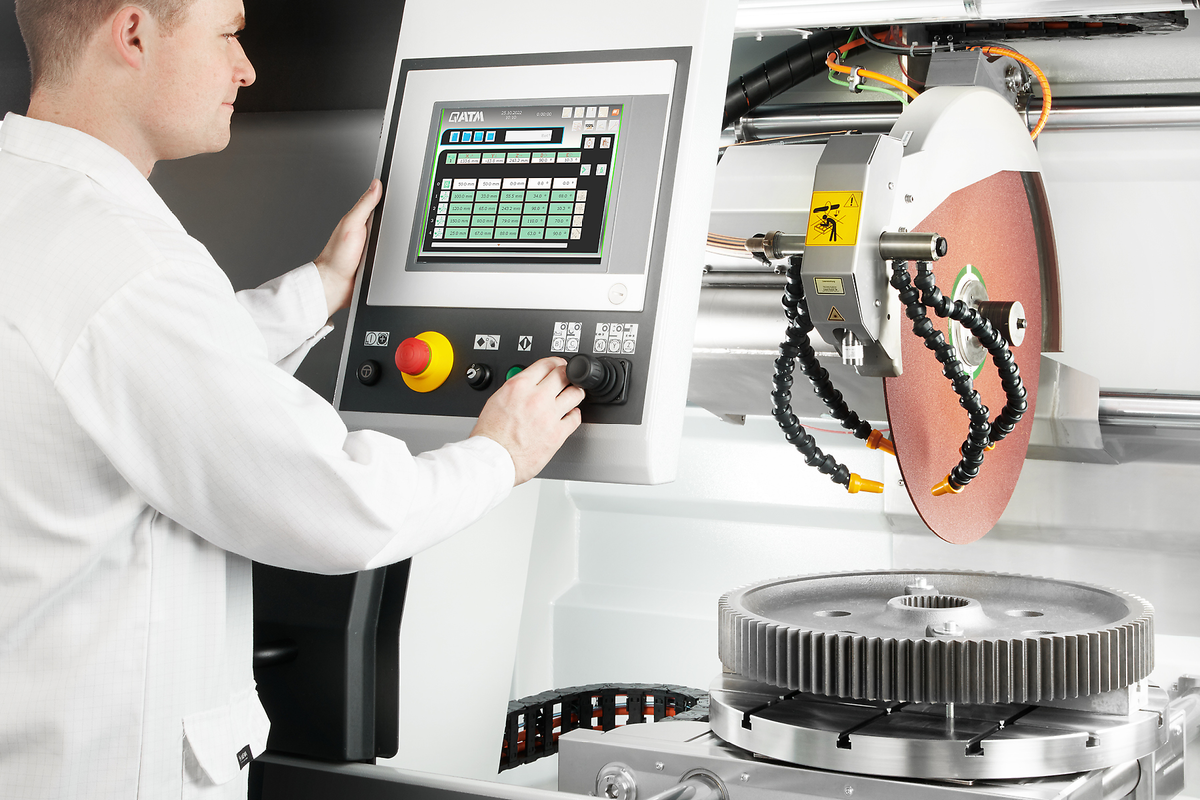

REMOTE MAINTENANCE



Direct fault diagnosis and online support from QATM can be provided via a VPN connection using an existing broadband internet connection.

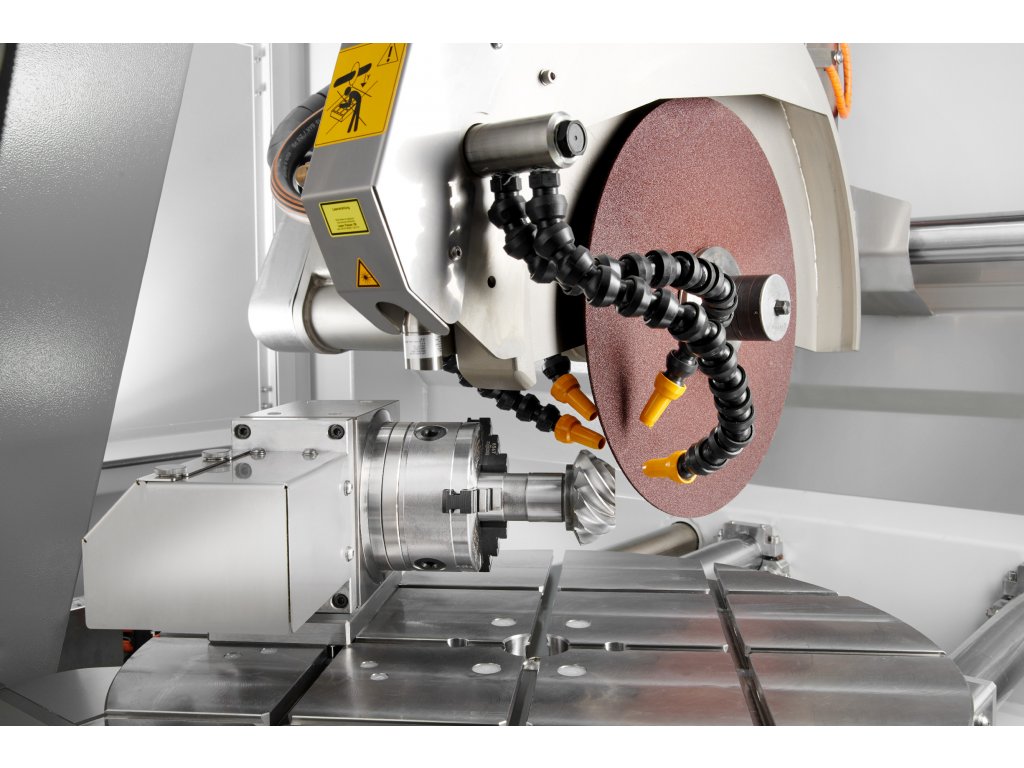

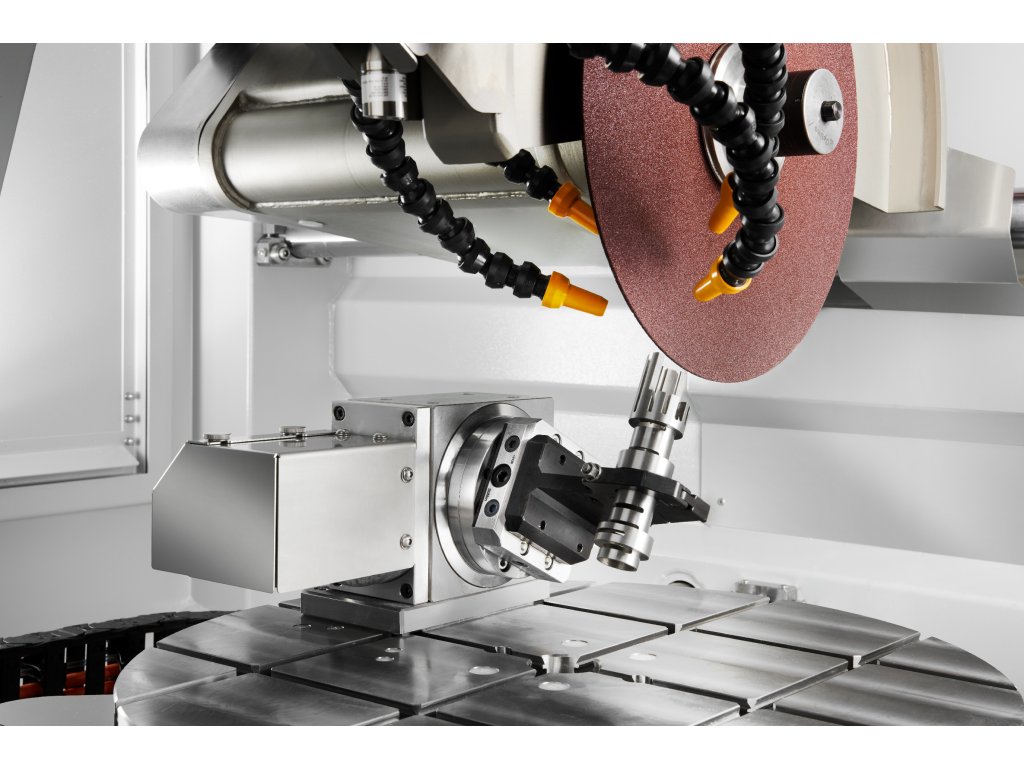

ADDITIONAL ROTARY AXISUNLIMITED CLAMPING POSSIBILITIES

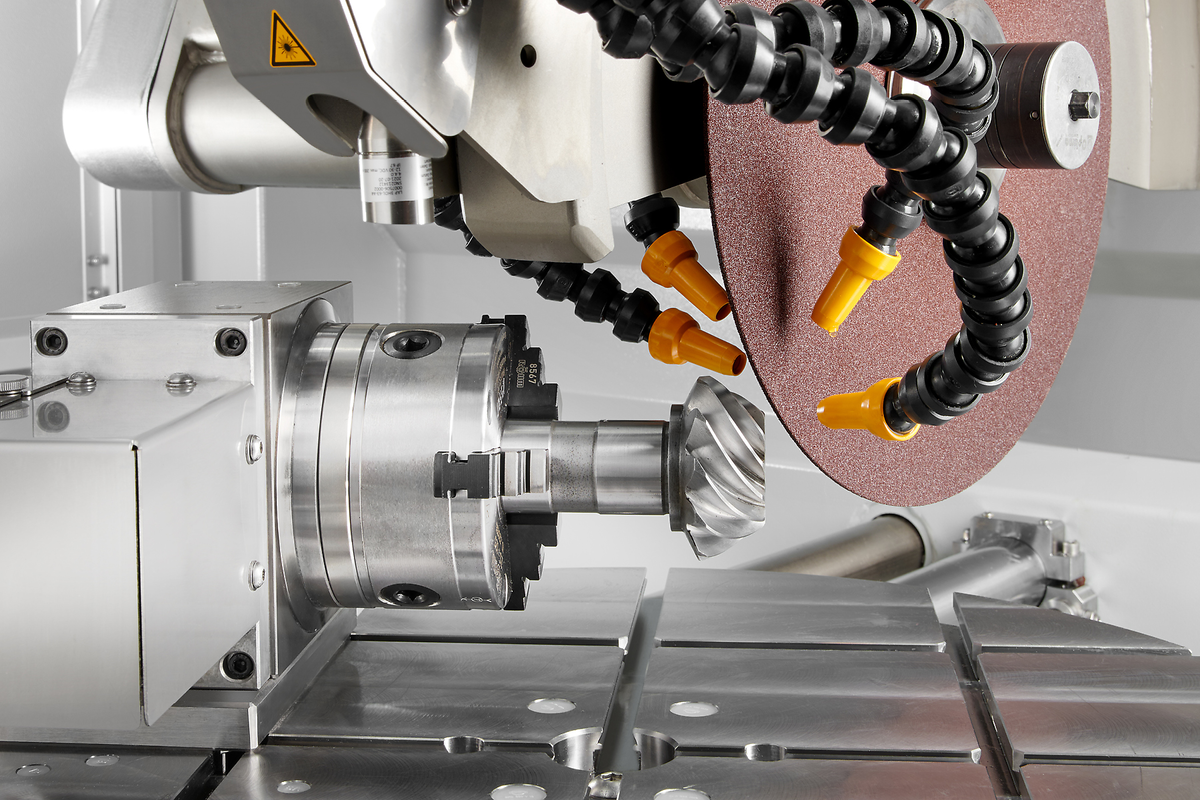

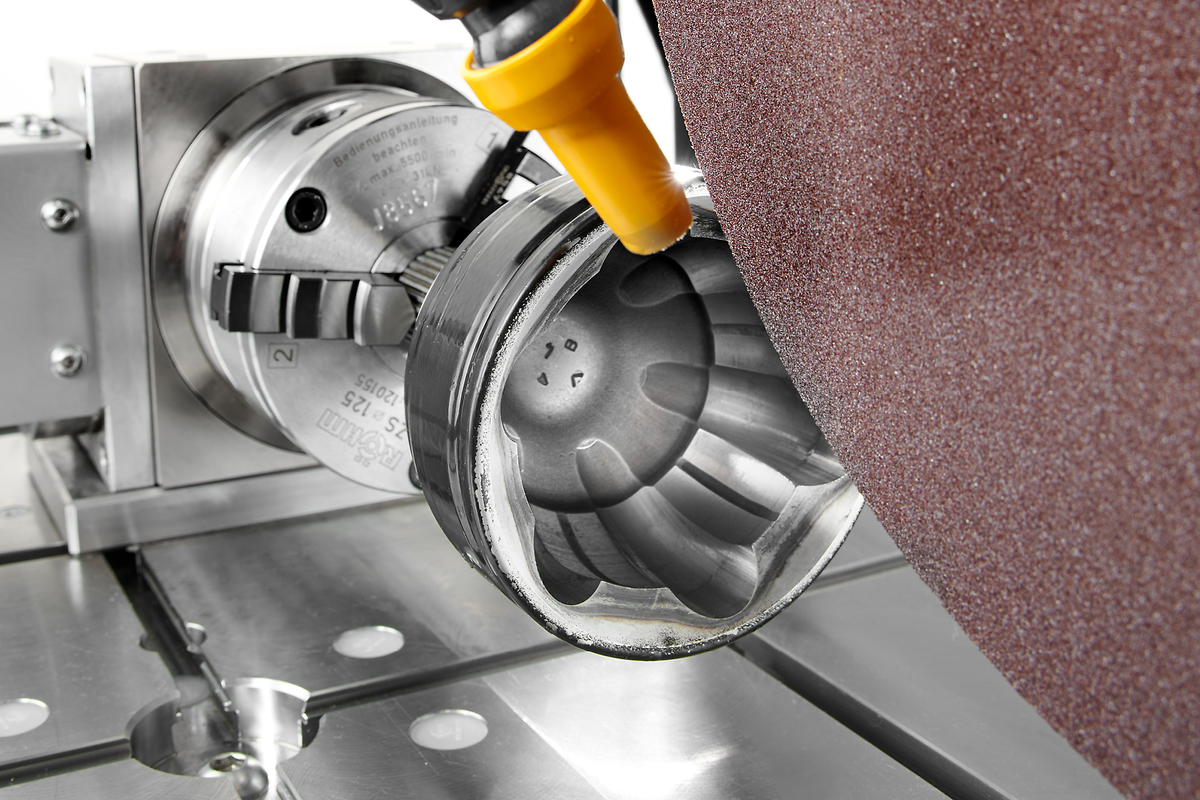

The modular C-axis on the table opens up new possibilities to precisely position complex components. The patented solution of combined rotary axes eliminates the need for time-consuming reclamping and the use of additional clamping tools.

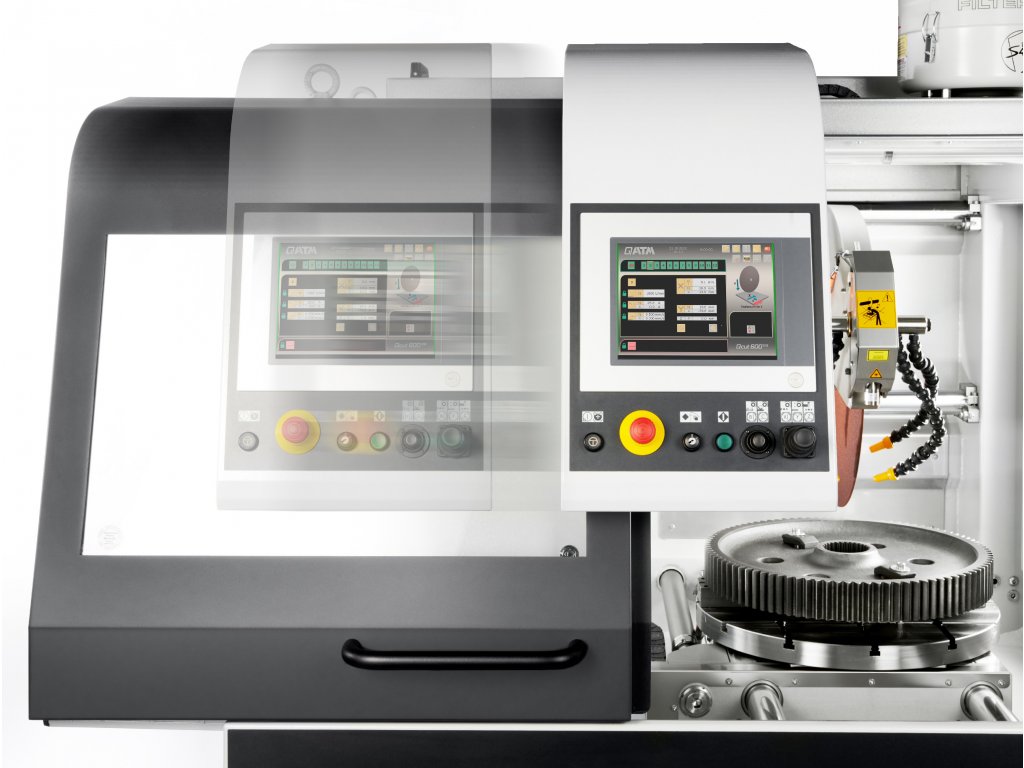

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing h

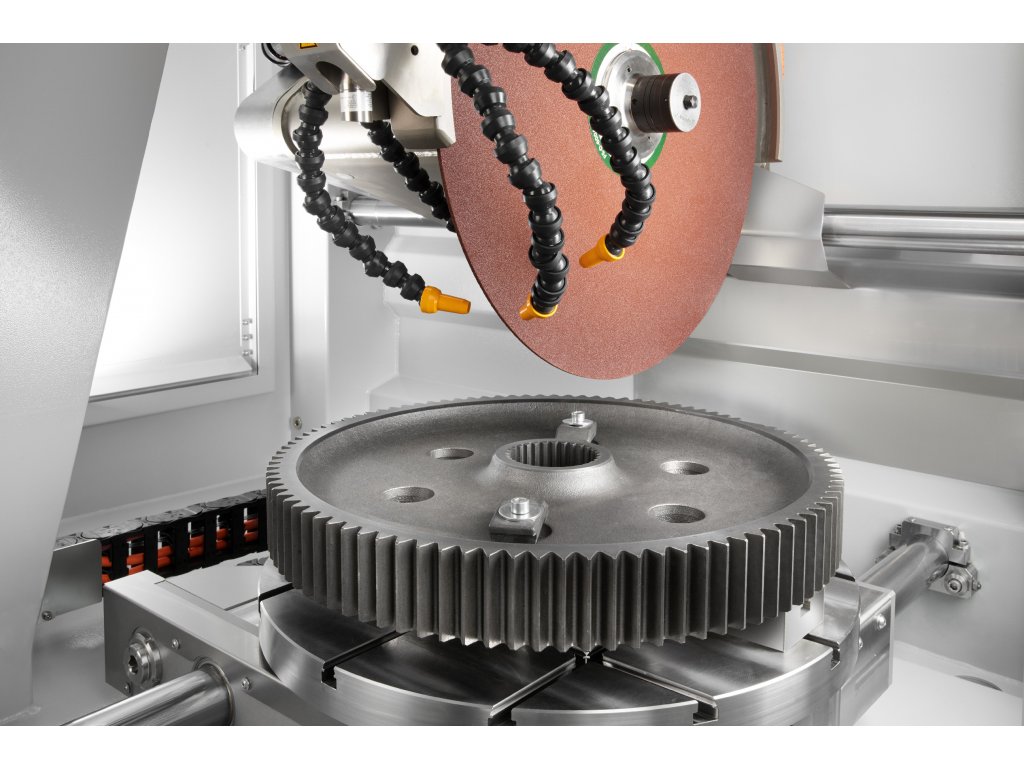

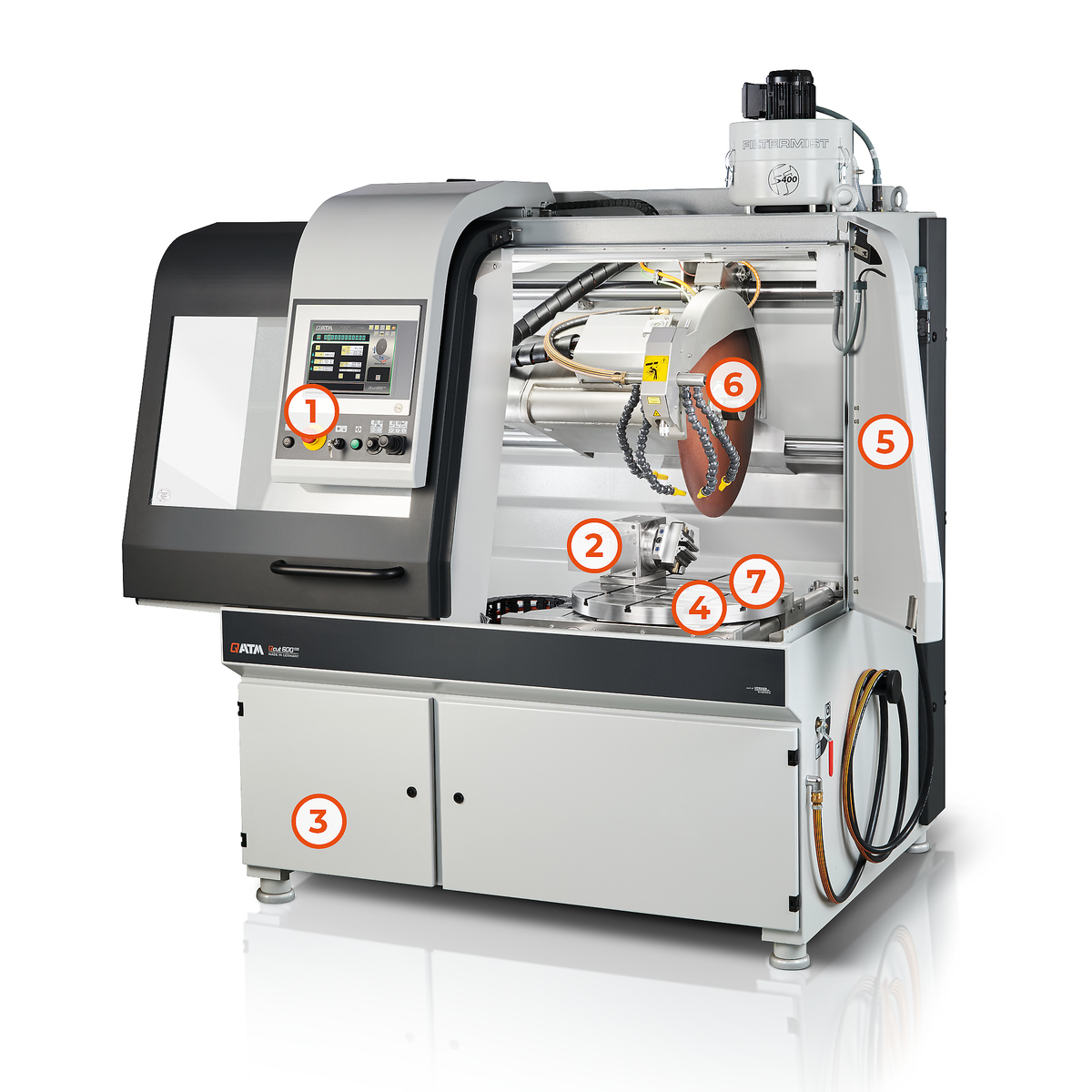

CUTTING WITHOUT RESTRICTIONS

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing e

1. Ergonomic control panel



  • Large 12.1“ TFT touch display
  • Two joysticks for manual operation
  • The sliding display enables clear working

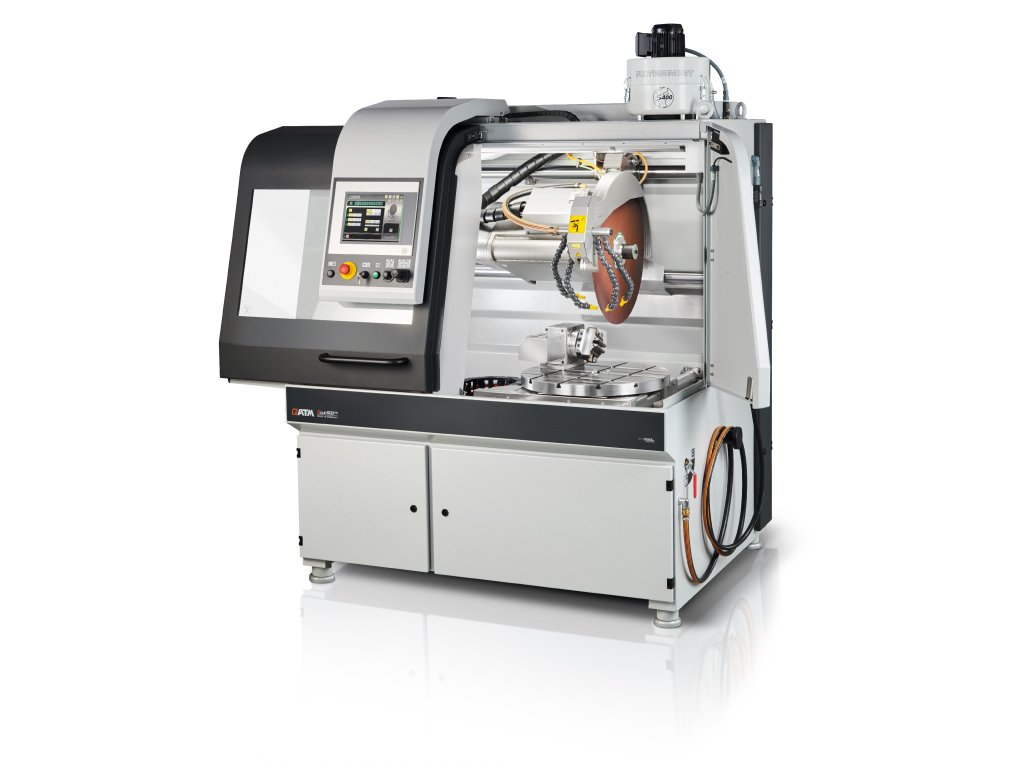

2. Optional axis of rotation


C-axis

  • Rotation range max. 360°
  • Modularly removable rotary axis
  • Clamping possibility can be individually extended with lathe chuck or other clamping devices

3. Robust machine body



  • With integrated recirculating cooling and automatic central lubrication

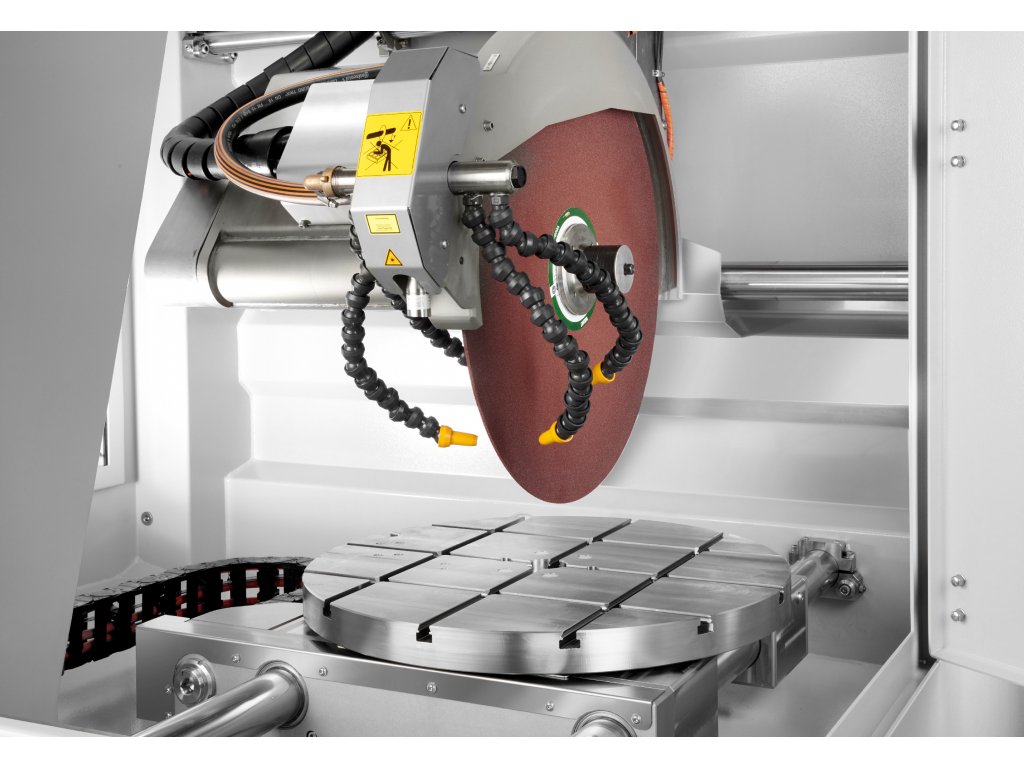

4. Large machine table



  • Axes can be precisely positioned and fixed vibration-free in the cutting process
  • Diameter: 600 mm
  • Load capacity: 150 kg
  • Travel: X/Z-axis: 550 mm

5. Side door



  • Swivel door for free access to the cutting chamber
  • Change of cutting disc via side door possible

6. Automatic cut-off wheel measurement



  • Dynamic adjustment of the cutting parameters for optimum results
  • Ideal utilization of the cutting space due to innovative transverse infeed via the swivel arm

7. Rotational axis


B-axis

  • Rotation range 360°
  • Rotation range with combined C-axis 200°
  • Positioning accuracy: ±0.1°

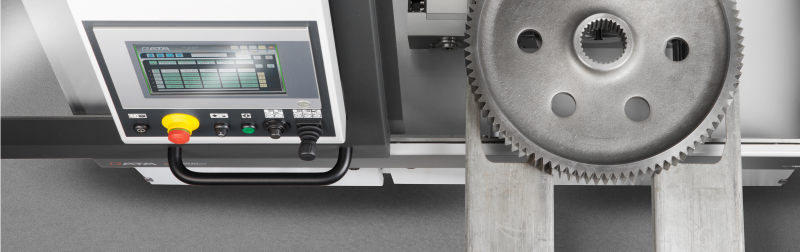

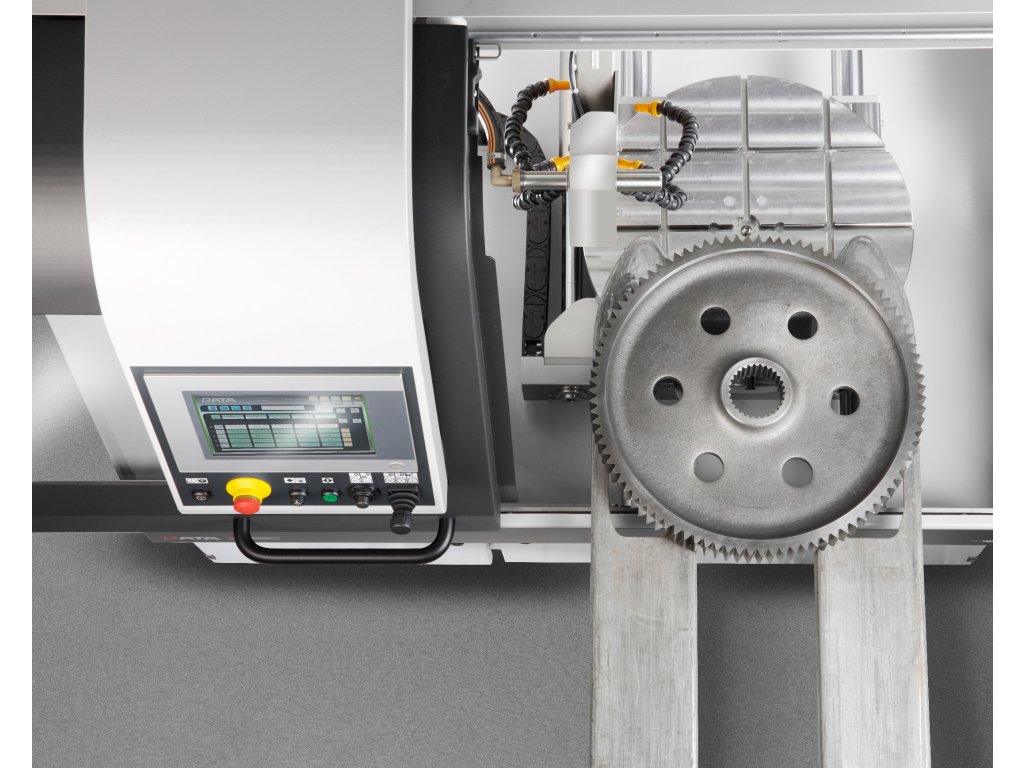

FREE ACCESSIBILITY

FOR LARGE WORKPIECES

Large components can be placed directly by forklift or crane via the wide sliding door.



Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing i

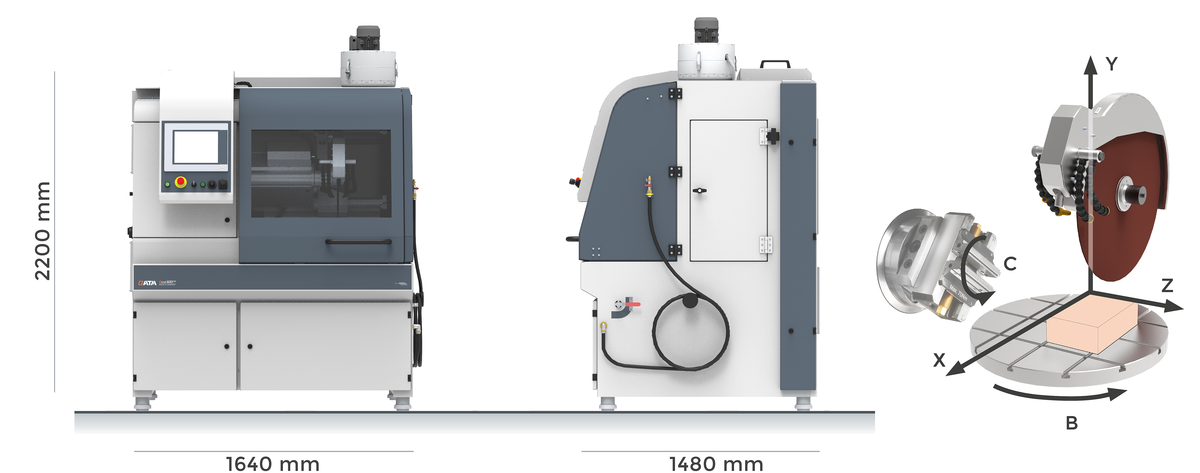

PARAMETRY:

Qcut 600 BOT_Automatická metalografická pila s 5-ti osami řezání Metalco Testing f



Dělící kotouč

do ø 610 mm / 24"

Max. velikost vzorku

244 mm (ø řezného kotouče 610 mm)

Velikost příruby

Ø 32/40 mm

X-osa automatická

550 mm

Y-osa automatická

360 mm

Z-osa automatická

550 mm

B-osa

4 osy: 360° , 5 os: 200°

C-osa

4 osy: - , 5 os: 360°

Přesnost Z-osa

0.1 mm

Stůl

ø 600 mm, nerez

T-drážky

12 mm

Rychlost otáček

nastavitelné 1000-2400 ot./min.

Napájení

30 kVA

Výkon motoru (hl. pohon)

15 kW, S1

Š x V x H

1640 x 2200 x 1480 mm

Hmotnost

~ 1600 kg (dle modifikace)


 BROŽURY:

pdf Brožura Qcut 600 BOT - Automatická metalografická pila s 5ti osami řezání (943.9 kB)
pdf Produktový list Qcut 600 BOT - Automatická metalografická pila s 5ti osami řezání (435.7 kB)
pdf Brožura upínací prvky (2.1 MB)



pdf OSTATNÍ BROŽURY KE STAŽENÍ...


 VIDEA:



OSTATNÍ VIDEA KE SHLÉDNUTÍ.....

Číslo celního sazebníku 84615090
Země původu DE
Dělící kotouč do ø 610 mm / 24"
Max. velikost vzorku 244 mm (ø řezného kotouče 610 mm)
Velikost příruby Ø 32/40 mm
X-osa automatická 550 mm
Y-osa automatická 360 mm
Z-osa automatická 550 mm
B-osa 4 osy: 360° , 5 os: 200°
C-osa 4 osy: - , 5 os: 360°
Přesnost Z-osa 0.1 mm
Stůl ø 600 mm, nerez
T-drážky 12 mm
Rychlost otáček nastavitelné 1000-2400 ot./min.
Napájení 30 kVA
Výkon motoru (hl. pohon) 15 kW, S1
Š x V x H 1640 x 2200 x 1480 mm
Hmotnost ~ 1600 kg (dle modifikace)
