Multifunkční tribometr MFT-3000



MULTIFUNKČNÍ TRIBOMETR MTF-3000



Všestranný modulární univerzální tribometr



CENY SPOTŘEBNÍHO MATERIÁLU SE VÁM ZOBRAZÍ PO REGISTRACI

Dostupnost Cena dle konfigurace na dotaz
Kód produktu RTECMTF3000
Značka RTEC
Kategorie MULTIFUNKČNÍ TRIBOMETRY


MULTIFUNKČNÍ TRIBOMETR MTF-3000

Všestranný modulární univerzální tribometr



BROŽURY, VIDEA



Modular MFT-3000 bench top tribometer. Patented dual sensors technology. Wear and mechanical property analysis across nano, micro, and macro range.


POPIS PŘÍSTROJE:



  • Patented dual load sensor technology
  • Load Range Nano, Micro, Macro
  • -50 °C to 1000 °C
  • Modular with Interchangeable Modules

The state-of-the art Multi Function Tribometer MFT-3000 is a versatile and technologically advanced bench top tribometer. With next generation patented dual force sensor technology, it generates friction tests from nano to macro test range with great accuracy. With ultra high resolution, high speeds, and a wide environmental control range, several tribological applications possible with ease.




A BENCH TOP TRIBOMETER LIKE NO ORTHER

A dual sensor tribomter like no other. Customizable for your needs.

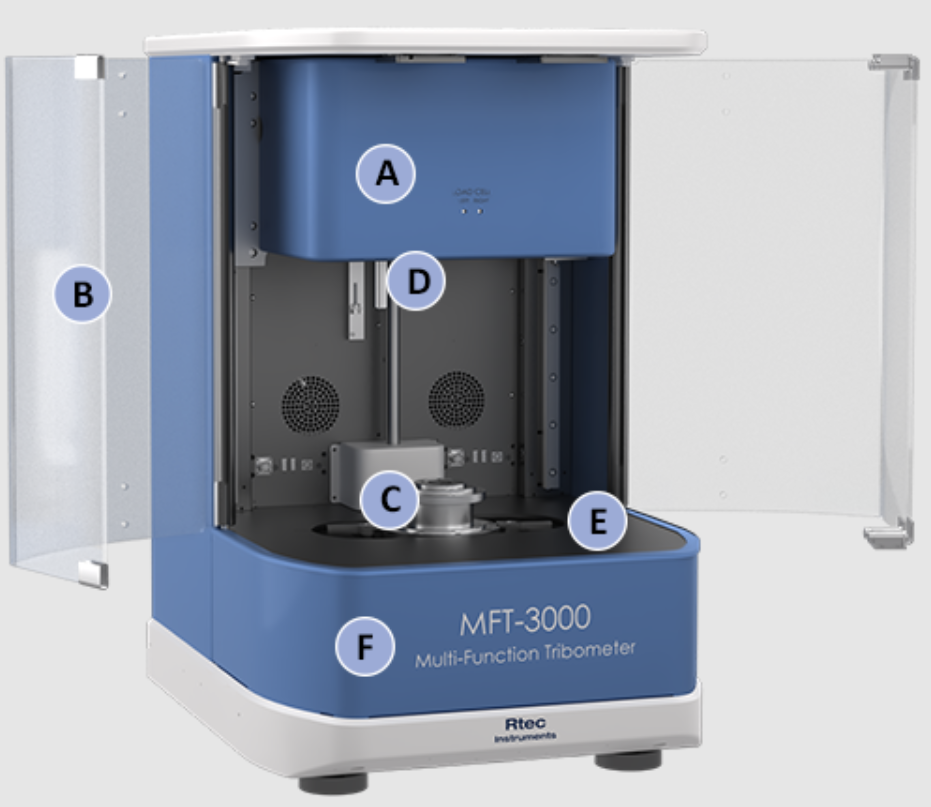

  Platform

Rigid heavy duty construction design to conduct tribology tests on a bench top design



  Environmental
control


Wide temperature (-50 °C to 1000 °C), humidity (5 to 95% RH), tribocorrosion and many more chambers available on the same platform

  Lower Interchangeable Test Module

Interchangeable fast-exchange test modules





MTF3000_univerzalni_tribometr_rtec_Metalco_testing a

  Dual Force Sensor


Dual simultaneous mounted patented range sensors from mN to 3000 N.



  X Stage

High precision 150 mm X stage to move test modules automatically



  Data Acquisition, Motion Controller


Advanced high speed, low noise, multiple channel, fast feedback and highest data acquisition rate (200KHz) controllers









INTERCHANGEABLE MODULES

Multiple modules are available for the XY stage:



MTF5000_univerzalni_tribometr_rtec_Metalco_testing_Rotary Drive MTF5000_univerzalni_tribometr_rtec_Metalco_testing_Reciprocating Drive

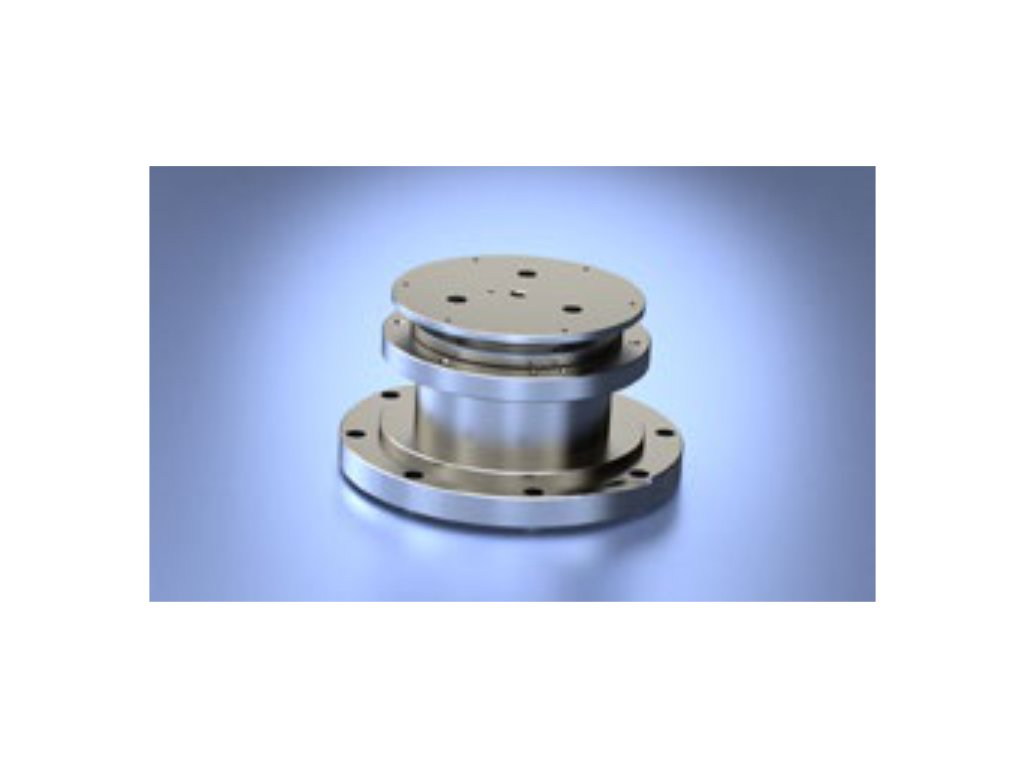

Rotary Drive

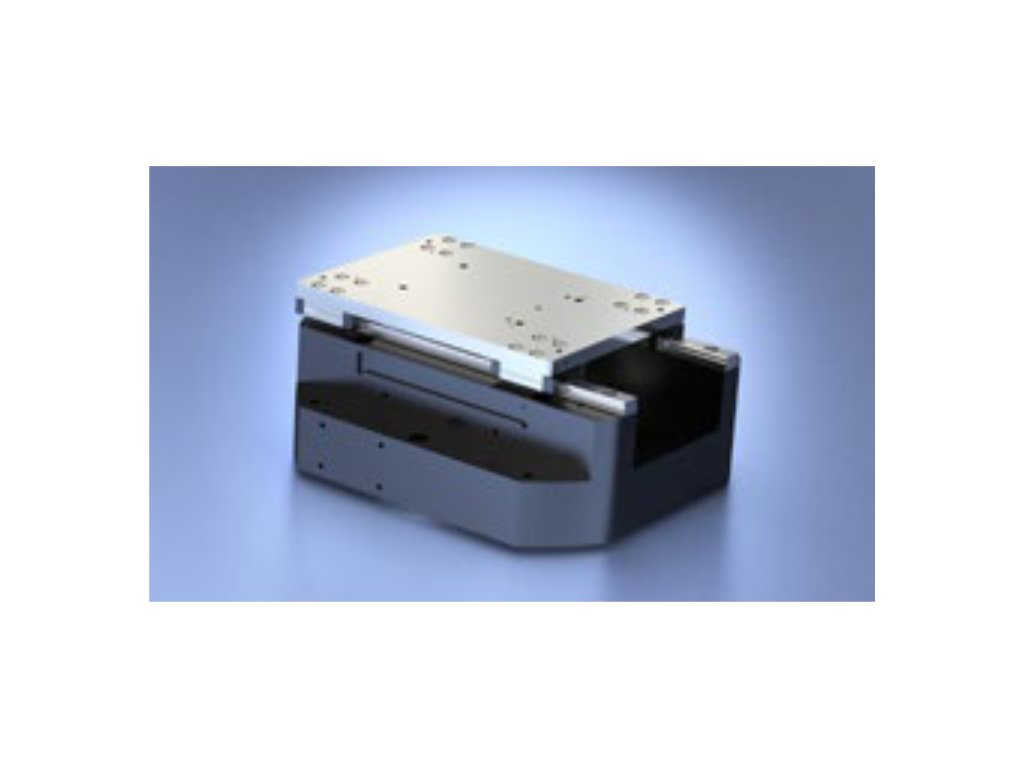

Reciprocating Drive



Pin on disk tribometer, ball on disk tribometer 0.001 – 10,000 RPM Linear reciprocating tribometer wear, pin on plate up to 80 Hz

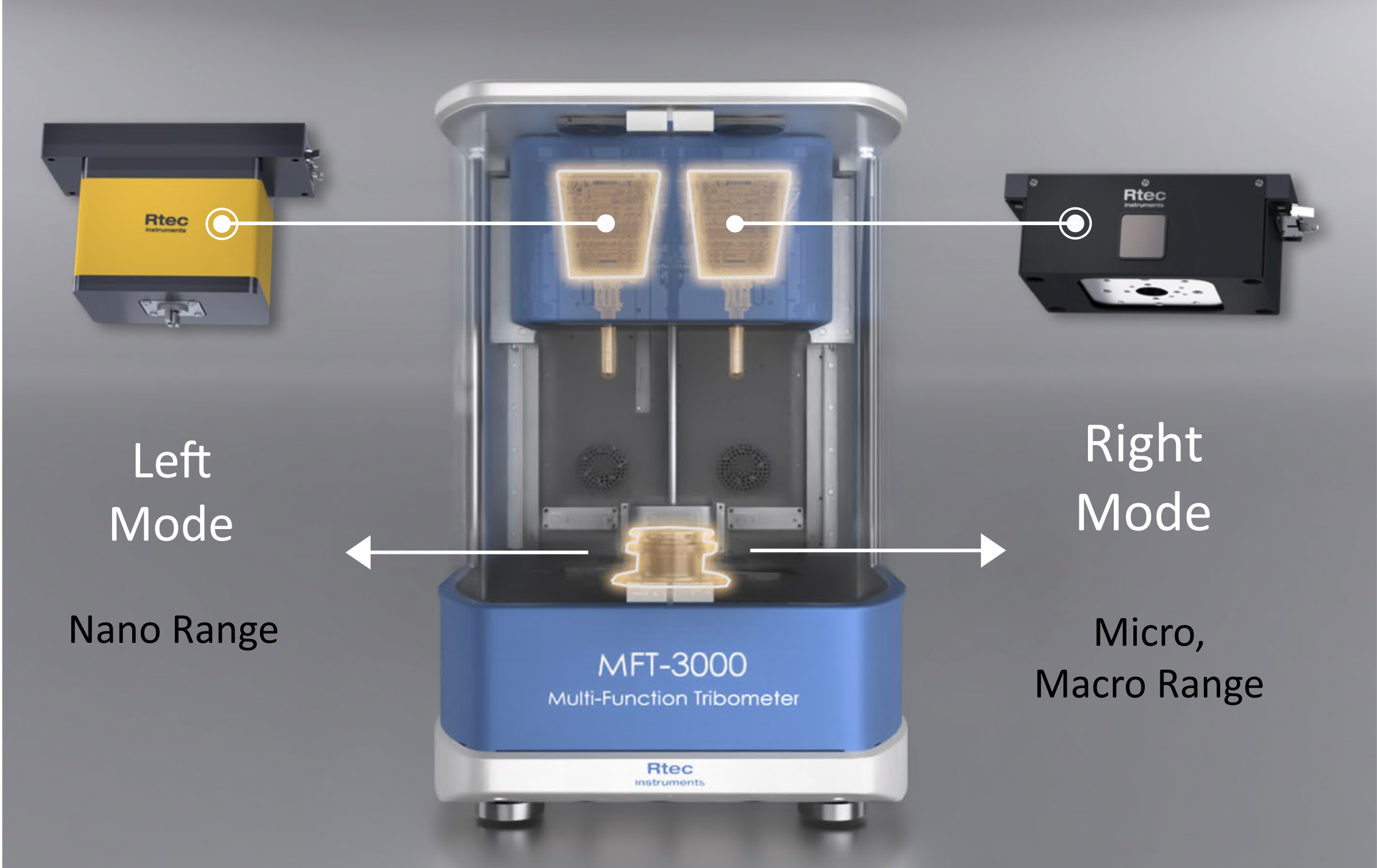

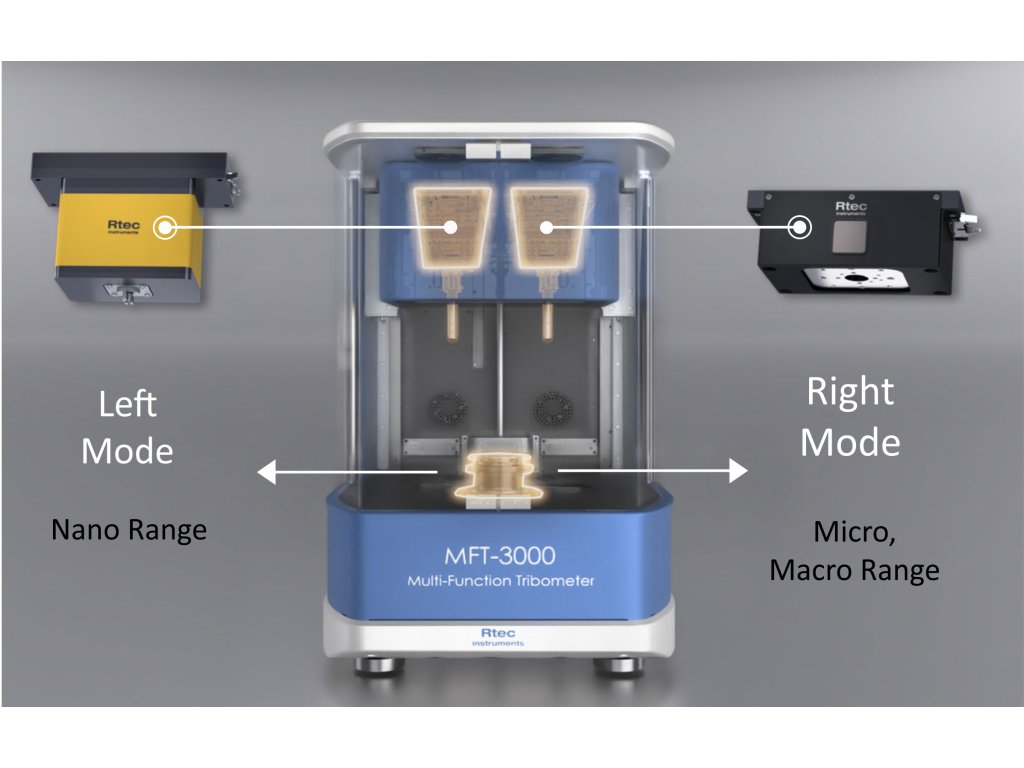

PATENTED DUAL SENSOR TECHNOLOGY



MTF3000_univerzalni_tribometr_rtec_Metalco_testing B

  • Automatically change from nano to macro force range.
  • Full range available on same setup: No removing or interchanging sensors.
  • Highest resolution across the entire range.
  • Automatic sensor recognition.






UNMATCHED LOAD CELL TECHNOLOGY

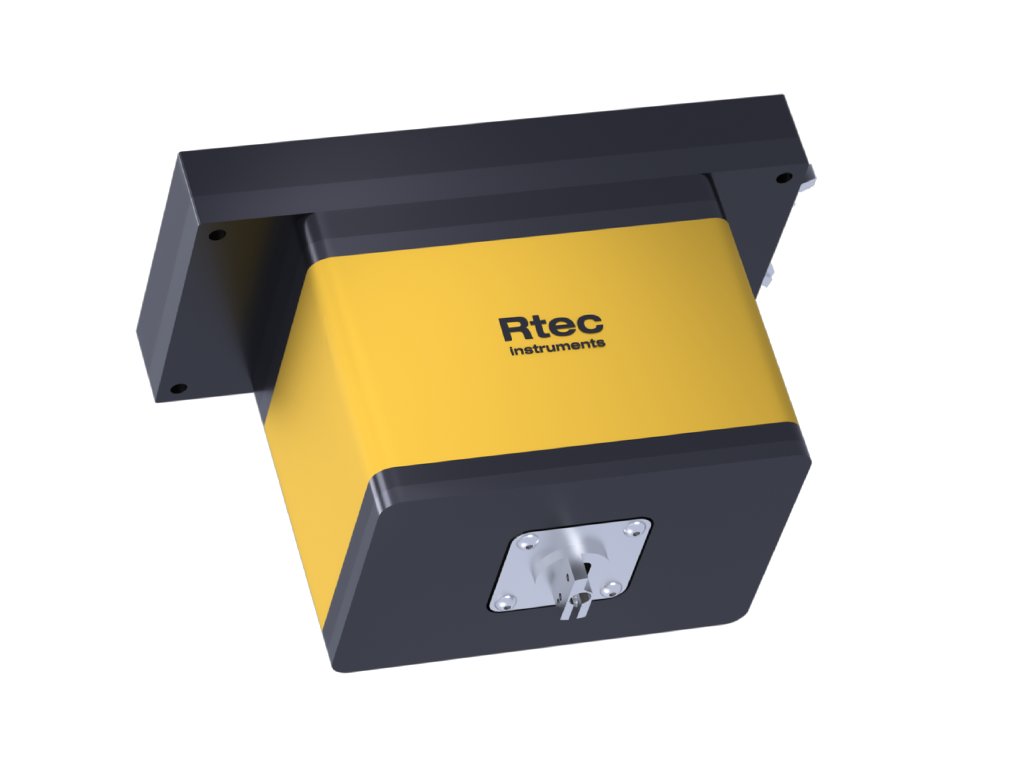

Capacitive, Piezo, And More





capacitive-sensors-for-friction-measurement-on-tribometer

The universal mechanical tester MFT-3000 has a wide range of patented load cells providing unparalleled stability and resolution. Additionally, the wide load range extends from nN to 3,000 N with easy interchangeable load cells.



MTF5000_univerzalni_tribometr_rtec_Metalco_testing Capacitive-Icon MTF5000_univerzalni_tribometr_rtec_Metalco_testing Strain-Icon
Capacitive Load
Cells

 Highest resolution load cells with rigid design

Strain Gauge Load
Cells

 Sensors with widest load range



MTF5000_univerzalni_tribometr_rtec_Metalco_testing Piezo-Icon





Piezo Load
Cells

 Highest resolution load cells with high frequency response




ENVIRONMENTAL CHAMBERS





high-temperature-rotary-chamber-tribometer-1

The friction coefficient and wear highly depend on environmental conditions. Therefore, tests should occur in conditions close to real application. MFT-3000 has a wide range of options (high temperature, corrosion, cooling, inert gas) available on the tribometer.



Contact us for more application specific information.

MTF5000_univerzalni_tribometr_rtec_Metalco_testing icon-temperature
High Heat and
Cryogenic

 Cryogenic to high temperature close loop chambers: -120 °C to 1200 °C.



MTF5000_univerzalni_tribometr_rtec_Metalco_testing Humidity-Icon





MTF5000_univerzalni_tribometr_rtec_Metalco_testing Pressure-Icons



Controlled Humidity

 Control humidity from 5 to 95% RH to simulate real-life scenarios.

Environment

 Salt Spray, tribocorrosion, inert gas chambers for various applications.






BROŽURY:

pdf BROŽURA Multifunkční tribometr MTF-3000 (794.8 kB)

pdf OSTATNÍ BROŽURY KE STAŽENÍ...


VIDEA:



 Metalco_testing rtec



 OSTATNÍ VIDEA KE SHLÉDNUTÍ:

Hmotnost 0.1 kg
